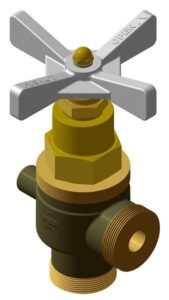

6GP81-2 – Brass Angle Hose Valve
6GP81-2 – Brass Angle Hose Valve6gp81-half-side-100x1006gp81-6gn81-6gsc81drawing-100x100
6GP81-2

6GP81-2 – Brass Angle Hose Valve

Print Icon Print Download Icon Download PDF

Specification

  • Approx Dimension B Closed In: '4-15/32
  • Approx Dimension B Open In: '4-29/32
  • Approx Dimension D In: '3-1/2
  • CPV-O-Seal: '381
  • C: '1-5/8
  • Material: Bronze Body
  • Mil Spec: Mil-V-24109
  • References: Technical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
  • Thread Size E: '1-3/8"-12

Specification Table

Approx Dimension B Closed In'4-15/32
Approx Dimension B Open In'4-29/32
Approx Dimension D In'3-1/2
CPV-O-Seal'381
C'1-5/8
MaterialBronze Body
Mil SpecMil-V-24109
ReferencesTechnical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
Thread Size E'1-3/8"-12
