6GN82-7

6GN82-7 – Brass Angle Hose Valve

Print Icon Print Download Icon Download PDF

Specification

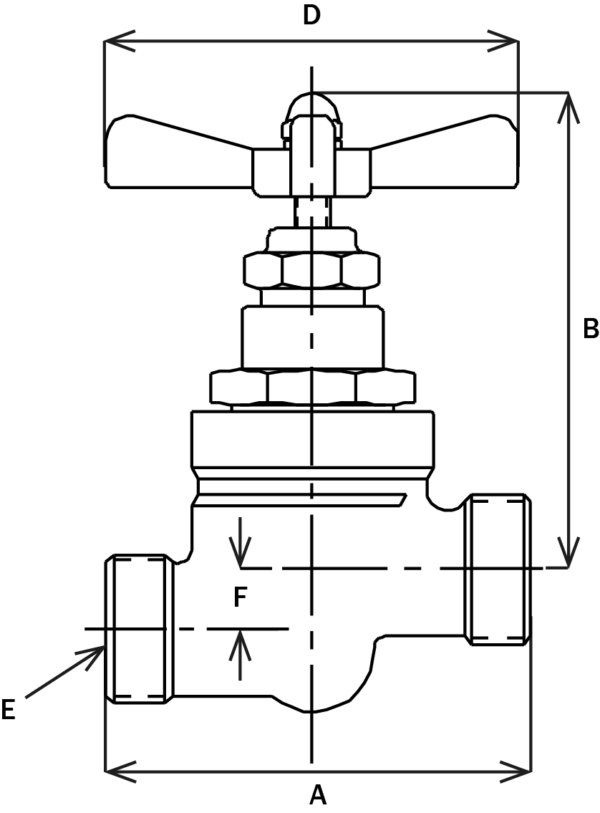

  • Approx Dimension B Closed In: 9-1/2''
  • Approx Dimension B Open In: 10-3/8''
  • Approx Dimension D In: 11-1/2''
  • CPV-O-Seal: 482''
  • F: 1-3/4''
  • Material: Bronze Body
  • References: Technical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
  • Thread Size E: 3-1/16"-12''

Specification Table

Approx Dimension B Closed In9-1/2''
Approx Dimension B Open In10-3/8''
Approx Dimension D In11-1/2''
CPV-O-Seal482''
F1-3/4''
MaterialBronze Body
ReferencesTechnical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
Thread Size E3-1/16"-12''
