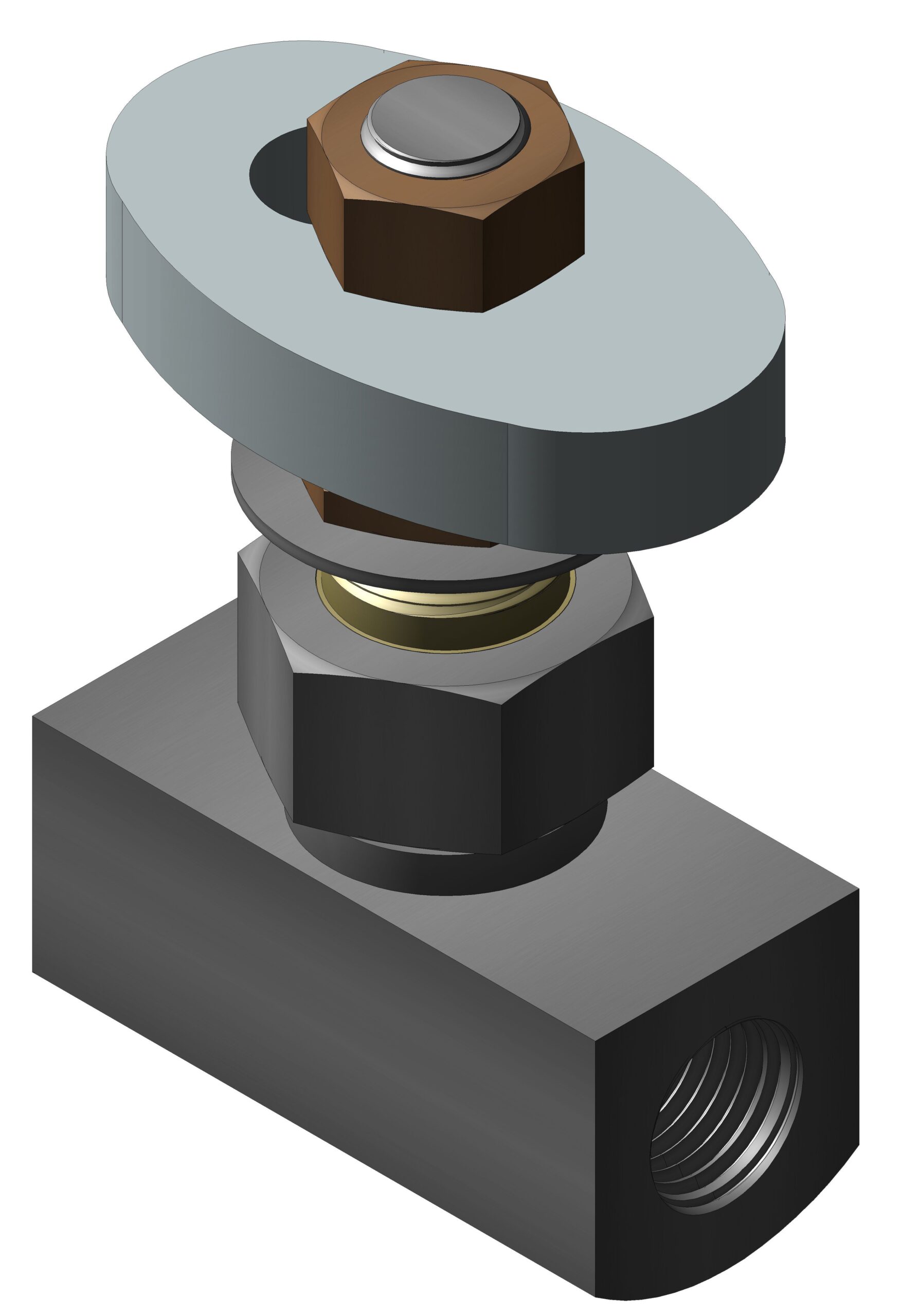

6GN393

6GN393 – Female Union x Female Union

Print Icon Print Download Icon Download PDF

Specification

  • Application: High Corrosion Resistant (Monel) – Hydraulic (System Fluid) High Corrosion Resistant (Monel) – Wog (System Fluid) Standard (Stainless Steel) – Hydraulic (System Fluid) High Corrosio
  • Body Type: Inline
  • Inlet Connection: 1/4" Npt Female''"
  • Outlet Connection: 1/4" Npt Female''
  • References: Technical Products Valves Instrumentation & Adapters Valve Information (Catalog 1220).Pdf
  • Stem Condition: Solid
  • Type 1: Needle
  • Working Pressure Psi: 6
  • Notes: Additional Configurations Are Available For Special Applications Please Contact Our Sales Department With Your Requirements.

Specification Table

ApplicationHigh Corrosion Resistant (Monel) – Hydraulic (System Fluid) High Corrosion Resistant (Monel) – Wog (System Fluid) Standard (Stainless Steel) – Hydraulic (System Fluid) High Corrosio
Body TypeInline
Inlet Connection1/4" Npt Female''"
Outlet Connection1/4" Npt Female''
ReferencesTechnical Products Valves Instrumentation & Adapters Valve Information (Catalog 1220).Pdf
Stem ConditionSolid
Type 1Needle
Working Pressure Psi6
NotesAdditional Configurations Are Available For Special Applications Please Contact Our Sales Department With Your Requirements.
