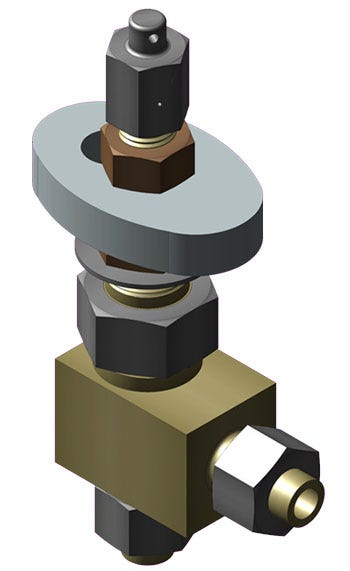

6gn381 wholeiso
6gn381 wholeiso6gn381_drawing_1-100x100
6GN381

6GN381 – Female Union x Female Union

Print Icon Print Download Icon Download PDF

Specification

  • Application: High Corrosion Resistant (Monel) – Hydraulic (System Fluid) High Corrosion Resistant (Monel) – Wog (System Fluid) Non-Magnetic (Stainless Steel) – Wog (System Fluid) Standard (Stain
  • Body Type: Angle
  • Inlet Connection: 9/16"-18 Male Union End With Nut & Tailpiece''
  • Outlet Connection: 9/16"-18 Male Union End With Nut & Tailpiece''"
  • References: Technical Products Valves Instrumentation & Adapters Valve Information (Catalog 1220).Pdf
  • Type 1: Needle
  • Working Pressure Psi: 6
  • Notes: Additional Configurations Are Available For Special Applications Please Contact Our Sales Department With Your Requirements.

Specification Table

ApplicationHigh Corrosion Resistant (Monel) – Hydraulic (System Fluid) High Corrosion Resistant (Monel) – Wog (System Fluid) Non-Magnetic (Stainless Steel) – Wog (System Fluid) Standard (Stain
Body TypeAngle
Inlet Connection9/16"-18 Male Union End With Nut & Tailpiece''
Outlet Connection9/16"-18 Male Union End With Nut & Tailpiece''"
ReferencesTechnical Products Valves Instrumentation & Adapters Valve Information (Catalog 1220).Pdf
Type 1Needle
Working Pressure Psi6
NotesAdditional Configurations Are Available For Special Applications Please Contact Our Sales Department With Your Requirements.
