6C47-20 – Sil-Braze Couplings – Tube Size
6C47-20 – Sil-Braze Couplings – Tube Size6c47-16-cut-side6c47drawing-1
6C47-20

6C47-20 – Sil-Braze Couplings – Tube Size

Print Icon Print Download Icon Download PDF

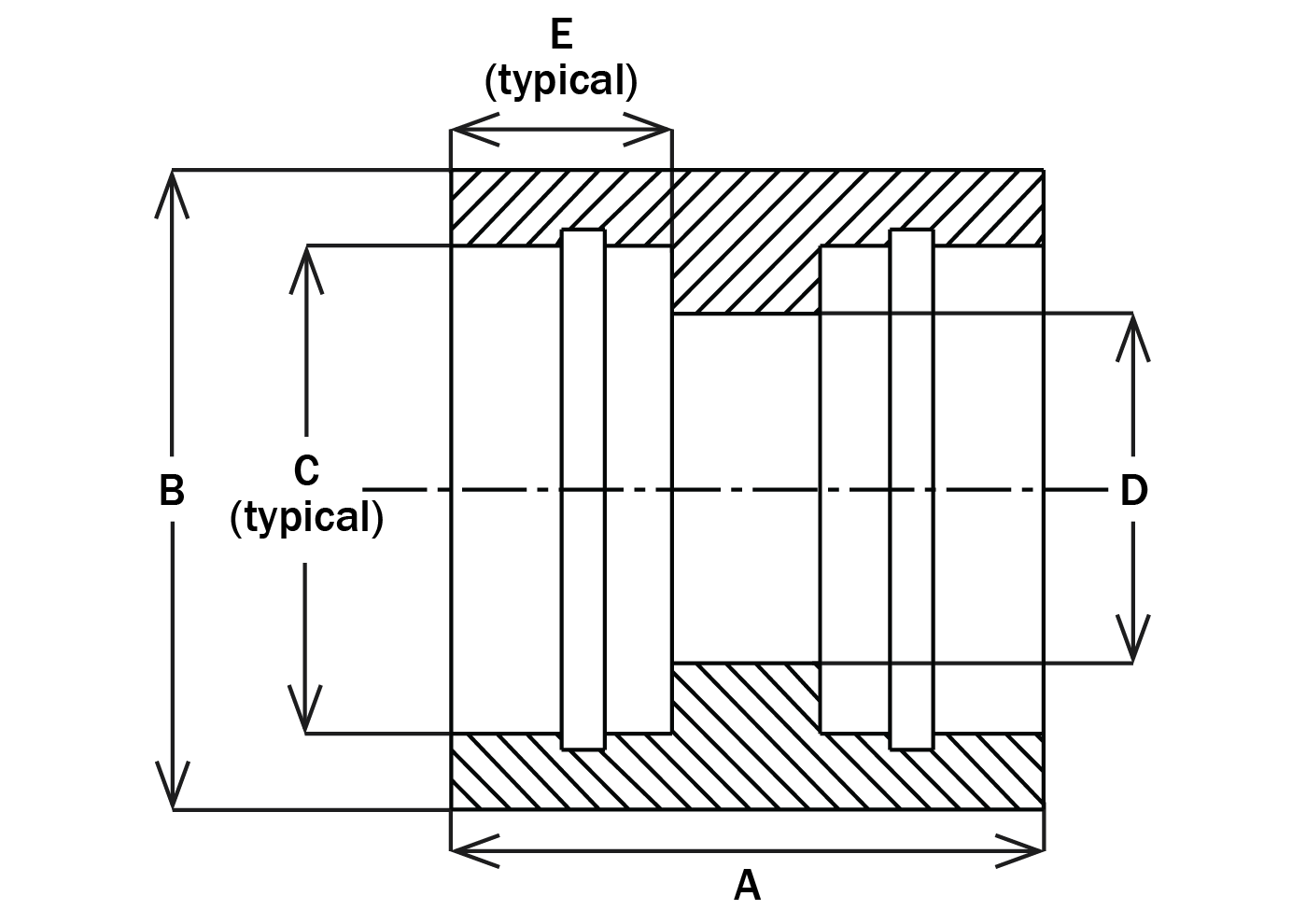

Specification

  • CPV-O-Seal: -47
  • A: 2-1/2
  • B: 1-3/4
  • C: 1.253
  • D: 0.91
  • E: 13/16
  • Tube Size: 1-1/4

Specification Table

CPV-O-Seal-47
A2-1/2
B1-3/4
C1.253
D0.91
E13/16
Tube Size1-1/4
