6C46-16 – Socket Weld Couplings – Tube Size
6C46-16 – Socket Weld Couplings – Tube Size6c46drawing6c107-5-16-cutside
6C46-16

6C46-16 – Socket Weld Couplings – Tube Size

Print Icon Print Download Icon Download PDF

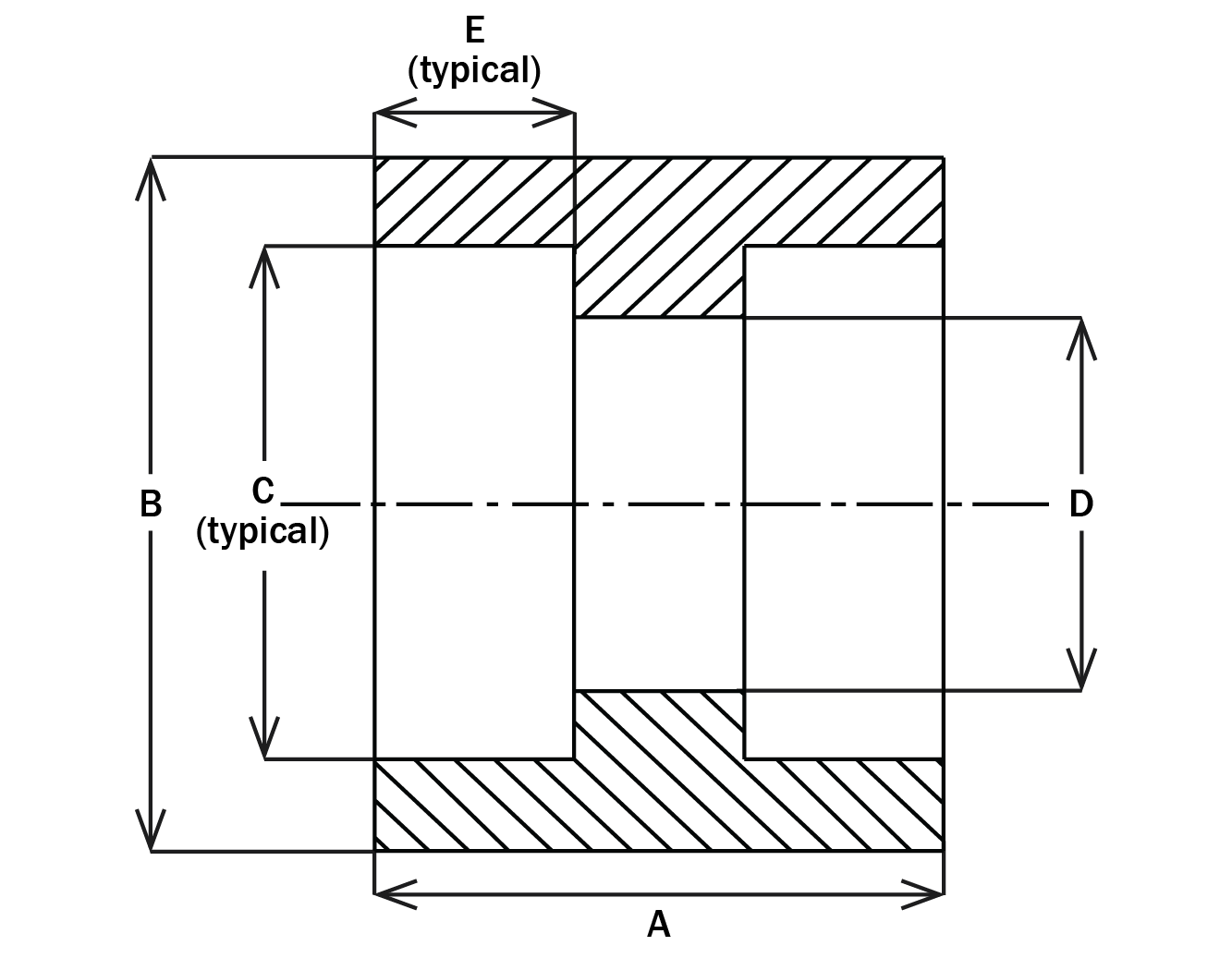

Specification

  • CPV-O-Seal: -46
  • A: 1-1/2
  • B: 1-5/8
  • C: 1.006
  • D: 5/8
  • E: 9/16
  • Tube Size: 1

Specification Table

CPV-O-Seal-46
A1-1/2
B1-5/8
C1.006
D5/8
E9/16
Tube Size1
