6C107-1-12 – Socket Weld Couplings – IPS x Tube Size

Print Icon Print Download Icon Download PDF

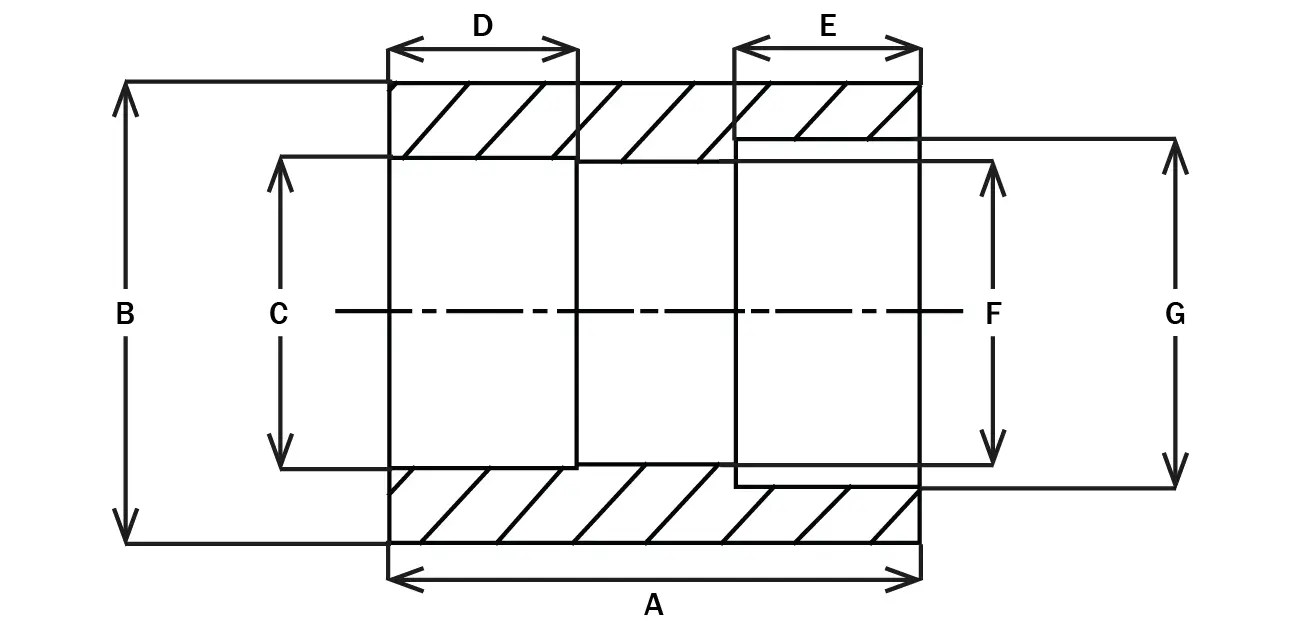

Specification

  • A: 1-3/16
  • B: 7/8
  • C: 0.545
  • D: 3/8
  • E: 7/16
  • F: 0.453
  • G: 0.755
  • Tube Size: 1/4 X 3/4

Specification Table

A1-3/16
B7/8
C0.545
D3/8
E7/16
F0.453
G0.755
Tube Size1/4 X 3/4
