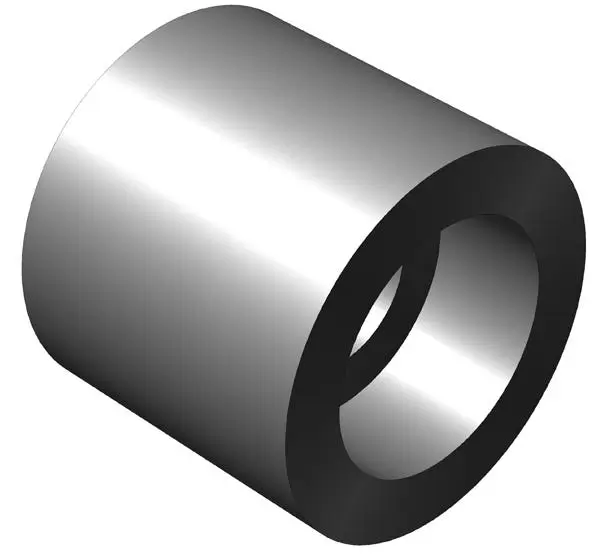

6C100-5

6C100-5 – Socket Weld Couplings – Pipe Size

Print Icon Print Download Icon Download PDF

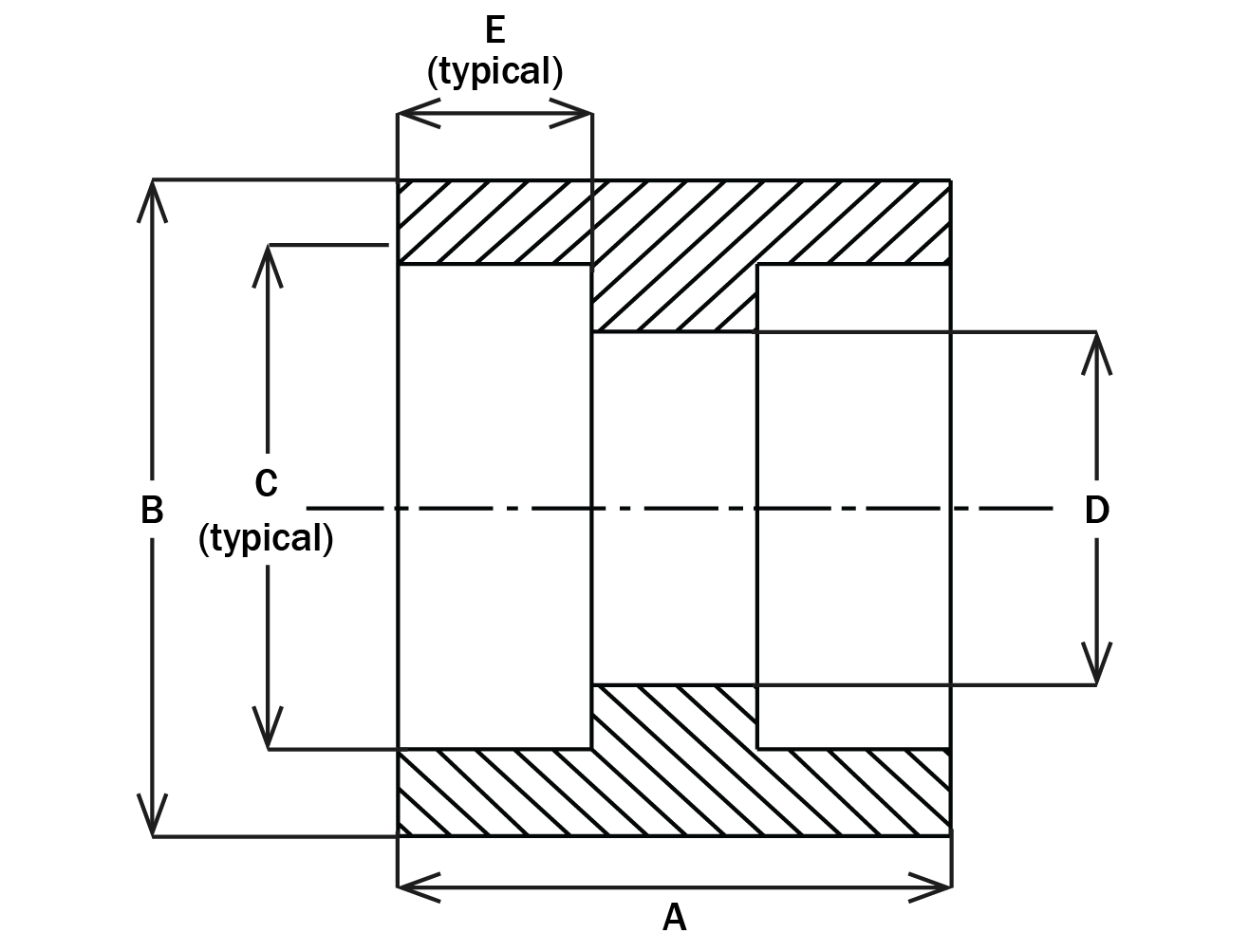

Specification

  • CPV-O-Seal: -100
  • A: 1-3/4
  • B: 2
  • C: 1.330
  • D: 13/16
  • E: 5/8
  • Pipe Size: 1

Specification Table

CPV-O-Seal-100
A1-3/4
B2
C1.330
D13/16
E5/8
Pipe Size1
