6C100-2 – Socket Weld Couplings – Pipe Size
6C100-2 – Socket Weld Couplings – Pipe Size6c100-5-cut-side6c100drawing
6C100-2

6C100-2 – Socket Weld Couplings – Pipe Size

Print Icon Print Download Icon Download PDF

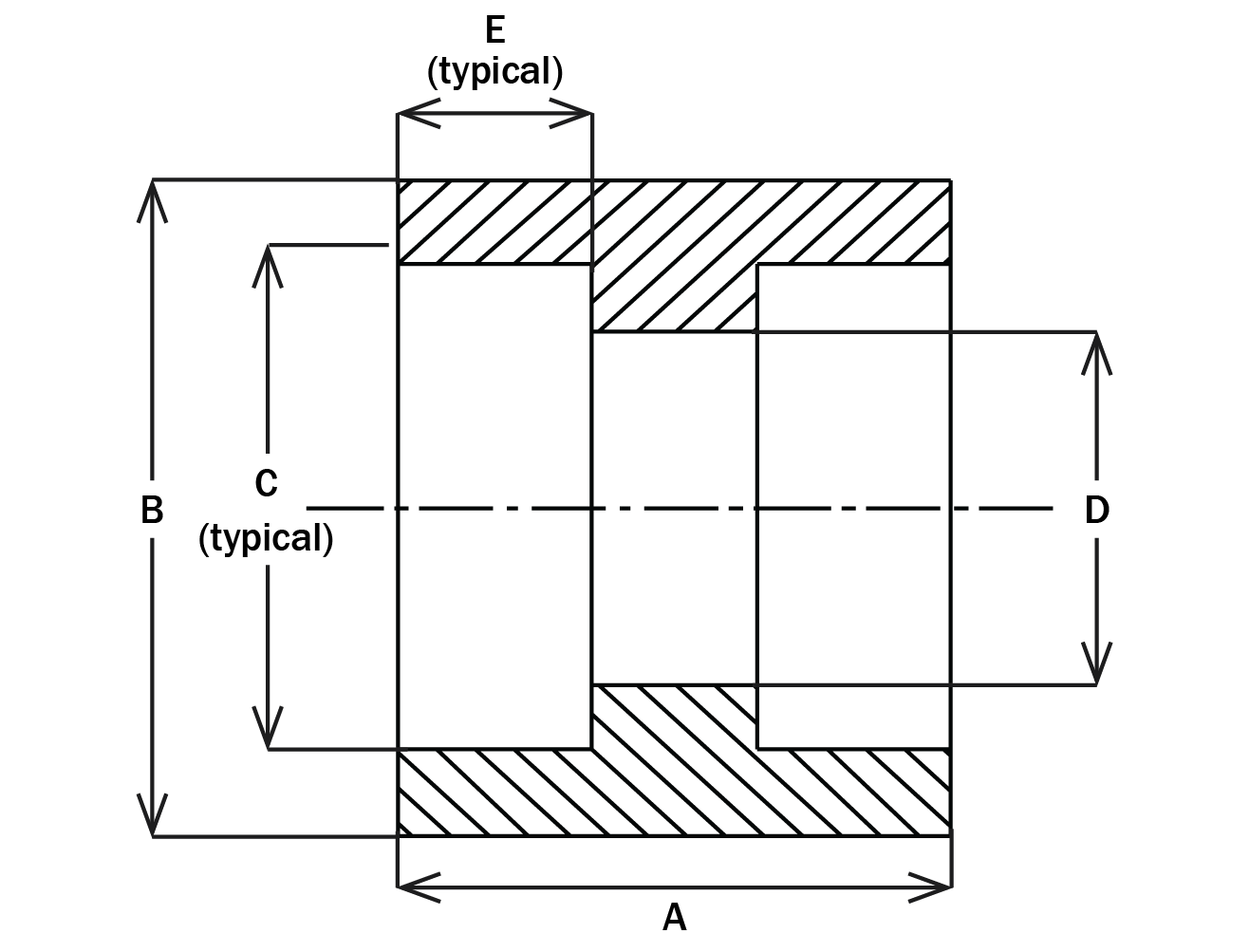

Specification

  • CPV-O-Seal: -100
  • A: 1-1/4
  • B: 1
  • C: 0.690
  • D: 7/16
  • E: 7/16
  • Pipe Size: '3/8

Specification Table

CPV-O-Seal -100
A1-1/4
B1
C0.690
D7/16
E7/16
Pipe Size'3/8
