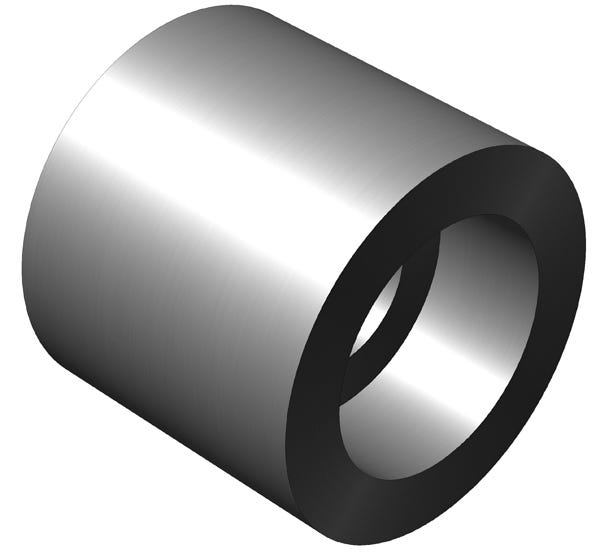

6C100-0 – Socket Weld Couplings – Pipe Size
6C100-0 – Socket Weld Couplings – Pipe Size6c100drawing-16c100-5-cut-side
6C100-0

6C100-0 – Socket Weld Couplings – Pipe Size

Print Icon Print Download Icon Download PDF

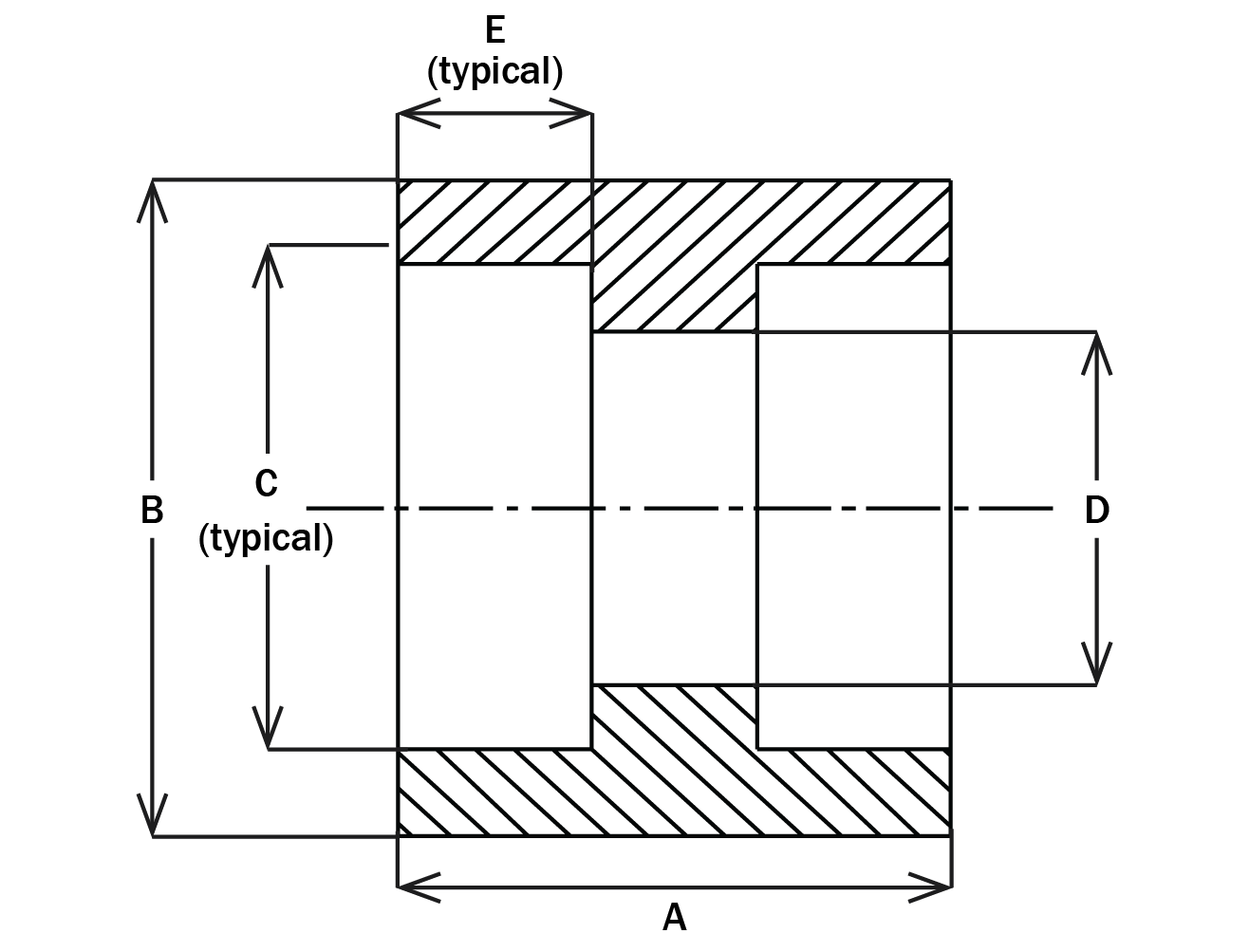

Specification

  • CPV-O-Seal: 100
  • A: 1-3/16
  • B: 3/4
  • C: 0.420
  • D: 7/32
  • E: 3/8
  • Pipe Size: '1/8

Specification Table

CPV-O-Seal100
A1-3/16
B3/4
C0.420
D7/32
E3/8
Pipe Size'1/8
