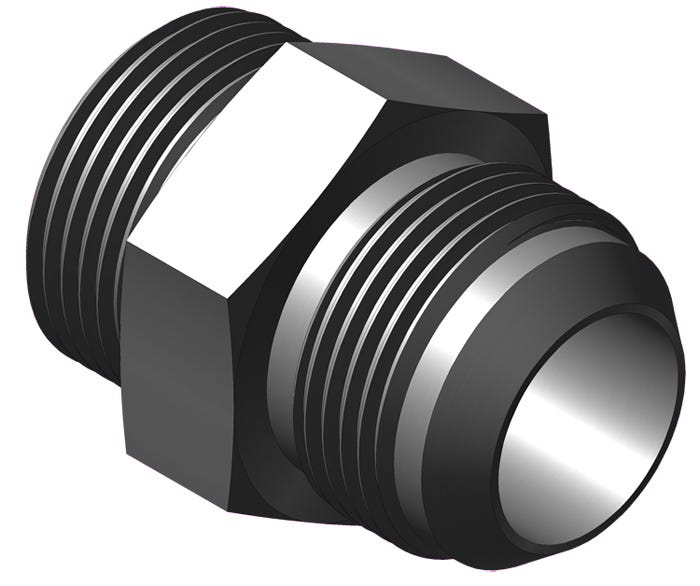

6728-6-4-CUNI – 6728 Series S.A.E. Male “O”-Ring Tube to 37º Male Flare Adapters
6728-6-4-CUNI – 6728 Series S.A.E. Male “O”-Ring Tube to 37º Male Flare Adaptersa1504-1
6728-6-4-CUNI

6728-6-4-CUNI – 6728 Series S.A.E. Male “O”-Ring Tube to 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 202702,

Specification

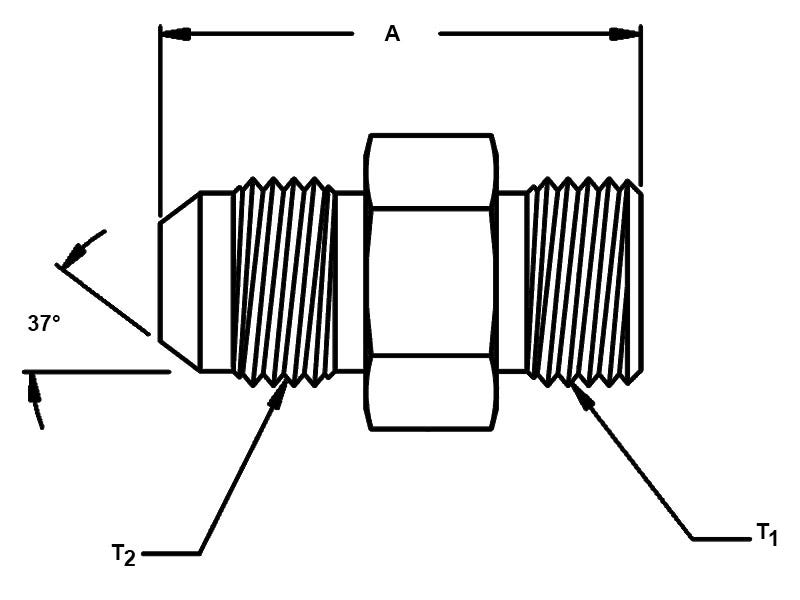

  • A: '1.29
  • Hose Size In : '1/4
  • Material: Copper Nickel
  • Thread Size T Sub 1 Sub: 9/16"-18
  • Thread Size T Sub 2 Sub: 7/16"-20
  • Tube O D In: '1/4
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

A'1.29
Hose Size In '1/4
MaterialCopper Nickel
Thread Size T Sub 1 Sub9/16"-18
Thread Size T Sub 2 Sub7/16"-20
Tube O D In'1/4
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
