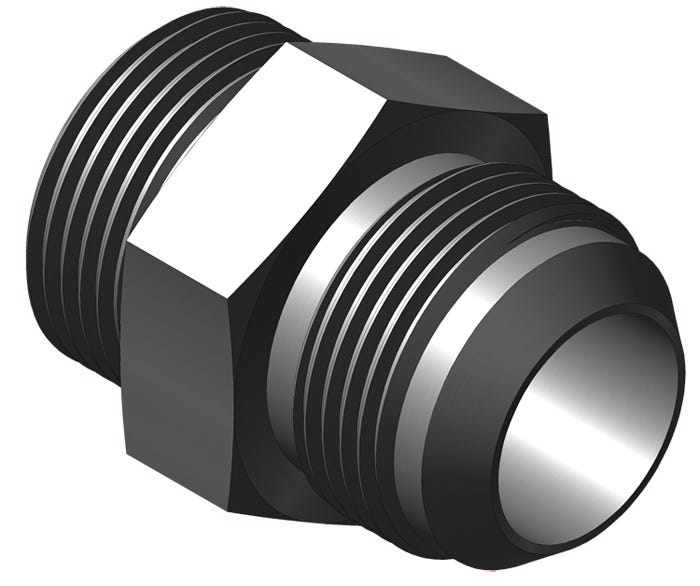

6728 16 16 ss wholeiso
6728 16 16 ss wholeisoa1504-600x450
6728-10-16-SS

6728-10-16-SS – 6728 Series S.A.E. Male “O”-Ring Tube to 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip 202702,

Specification

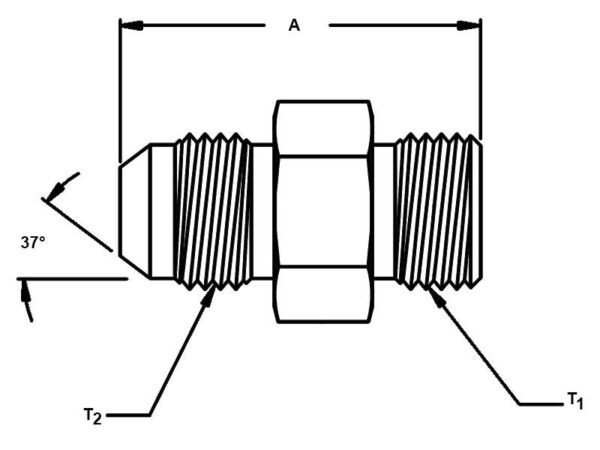

  • A: 1.92''
  • Equal To Aeroquip No : 259-202702-10-16
  • Hose Size In : 1
  • Hydrasearch Drawing Number: 6728-10-16''
  • Material: Stainless Steel
  • Thread Size T Sub 1 Sub: 7/8"-14
  • Thread Size T Sub 2 Sub: 1-5/16"-12
  • Tube O D In: 1

Specification Table

A1.92''
Equal To Aeroquip No 259-202702-10-16
Hose Size In 1
Hydrasearch Drawing Number6728-10-16''
MaterialStainless Steel
Thread Size T Sub 1 Sub7/8"-14
Thread Size T Sub 2 Sub1-5/16"-12
Tube O D In1
