66-190103-1-24
66-190103-1-24
Print
Download PDF
( 150lb, End Fitting - 90° )
Description:
Equal to Hydrasearch P/N 66-190103,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification

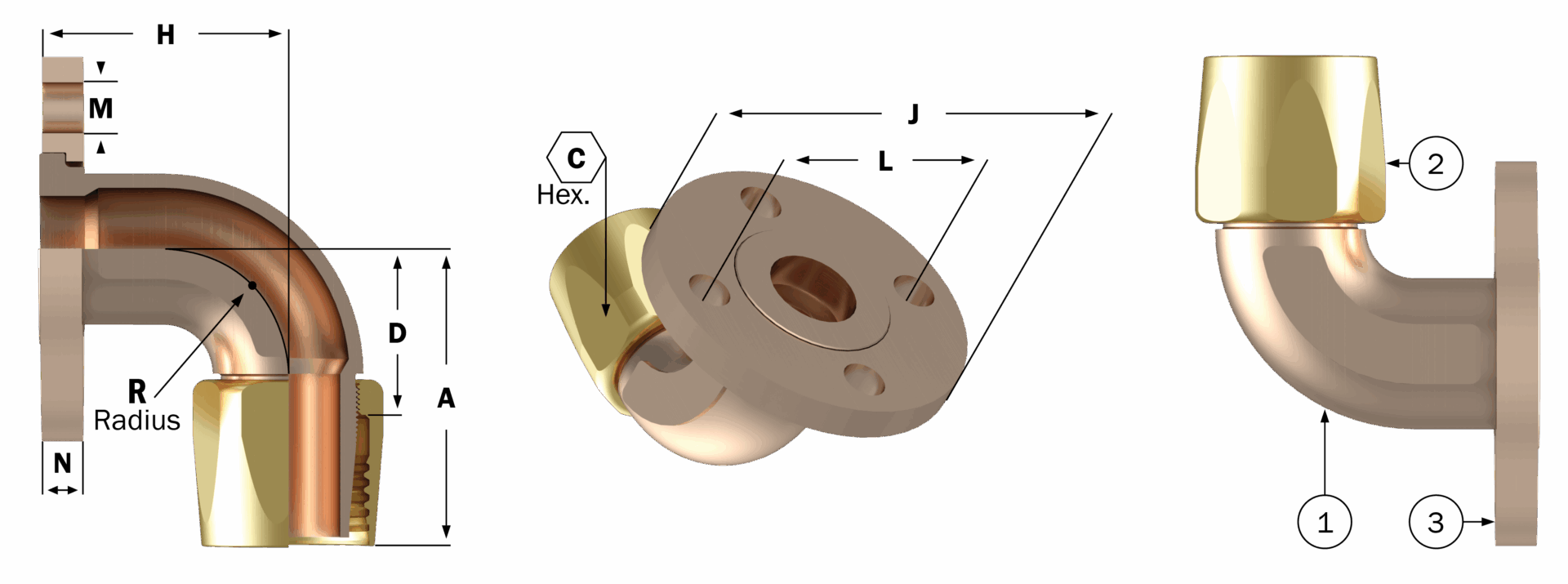

Specification Table
| Part Number | 66-190103-1-24 |
|---|---|
| IPS Size | 1 |
| No. of Bolt Holes | 4 |
| A | 3.24 |
| C | 1.94 |
| D | 1.78 |
| H | 2.75 |
| J | 4.25 |
| L | 3.12 |
| M | .56 |
| N | .44 |
| R | 1.81 |
| Est. Wt. (lbs.) | 3.20 |
Components Table
| Description | Req’d per Ass’y | Base No. | 1/2-16 | 3/4-16 | 3/4-20 | 1-16 | 1-24 | 1.25-32 | 1.5-32 | 2-32 | Material |
| Elbow | 1 | 188-185029- | 1/2-16 | 1/2-16 | 3/4-20 | 1-16 | 1-24 | 1.25-32 | 1.5-32 | 2-32 | Aluminum. Bronze |
| Socket | 1 | 1212- | 16B | 16B | 20B | 16B | 24B | 32B | 32B | 32B | Brass |
| Flange | 1 | 188-180005- | 1/2-16 | 1/2-16 | 3/4-20 | 1-16 | 1-24 | 1.25-32 | 1.5-32 | 2-32 | Aluminum. Bronze |
