66-190093-32
66-190093-32
Print
Download PDF

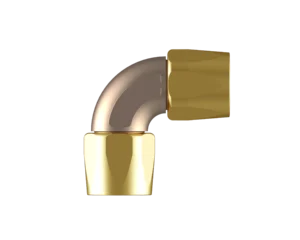

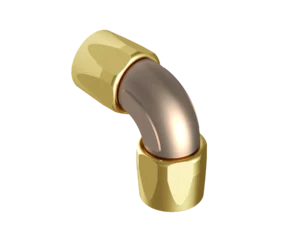

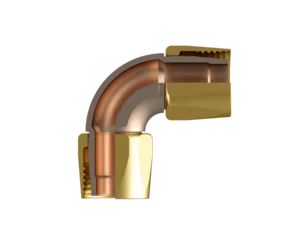

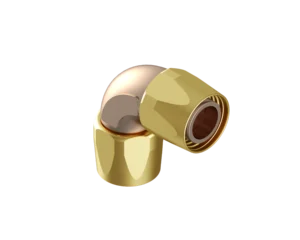

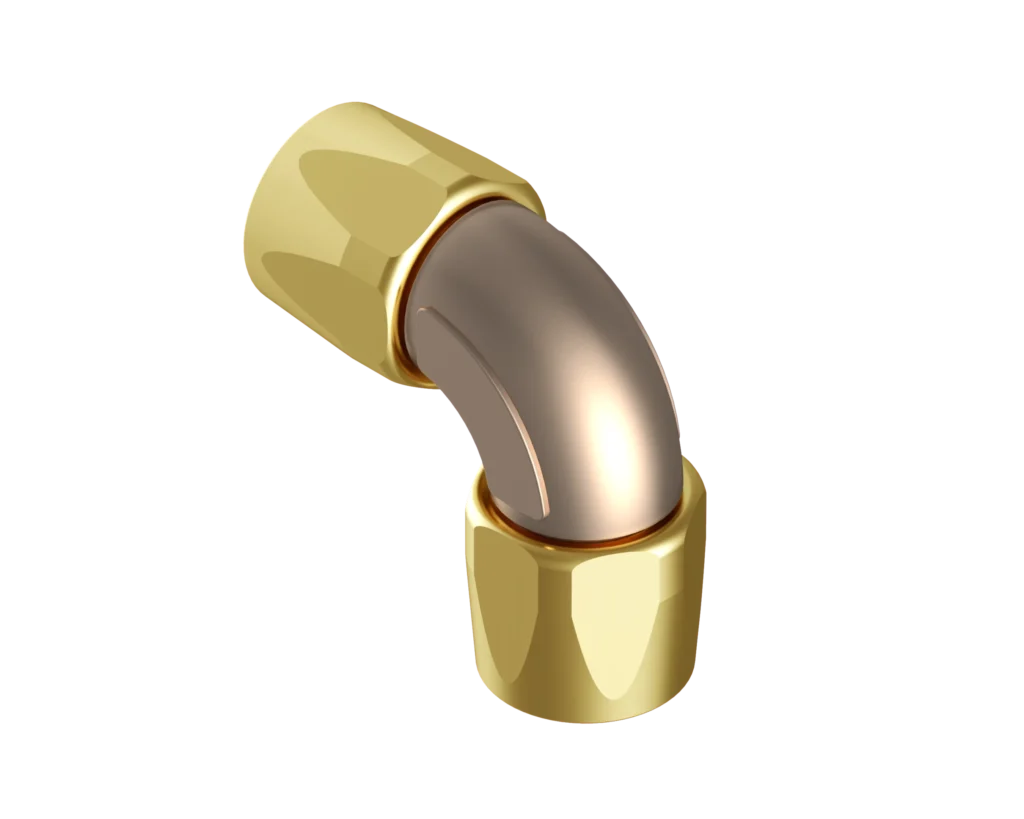

( Elbow - 90° Dogleg )
Description:
Equal to Hydrasearch P/N 66-190093,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 66-190093-32 |
|---|---|
| IPS Size | 2 |
| A | 3.89 |
| D | 2.05 |
| E | 1.69 |
| G | 2.44 |
| R | 1.62 |
| V | 2.25 |
| X | 2.25 |
| Est. Wt. (lbs.) | 3.25 |
Components Table
| Description | Req’d per Ass’y | Base No. | -16 | -20 | -24 | -32 | -40 | -48 | Material |
| Elbow | 1 | 188-185093- | 16 | 20 | 24 | 32 | 40 | 48 | Aluminum. Bronze |
| Socket | 2 | 1212- | 16B | 20B | 24B | 32B | 40B | 48B | Brass |
