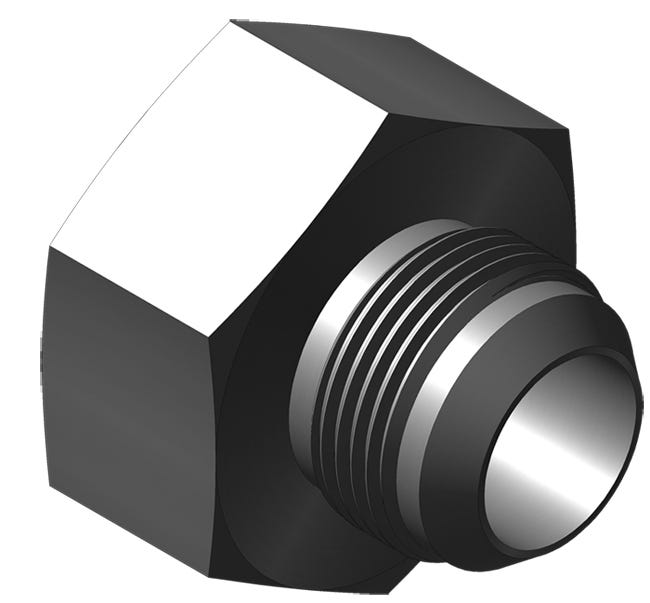

4238-6-2-CUNI – 4238 Series Female Socket Weld Pipe x 37º Male Flare Adapters
4238-6-2-CUNI – 4238 Series Female Socket Weld Pipe x 37º Male Flare Adaptersa1502-3
4238-6-2-CUNI

4238-6-2-CUNI – 4238 Series Female Socket Weld Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 202232,

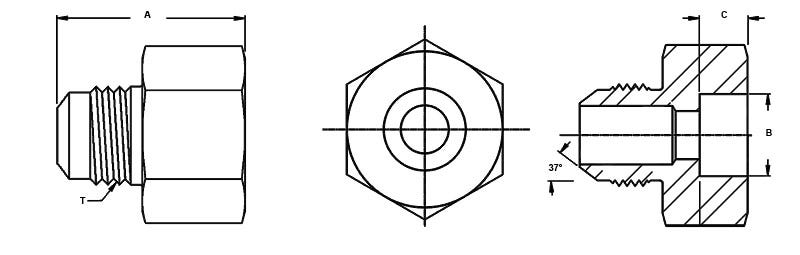

Specification

  • A: '1.38
  • B: '0.69
  • C: '0.38
  • Material: Copper Nickel
  • Thread Size - T: 9/16"-18
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

A'1.38
B'0.69
C'0.38
MaterialCopper Nickel
Thread Size - T9/16"-18
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
