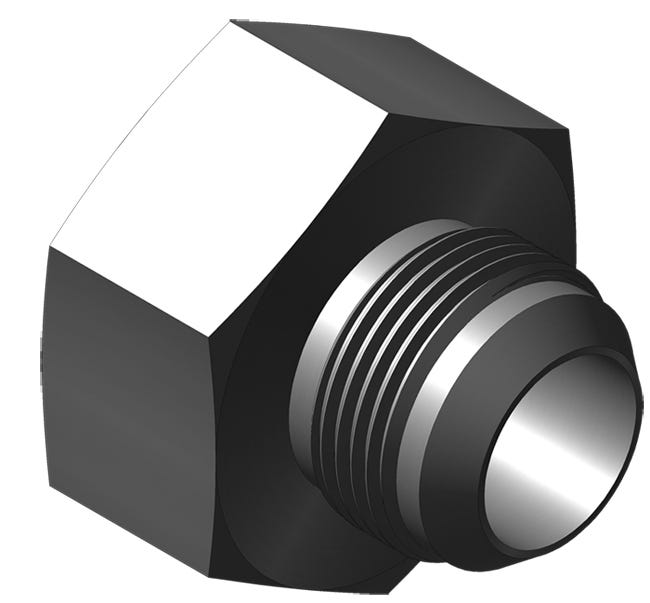

4238-24-6-NICU – 4238 Series Female Socket Weld Pipe x 37º Male Flare Adapters
4238-24-6-NICU – 4238 Series Female Socket Weld Pipe x 37º Male Flare Adaptersa1502-1
4238-24-6-NICU

4238-24-6-NICU – 4238 Series Female Socket Weld Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 202232,

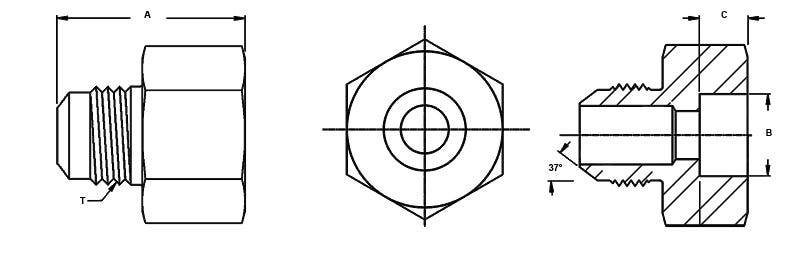

Specification

  • A: '2.12z
  • B: '1.68
  • C: '0.69
  • Equal To Aeroquip No : 4-202232-1 1/4-24
  • Hydrasearch Drawing Number: 4238-24-6
  • Material: Monel
  • Thread Size - T: 1-7/8"-12

Specification Table

A'2.12z
B'1.68
C'0.69
Equal To Aeroquip No 4-202232-1 1/4-24
Hydrasearch Drawing Number4238-24-6
MaterialMonel
Thread Size - T 1-7/8"-12
