4238-10-2-CUNI

4238-10-2-CUNI – 4238 Series Female Socket Weld Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

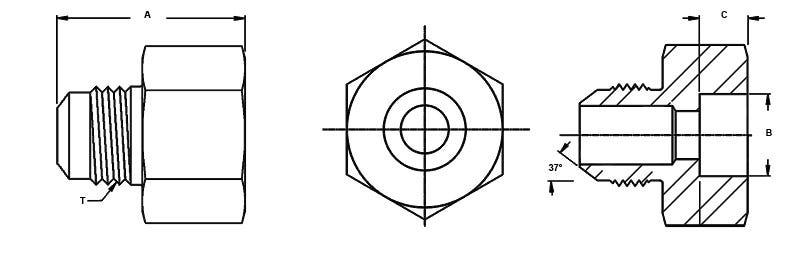

Specification

  • Dim A Hex: 1.56''
  • Dim B Id: .69''
  • Material: Copper Nickel
  • Thread Size - T: 7/8"-14
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

Dim A Hex1.56''
Dim B Id.69''
Dim C Id In-
MaterialCopper Nickel
Thread Size - T7/8"-14
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
