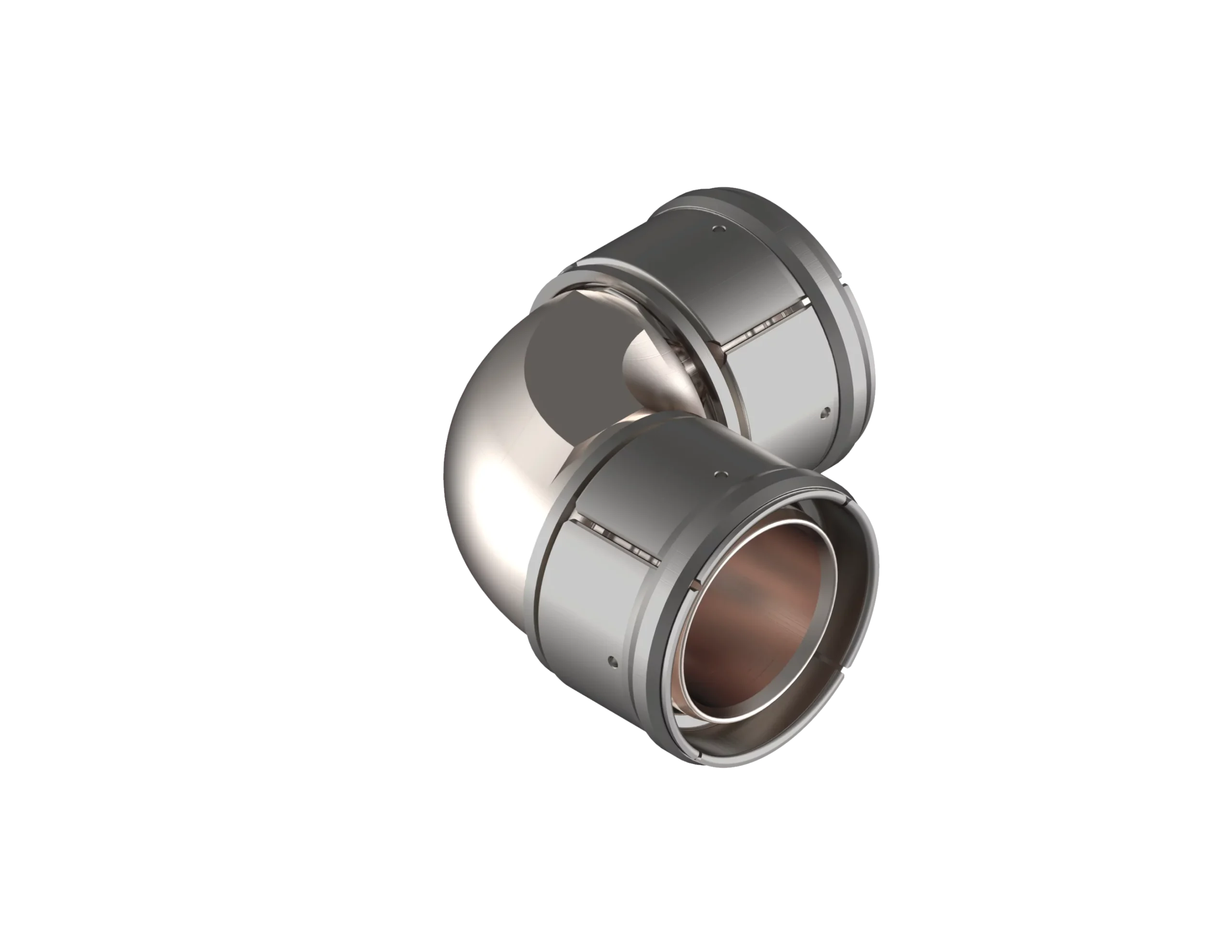

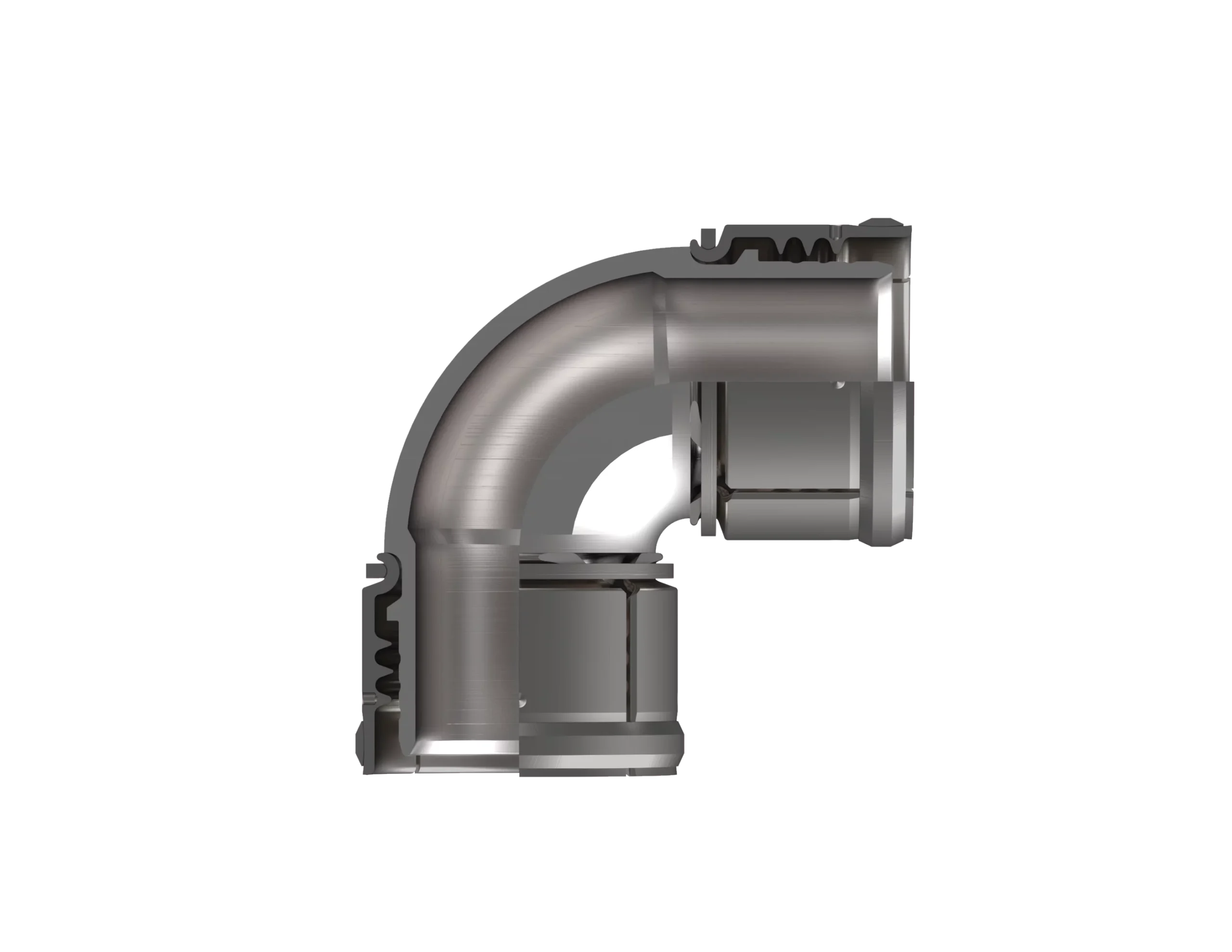

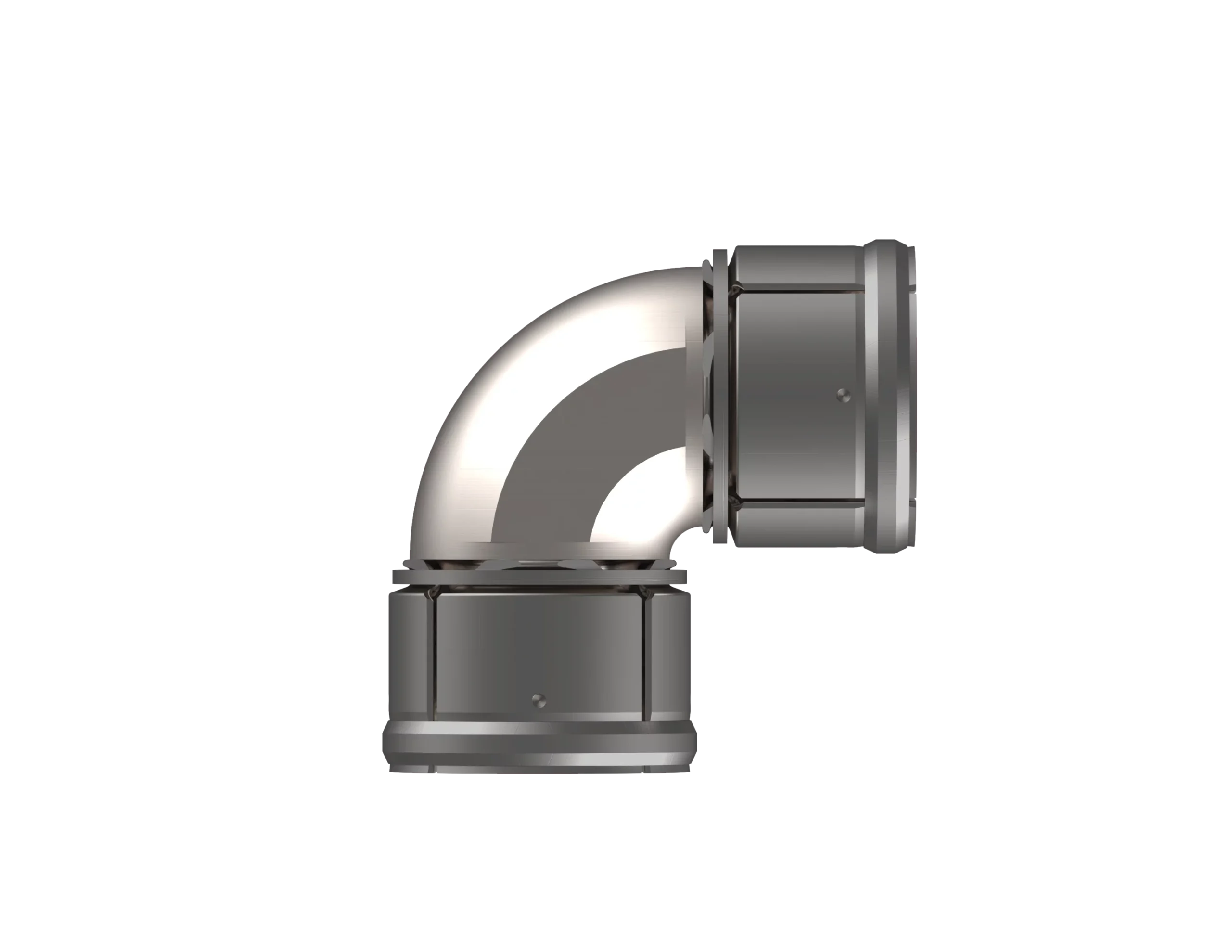

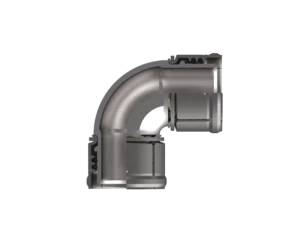

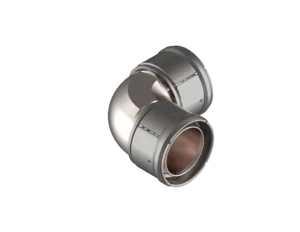

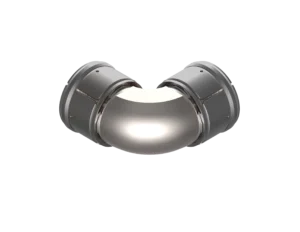

( Elbow - 90° Dogleg )

Description:

Equal to Hydrasearch P/N 412-190717,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: 412-190717-40
  • IPS Size: 2.5
  • A: 5.70
  • D: 2.87
  • R: 1.88
  • T: 3.90
  • Est. Wt. (lbs.): 11.60

Specification Table

Part Number412-190717-40
IPS Size2.5
A5.70
D2.87
R1.88
T3.90
Est. Wt. (lbs.)11.60

Components Table

DescriptionReq’d per Ass’yBase No.404864Material
Elbow1-404864Stainless Steel
Socket Assembly24-1205404864Monel
Ring84-21004-404864Monel
Grip Segment24-1205-1-404864Monel
Band24-21023-404864Monel
