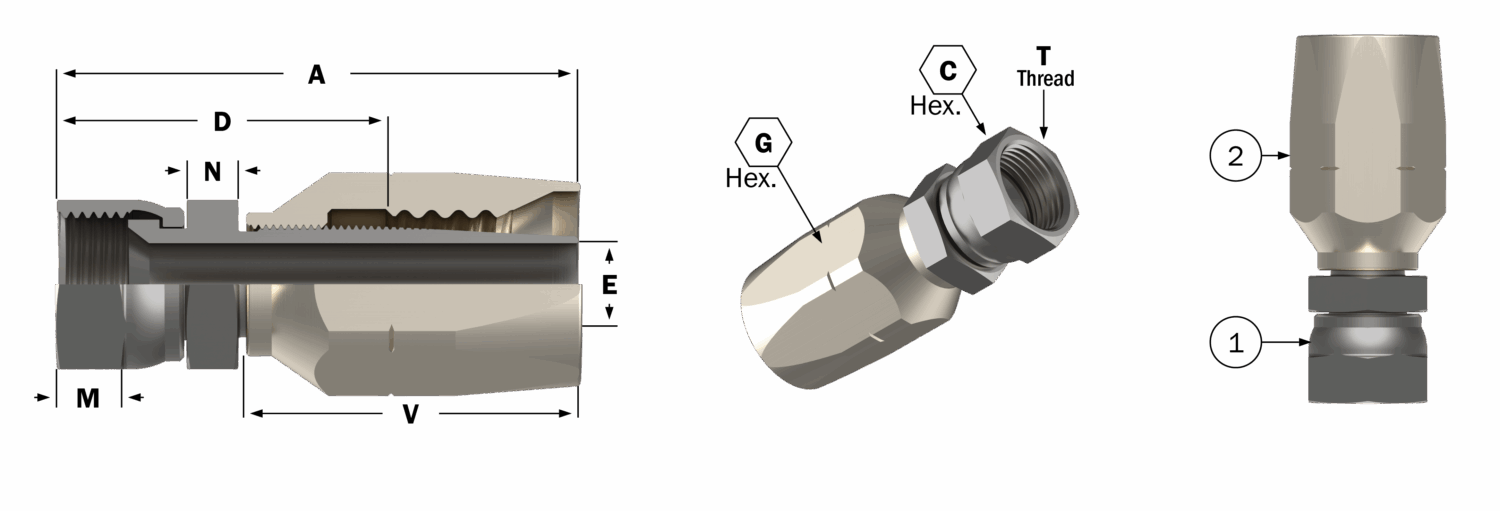

( End Fitting - Straight )
Description:
Equal to Hydrasearch P/N 41-4721,
Use with the following hose:
Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13
Specification
Specification Table
| Part Number | 41-4721-20 |
|---|---|
| Hose Id | 1.25 |
| T Thread CL-2B | 1-5/8”-12 |
| A | 5.10 |
| C | 1.50 |
| D | 2.78 |
| E | 1.05 |
| G | 2.25 |
| M | .60 |
| N | .38 |
| V | 2.95 |
| Est. Wt. (lbs.) | 3.38 |
Components Table
| Description | Req’d per Ass’y | Base No. | 4-4 | 5-4 | 6-4 | 6-6 | 8-6 | 8-8 | 10-8 | 10 | 12 | 16 | 20 | 24 | 32 | Mat’l |
| Nipple | 1 | 4-103- | 4-4 | 5-4 | 6-4 | 6-6 | 8-6 | 8-8 | 10-8 | 10 | 12 | 16 | 20 | 24 | 32 | Monel |
| Socket | 1 | 4-4010-4-4013- | 4- | 4- | 4- | 6- | 6- | 8- | 8- | 10- | 12- | -16 | 20- | 24- | 32- | Steel |
