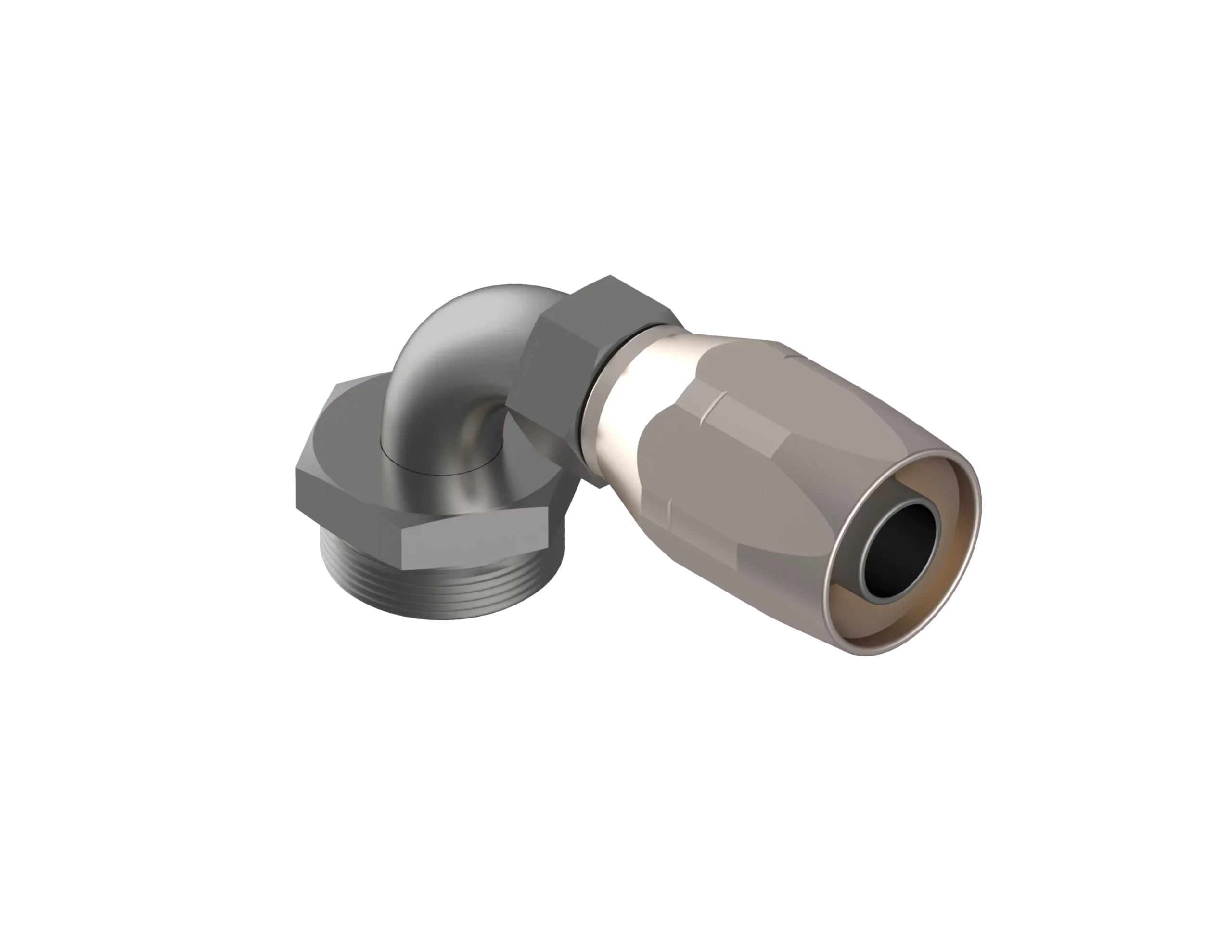

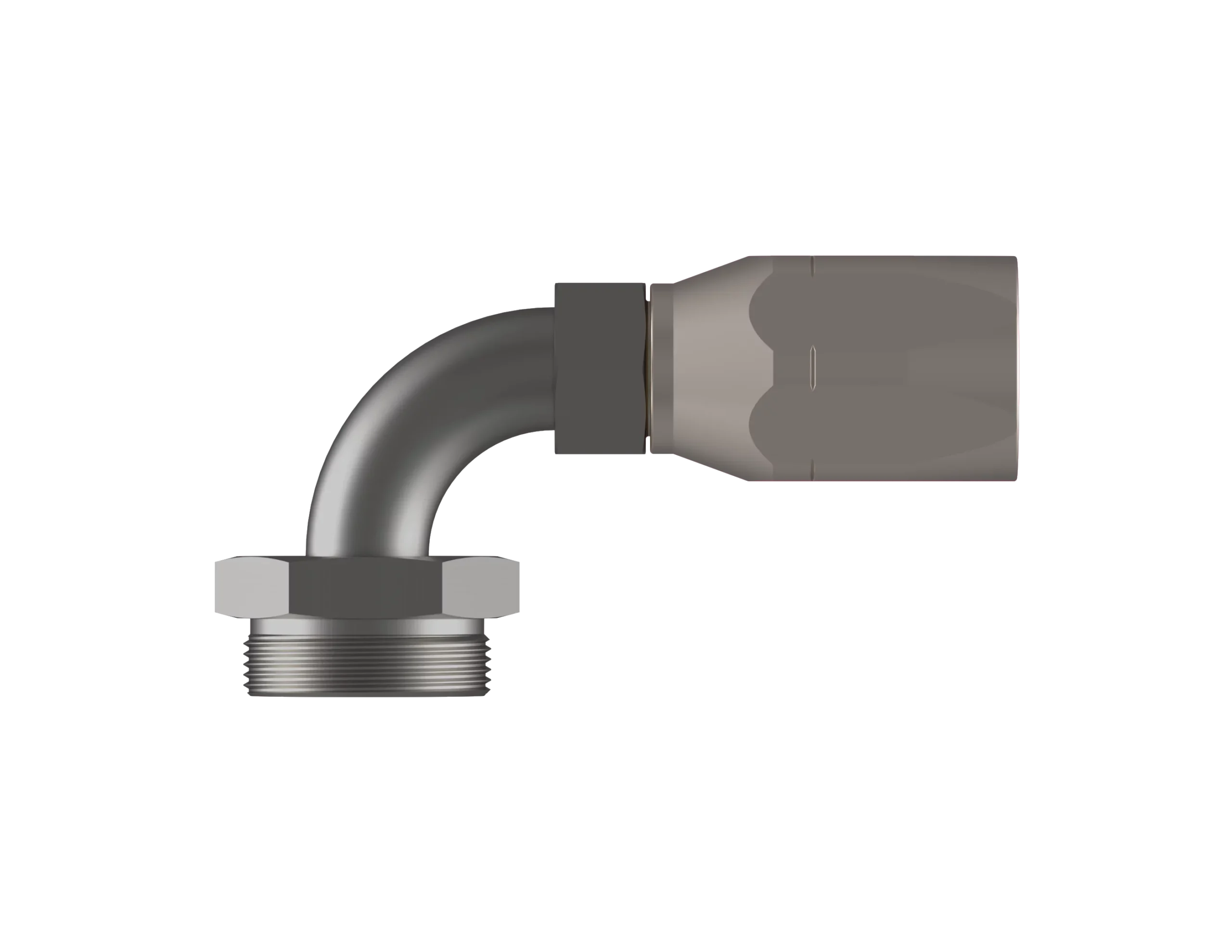

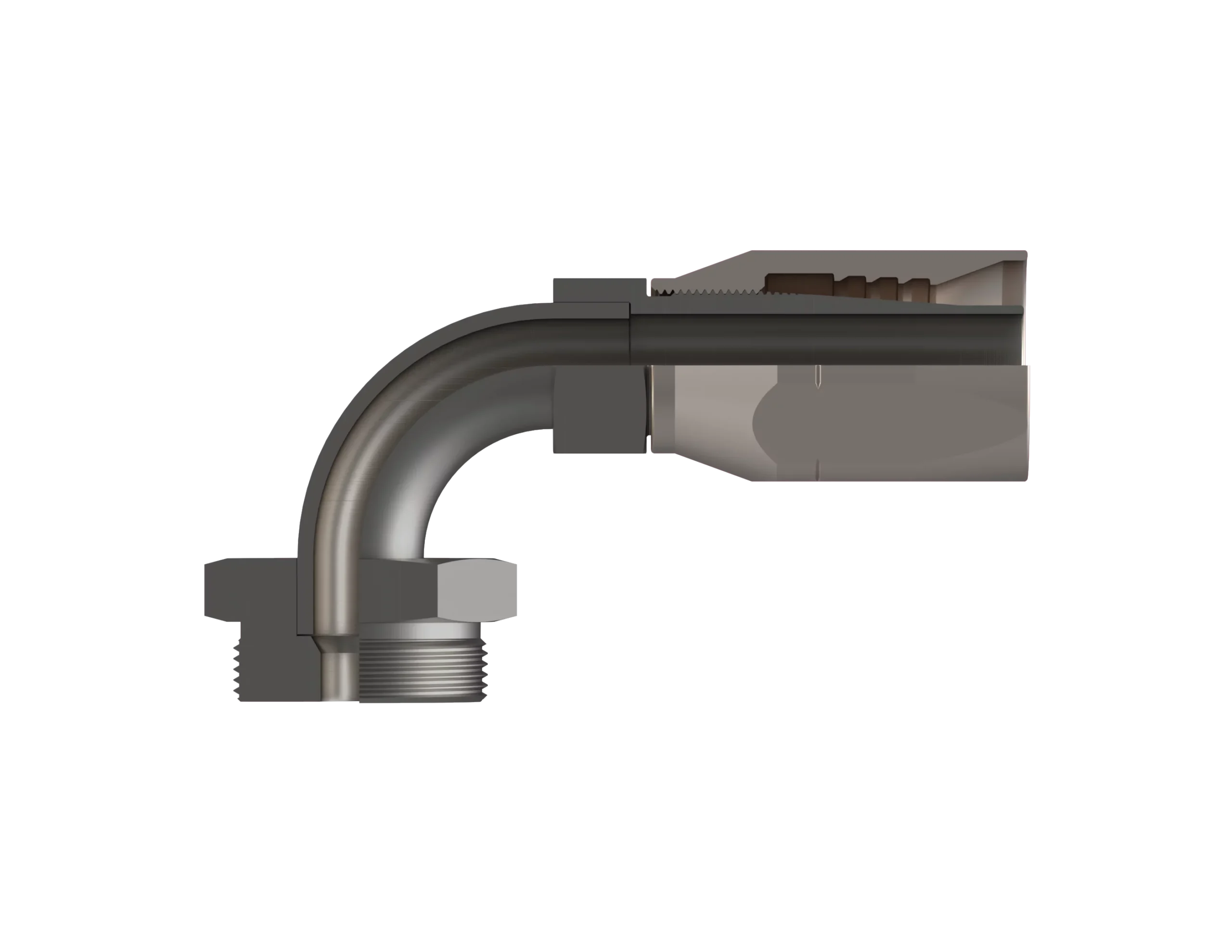

( End Fitting - 90° )

Description:

Equal to Hydrasearch P/N 41-191304,
Use with the following hose: Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Specification

  • Part Number: 41-191304-1/2-12
  • IPS Size: 1/2
  • Thread CL-3A: 1-3/4”-12
  • A: 4.52
  • C: 1.81
  • D: 2.65
  • G: 1.50
  • H: 2.31
  • M: .62
  • R: 1.25
  • W: 1.06
  • Est. Wt. (lbs.): 1.71

Specification Table

Part Number41-191304-1/2-12
IPS Size1/2
Thread CL-3A1-3/4”-12
A4.52
C1.81
D2.65
G1.50
H2.31
M.62
R1.25
W1.06
Est. Wt. (lbs.)1.71

Components Table

DescriptionReq’d per Ass’yBase No.1/4-63/8-81/2-123/4-161-161-201.25-201.25-241.5-322-32Material
Elbow14-419037-15-419037-6-8-12--16-1620-20-24-32-32-Monel CUNI
Socket1-----------Steel
