4-4721-6-4
4-4721-6-4
Print
Download PDF

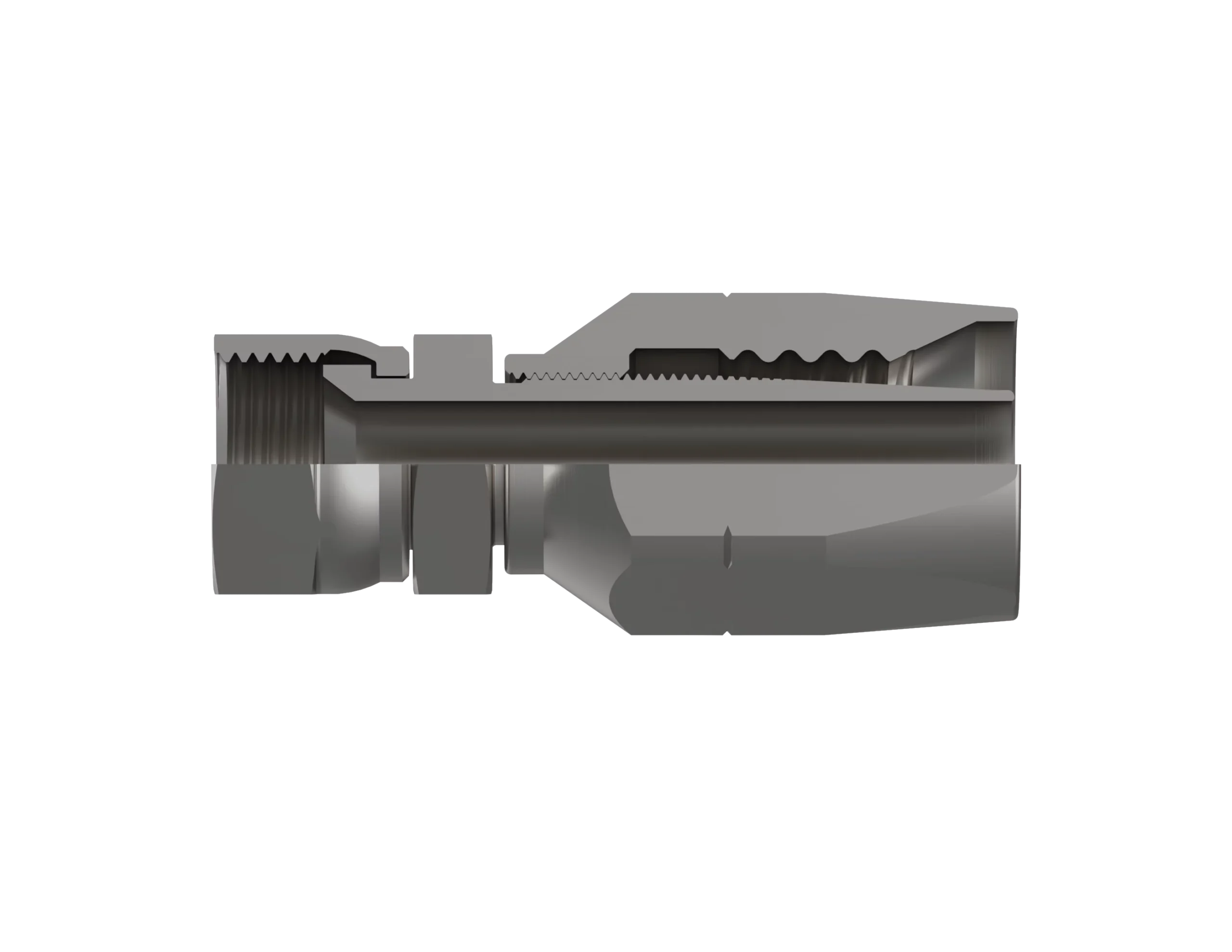

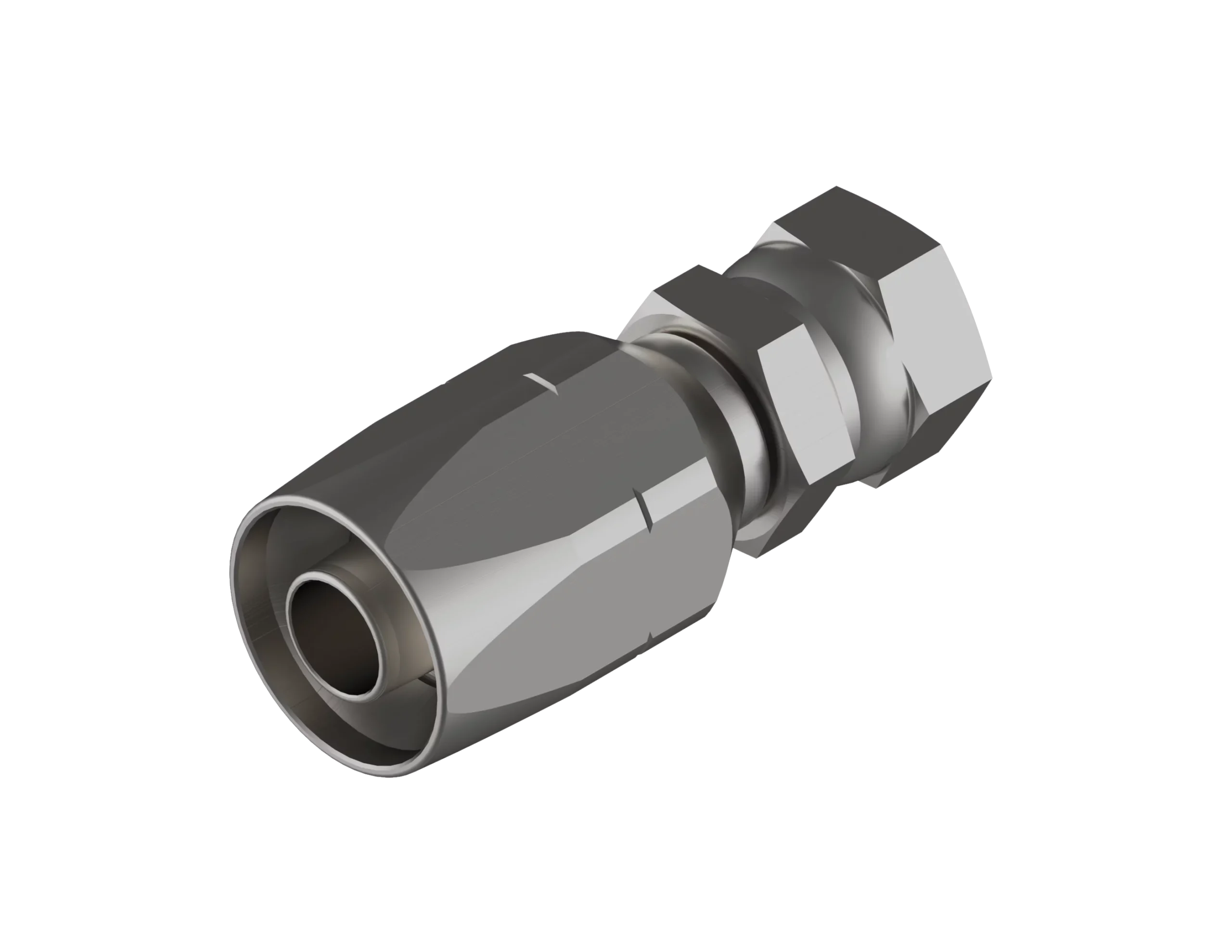

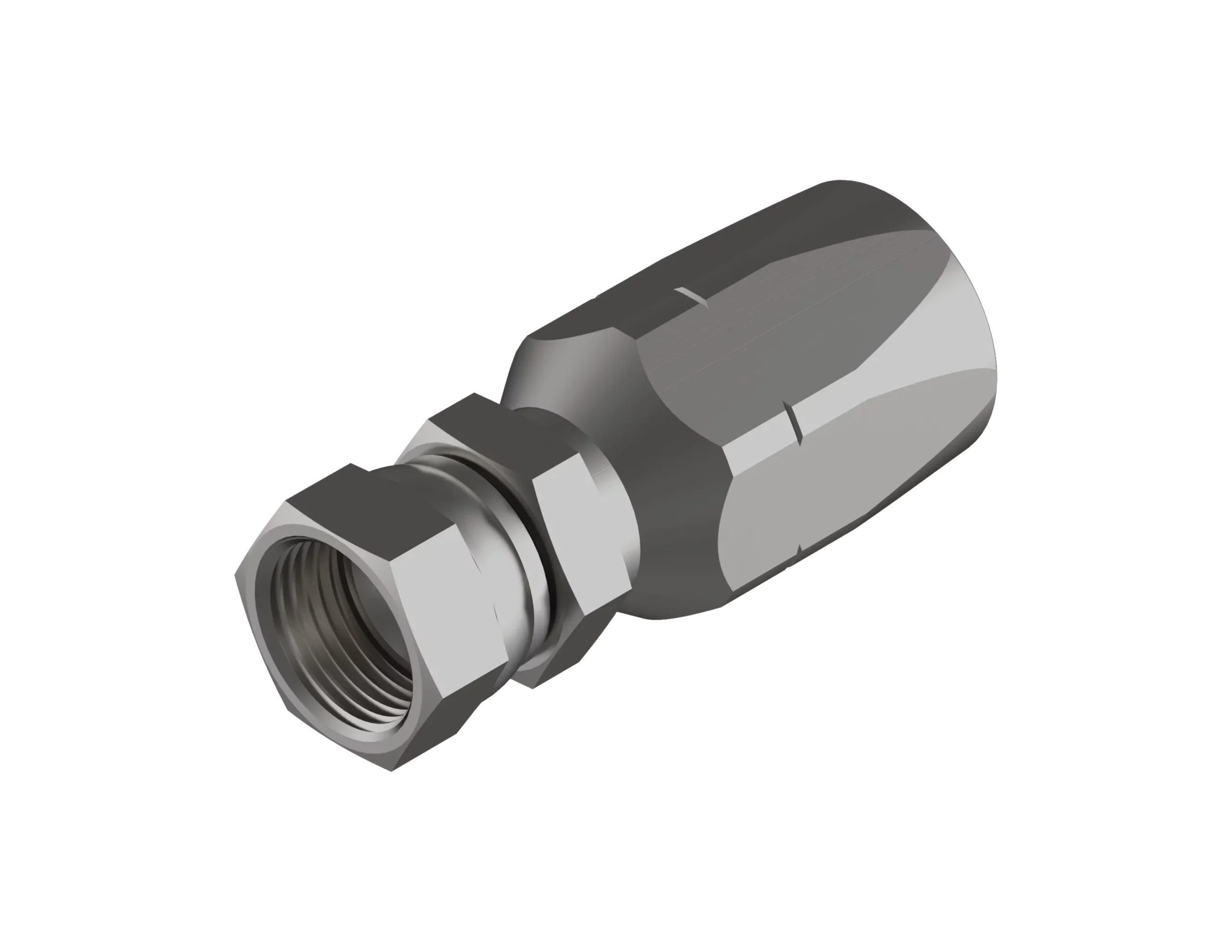

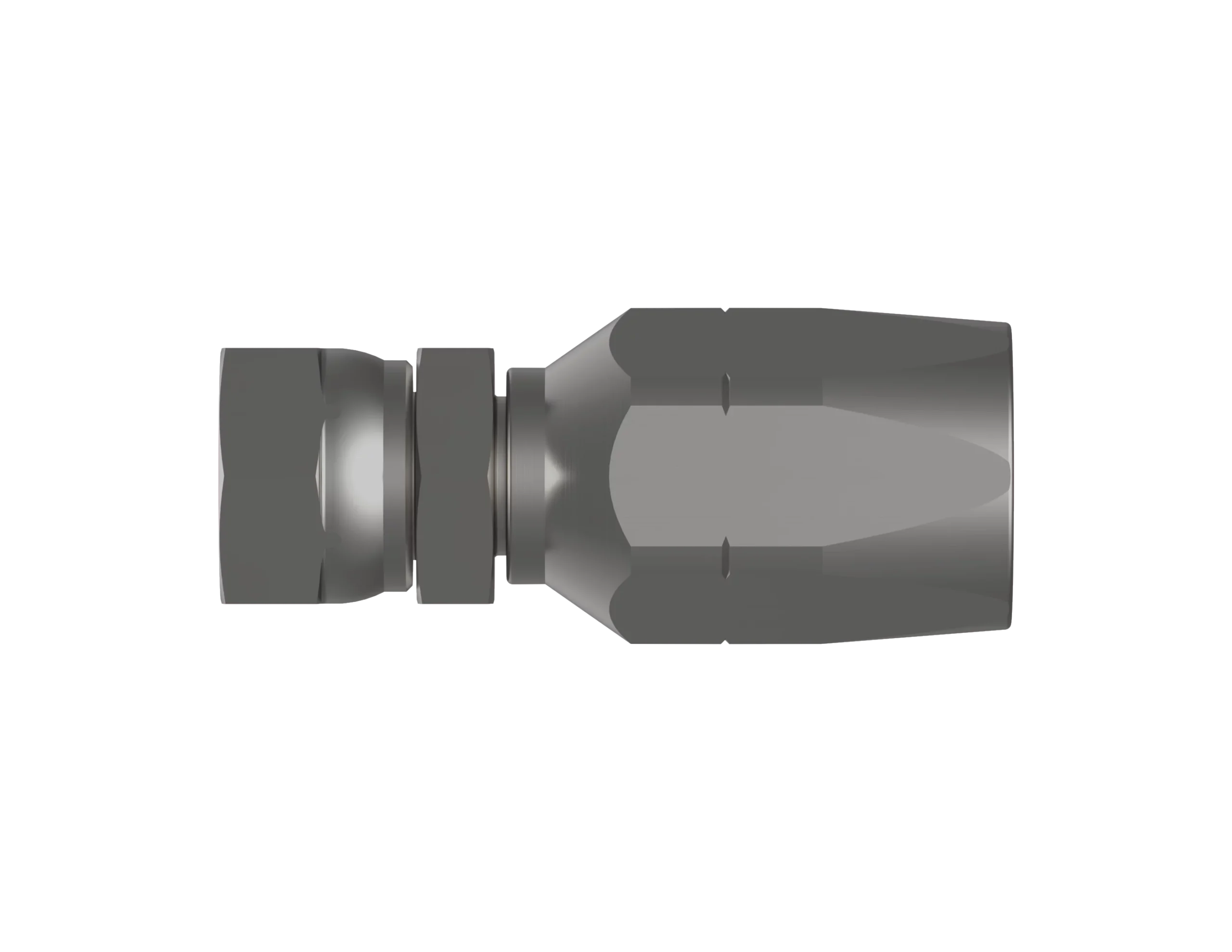

( MIL-DTL-24787/2, Type A, Group I, End Fitting - Straight )
Description:
Equal to Hydrasearch P/N 4-4721,
Use with the following hose:
Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13
Specification
Specification Table
| Part Number | 4-4721-6-4 |
|---|---|
| Hose Id | 1/4 |
| T Thread CL-2B | 9/16”-18 |
| A | 2.79 |
| C | .69 |
| D | 1.56 |
| E | .17 |
| G | 1.25 |
| M | .40 |
| N | .28 |
| V | 1.73 |
| Est. Wt. (lbs.) | .28 |
Components Table
| Description | Req’d per Ass’y | Base No. | 4-4 | 5-4 | 6-4 | 6-6 | 8-6 | 8-8 | 10-8 | 10 | 12 | 16 | 20 | 24 | 32 | Mat’l |
| Nipple | 1 | 4-4103- | 4-4 | 5-4 | 6-4 | 6-6 | 8-6 | 8-8 | 10-8 | 10 | 12 | 16 | 20 | 24 | 32 | Monel |
| Socket | 1 | 4-4010-4-4013- | 4- | 4- | 4- | 6- | 6- | 8- | 8- | 10- | 12- | -16 | 20- | 24- | 32- | Monel |
