4-412-2-4B
4-412-2-4B
Print
Download PDF

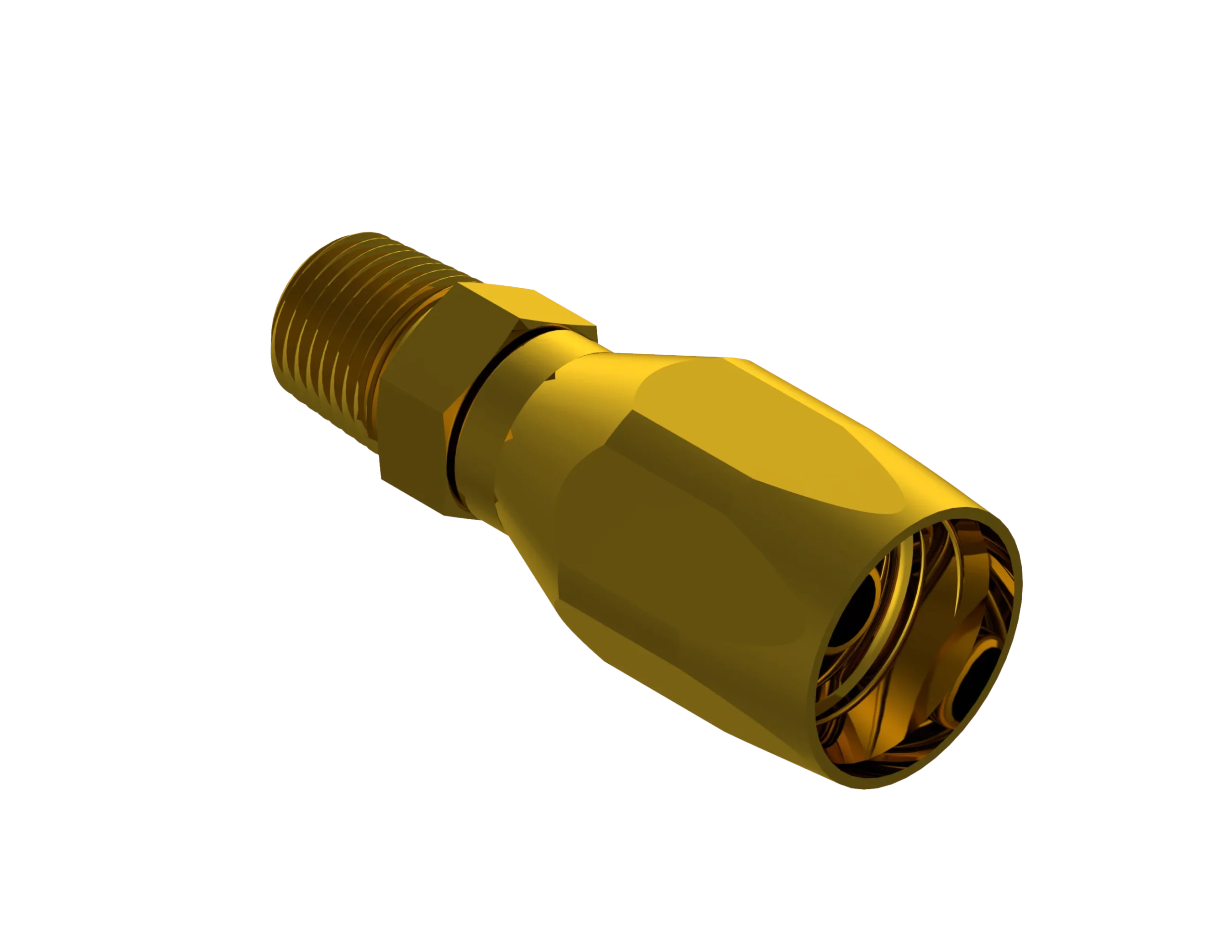

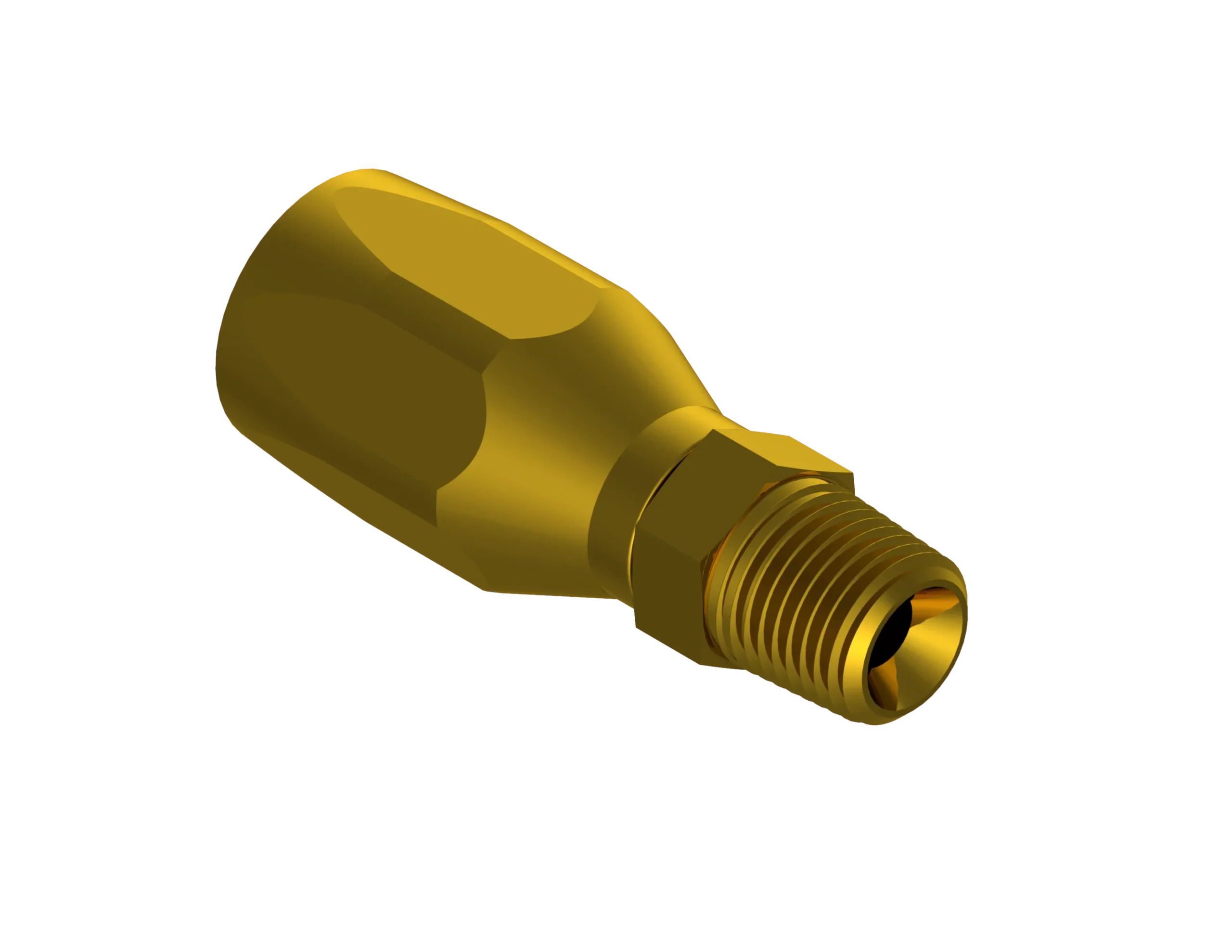

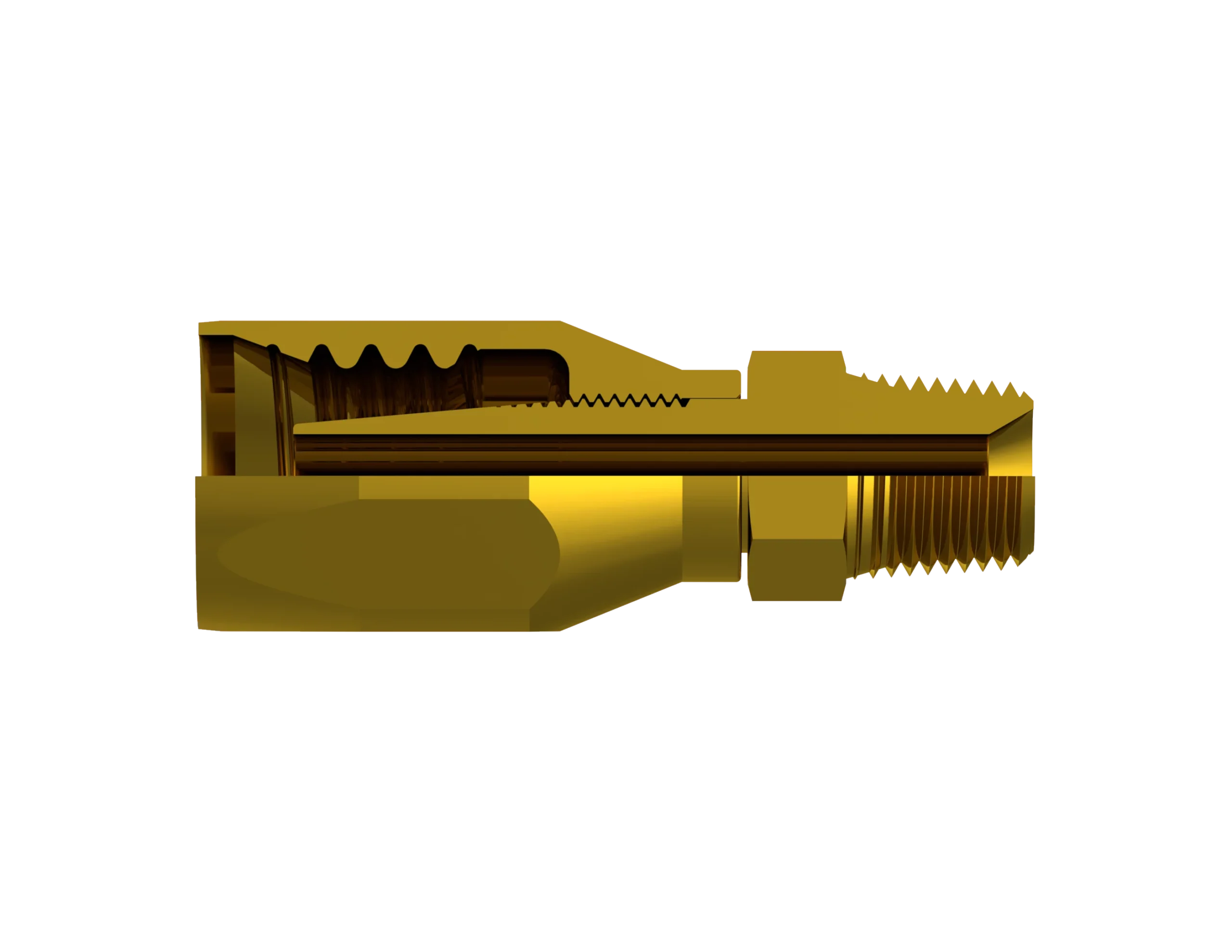

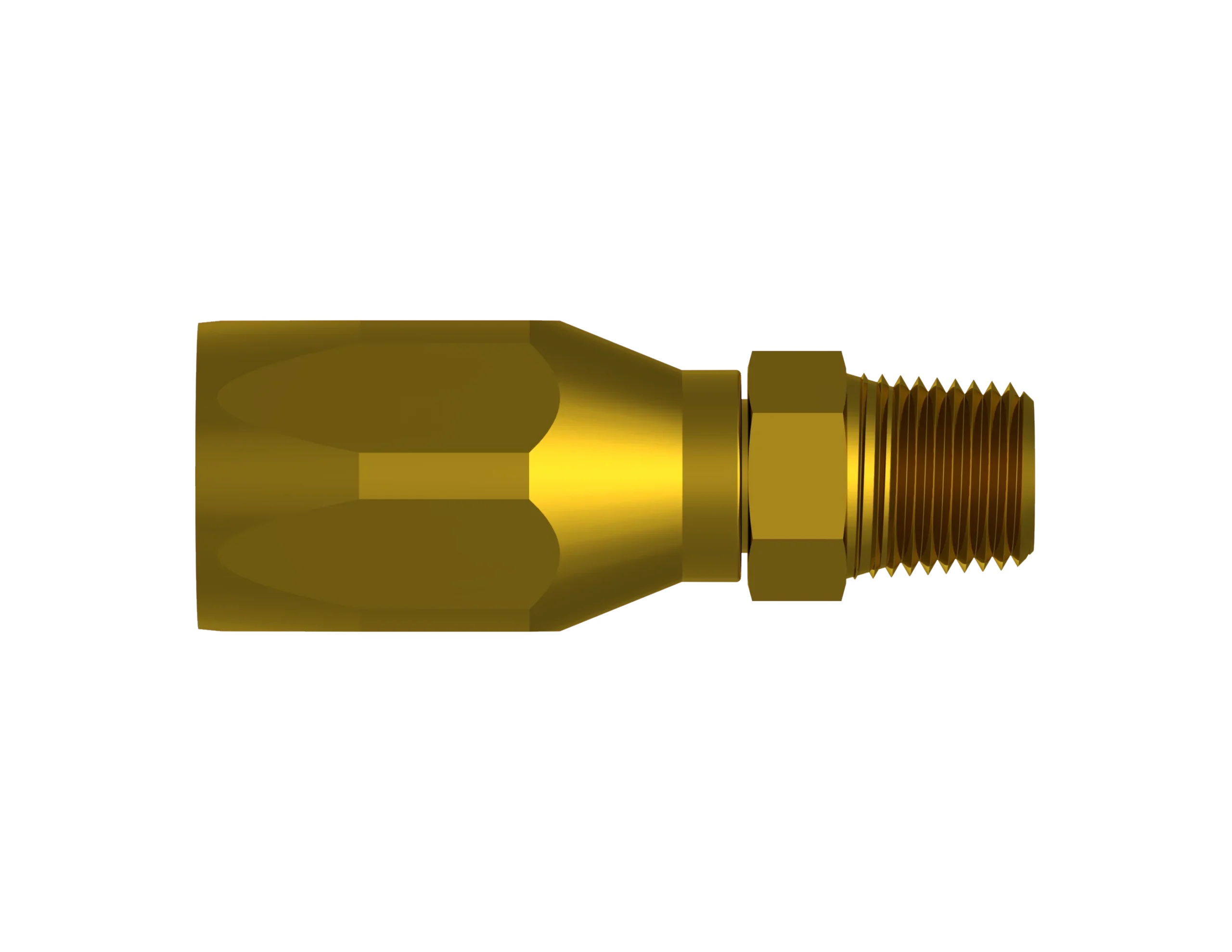

( End Fitting - Straight )
Description:
Equal to Aeroquip P/N 412-B & 44-412,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 4-412-2-4B |
|---|---|
| Hose Size | 1/4 |
| T Thread CL-2A | 1/8”-27 |
| A | 1.68 |
| B | .55 |
| C | .44 |
| D | .92 |
| E | .17 |
| G | .62 |
| M | .38 |
| V | 1.10 |
| Est. Wt. (lbs.) | - |
Components Table
| Description | Req’d per Ass’y | Base No. | -2-4 | -4-4 | -2-5 | -4-5 | -4-6 | -6-6 | -6-8 | -8-10 | -12-12 | Material |
| Nipple | 1 | 4-1252- | 24 | 4-4 | 2-5 | 4-5 | 4-6 | 6-6 | 6-8 | 8-10 | 12-12 | Brass |
| Socket | 1 | 4-1210- | 4 | 4 | 5 | 5 | 6 | 6 | 8 | 10 | 12 | Brass |
