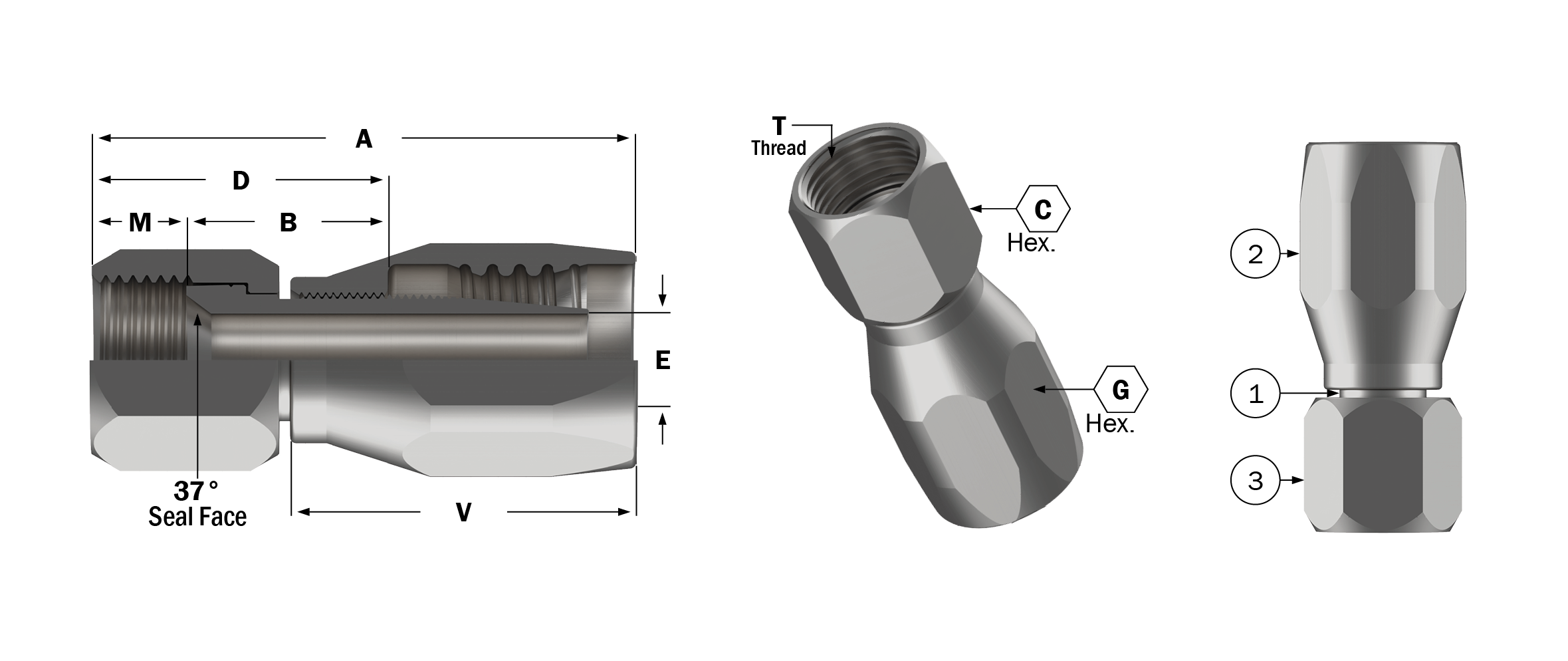

( MIL-DTL-24787/2, Type A, Group VIII, End Fitting - Straight )
Description:
Equal to Aeroquip P/N 4-411,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 4-411-6 |
|---|---|
| Hose Size | 3/8 |
| T Thread CL-2A | 9/16”-18 |
| A | 2.05 |
| B | .77 |
| C | .69 |
| D | 1.15 |
| E | .30 |
| G | .81 |
| M | .38 |
| V | 1.30 |
| Est. Wt. (lbs.) | .20 |
Components Table
| Description | Req’d per Ass’y | Base No. | -4 | -5 | -6 | -8 | -10 | -12 | Material |
| Nipple | 1 | 4-1251- | 4 | 5 | 6 | 8 | 10 | 12 | Monel |
| Socket | 1 | 4-1210- | 4 | 5 | 6 | 8 | 10 | 12 | Monel |
| Nut | 1 | 4-1290- | 4 | 5 | 6 | 8 | 10 | 12 | Monel |
