( MIL-DTL-24787/2, Type A, Group VIII, End Fitting - Straight )
Description:
Equal to Hydrasearch P/N 4-411,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification

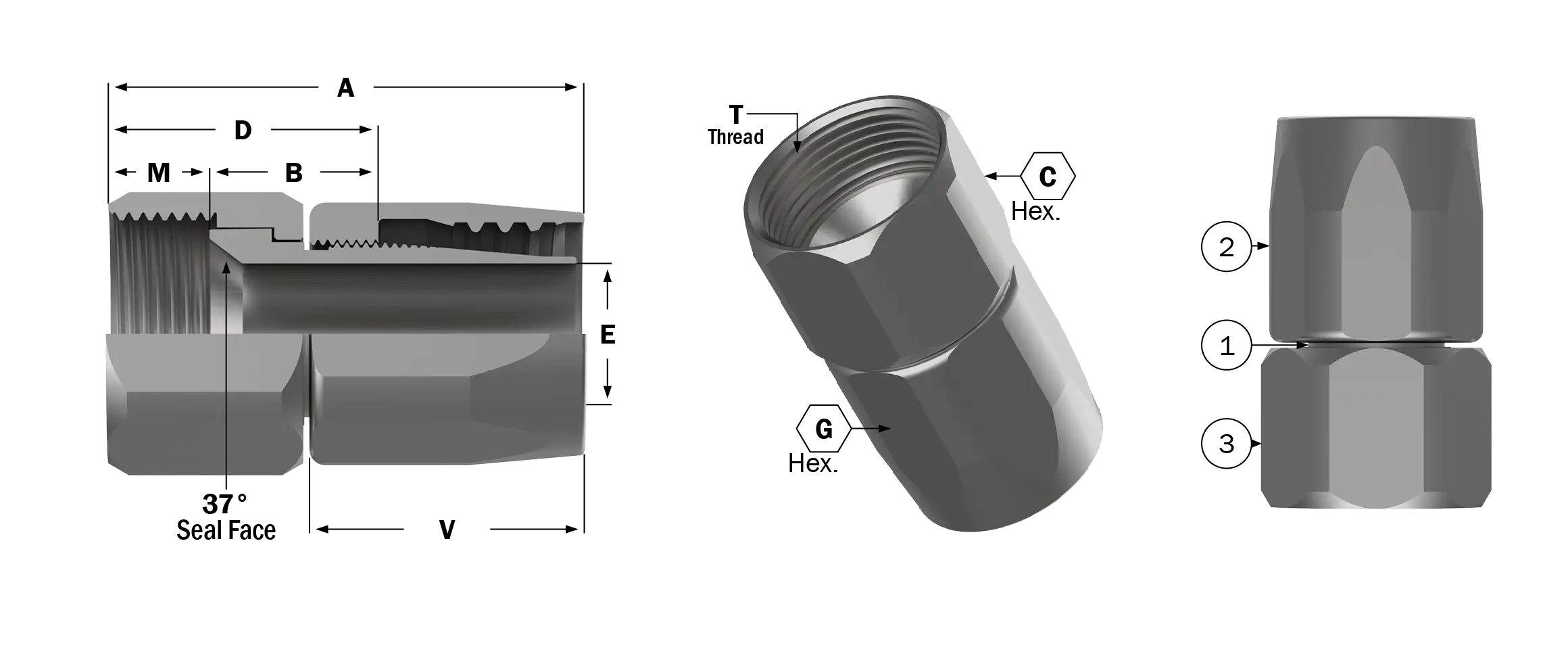

Specification Table
| Part Number | 4-411-24 |
|---|---|
| Hose Size | 1.50 |
| T Thread CL-2A | 1-7/8”-12 |
| A | 3.28 |
| B | 1.09 |
| C | 2.25 |
| D | 1.83 |
| E | 1.28 |
| G | 1.94 |
| M | .74 |
| V | 1.84 |
| Est. Wt. (lbs.) | 1.60 |
Components Table
| Description | Req’d per Ass’y | Base No. | -16 | -20 | -24 | -32 | Material |
| Nipple | 1 | 4-1251- | 16 | 20 | 24 | 32 | Monel |
| Socket | 1 | 4-1212- | 16 | 20 | 24 | 32 | Monel |
| Nut | 1 | 4-1290- | 16 | 20 | 24 | 32 | Monel |
