4-191302-6

4-191302-6

Print Icon Print Download Icon Download PDF

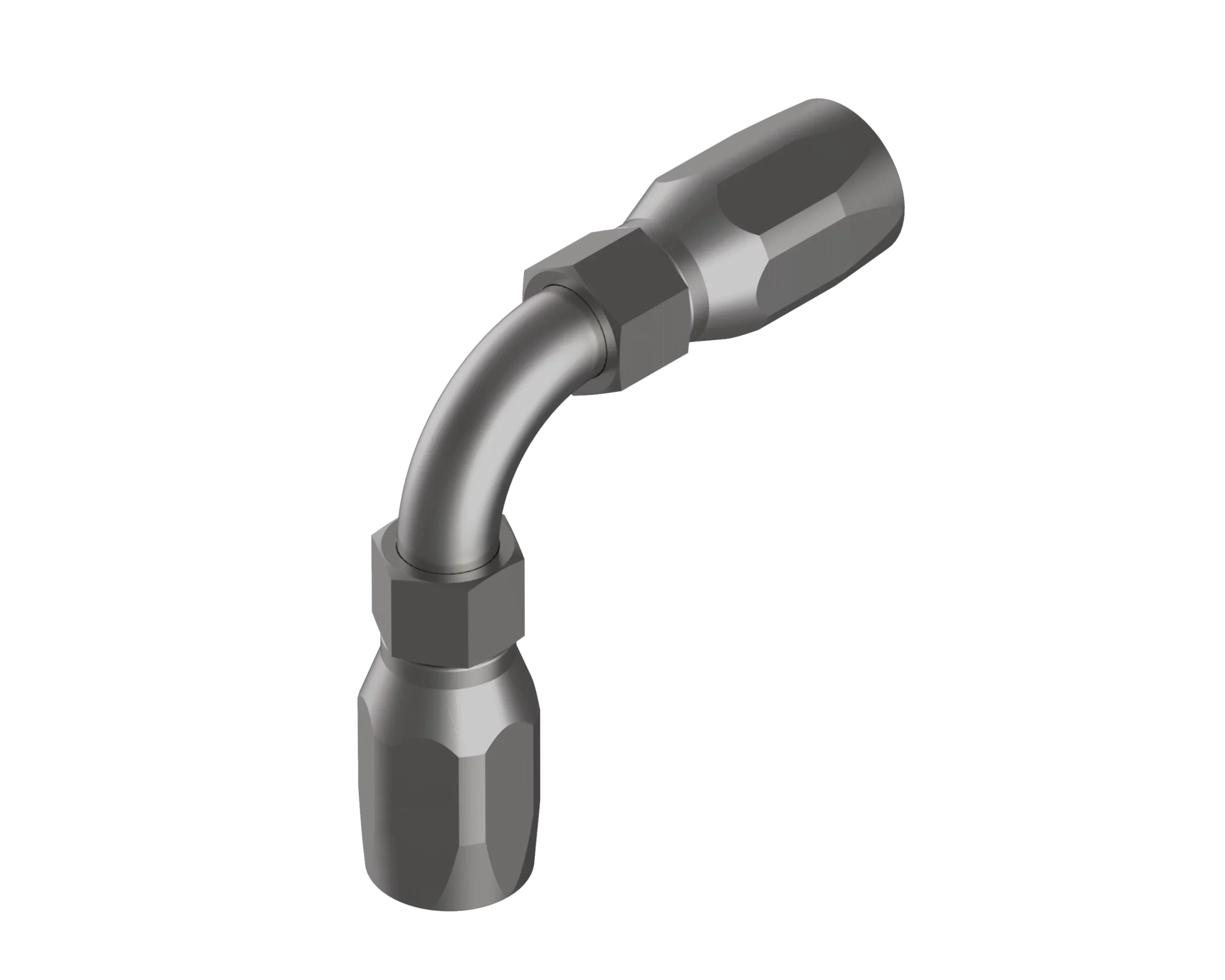

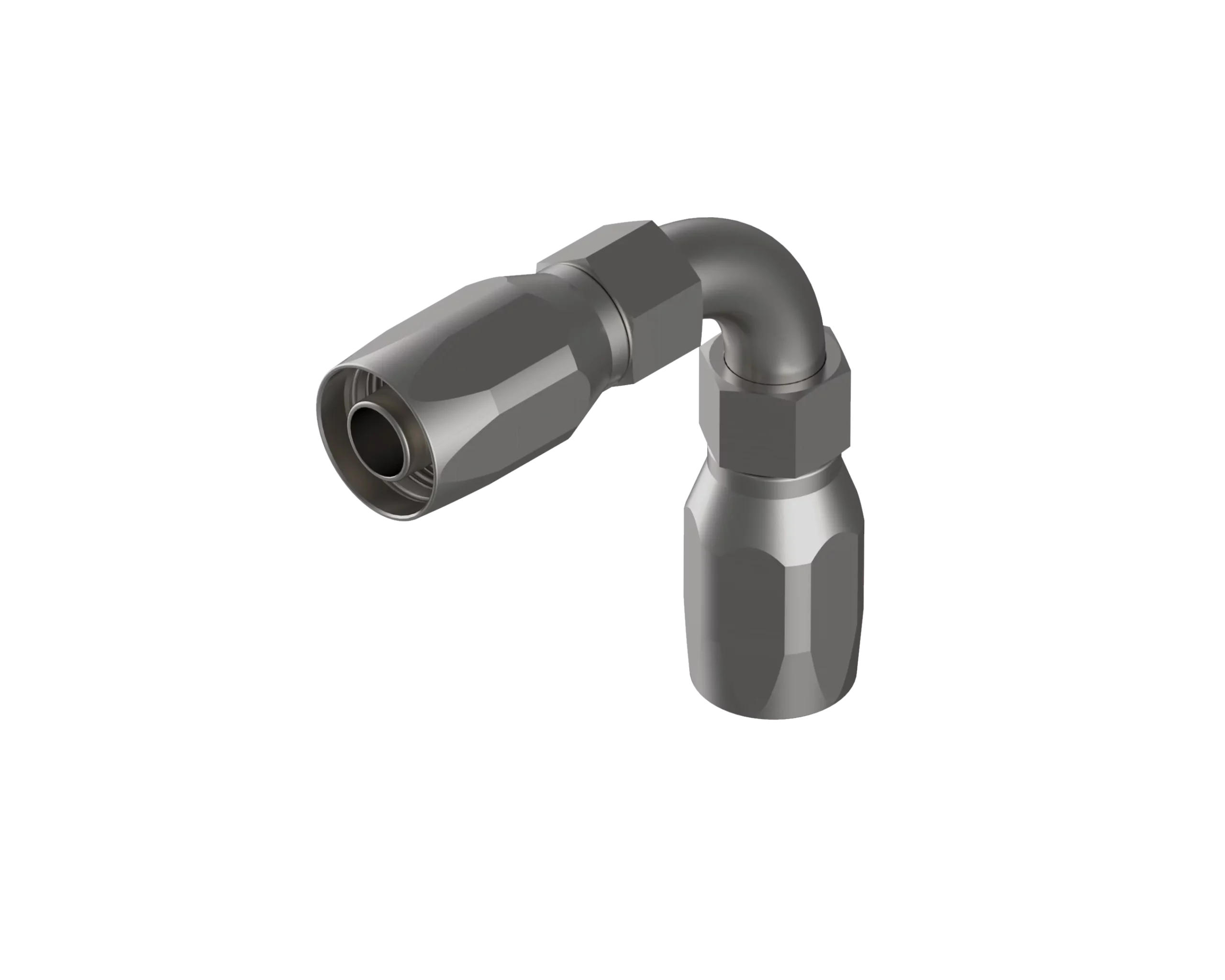

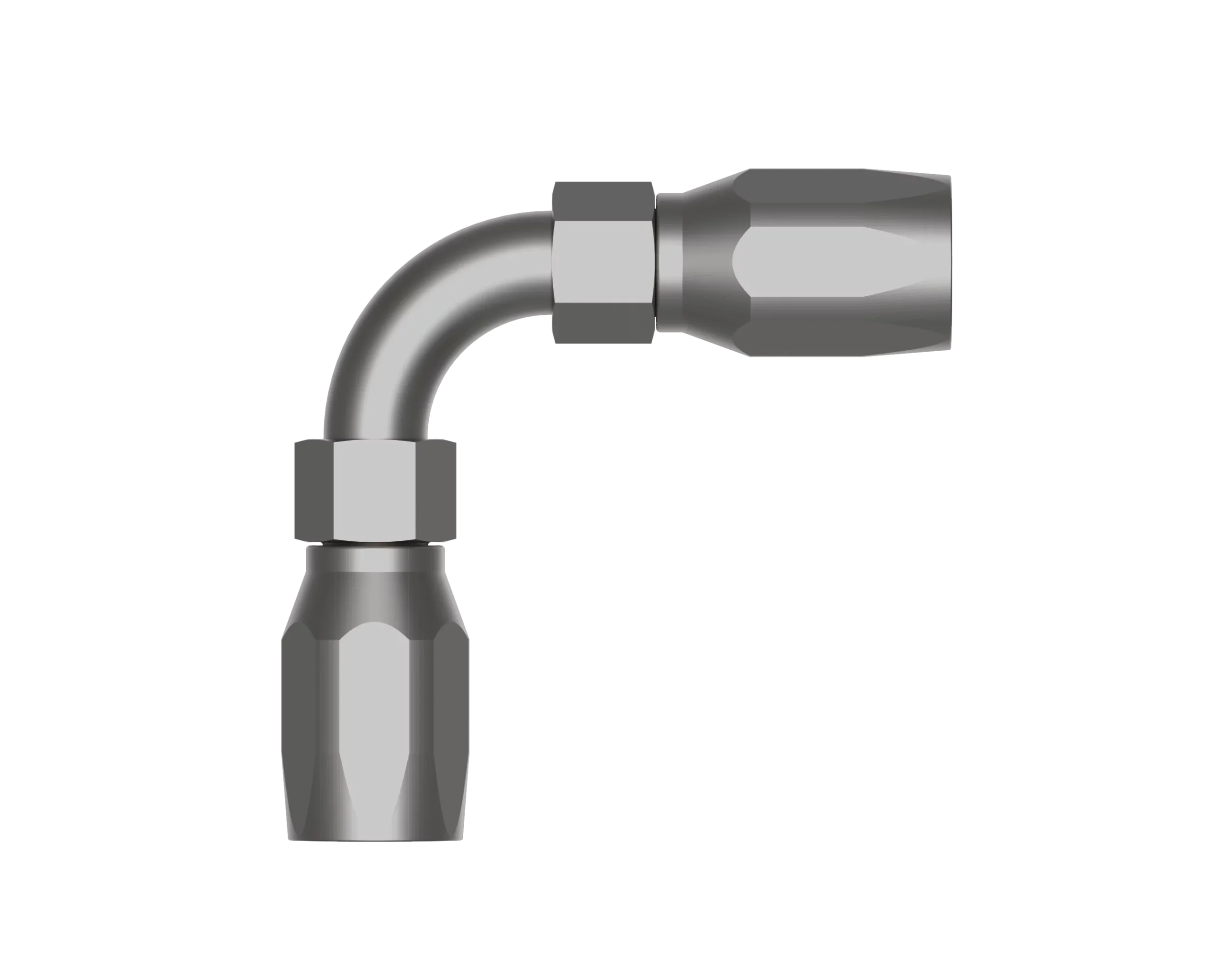

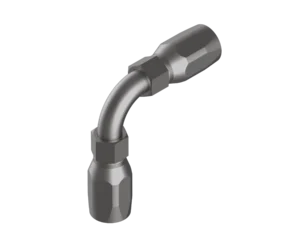

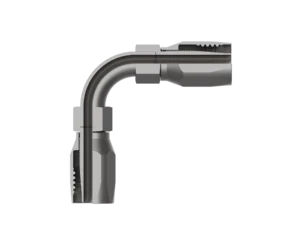

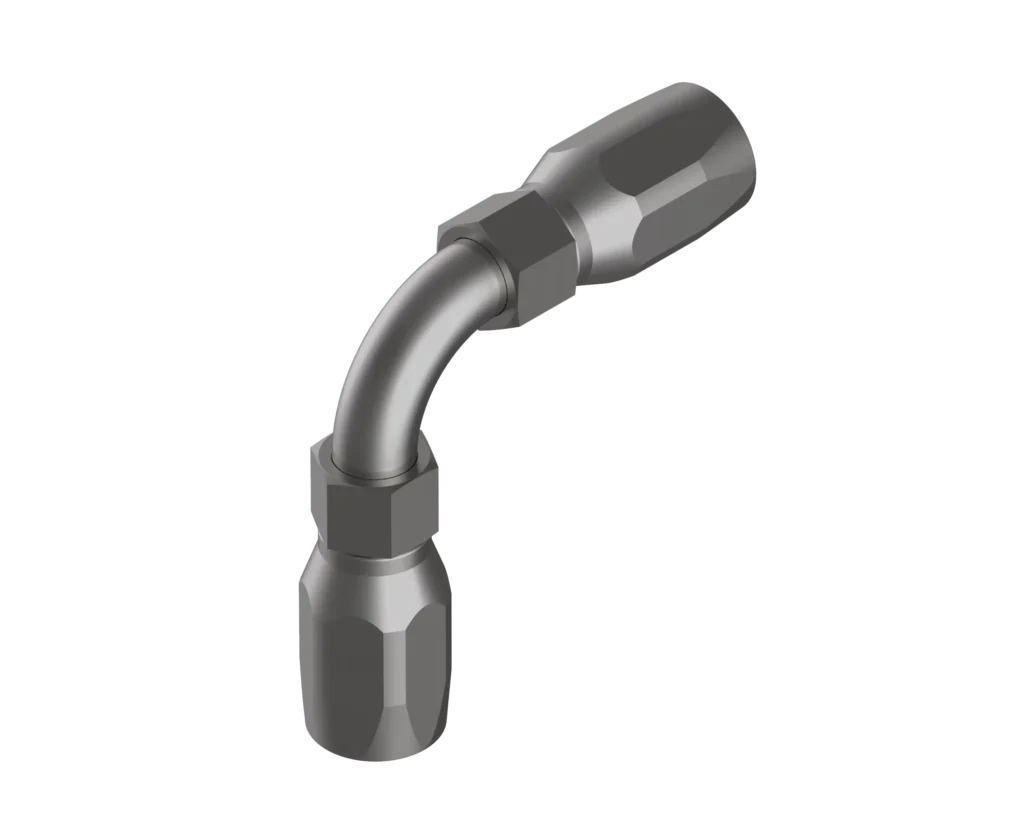

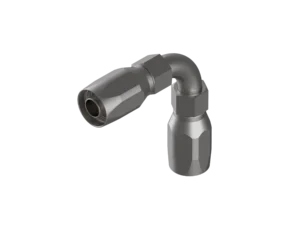

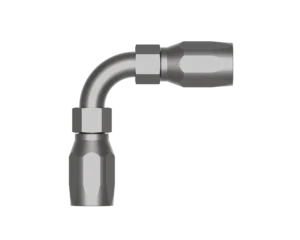

( MIL-DTL-24787/5, Type D, Group VIII, Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 4-191302,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 4-191302-6
  • IPS Size: 3/8
  • A: 2.45
  • C: .56
  • D: 1.55
  • E: .24
  • G: .81
  • N: .58
  • R: .50
  • S: .38
  • V: 1.30
  • Est. Wt. (lbs.): .24

Specification Table

Part Number4-191302-6
IPS Size3/8
A2.45
C.56
D1.55
E.24
G.81
N.58
R.50
S.38
V1.30
Est. Wt. (lbs.).24

Specification Image

4-191302 (SMALL)(1)

Components Table

DescriptionReq’d per Ass’yBase No.0606080810101212Material
Elbow14-419037-681012Monel
Socket24-1210-681012Monel
