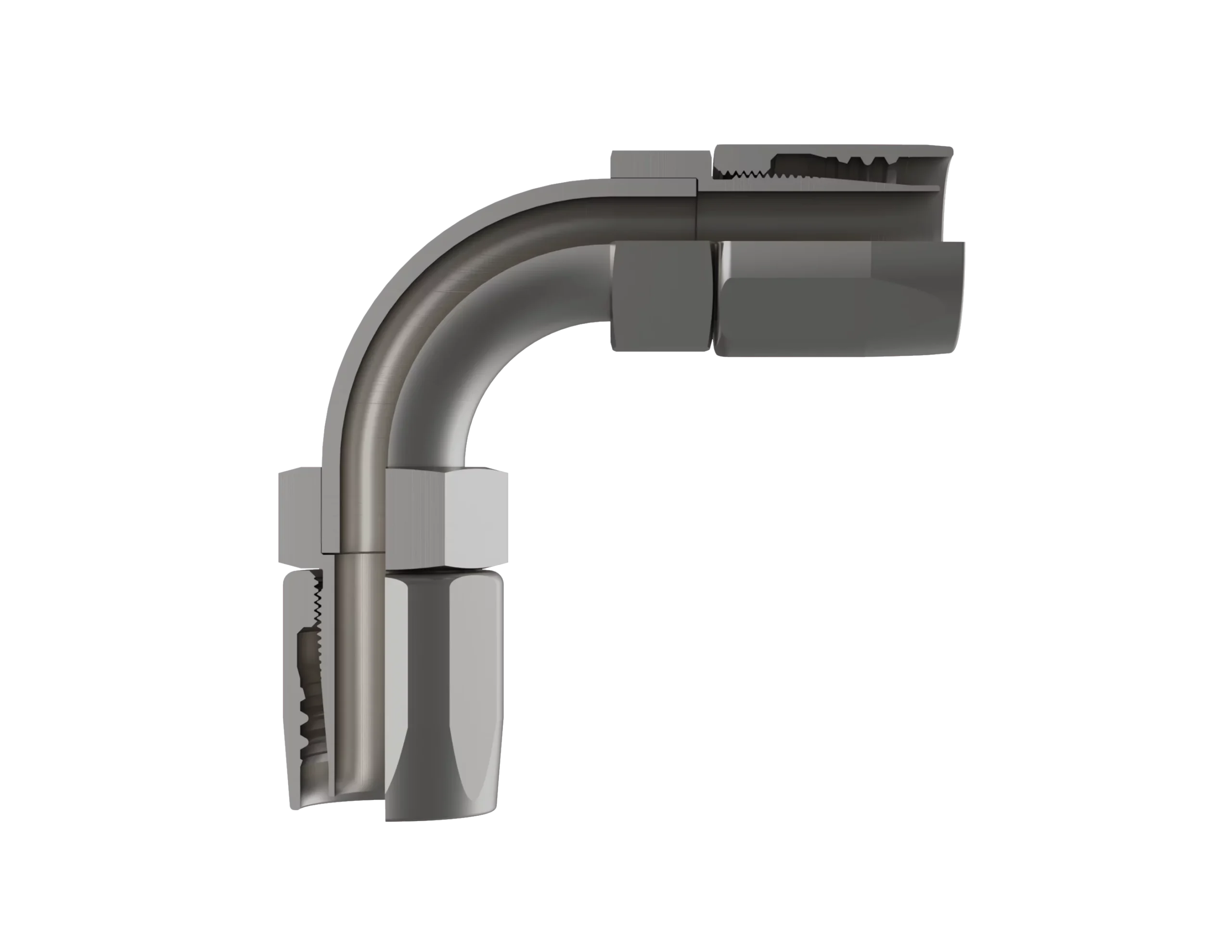

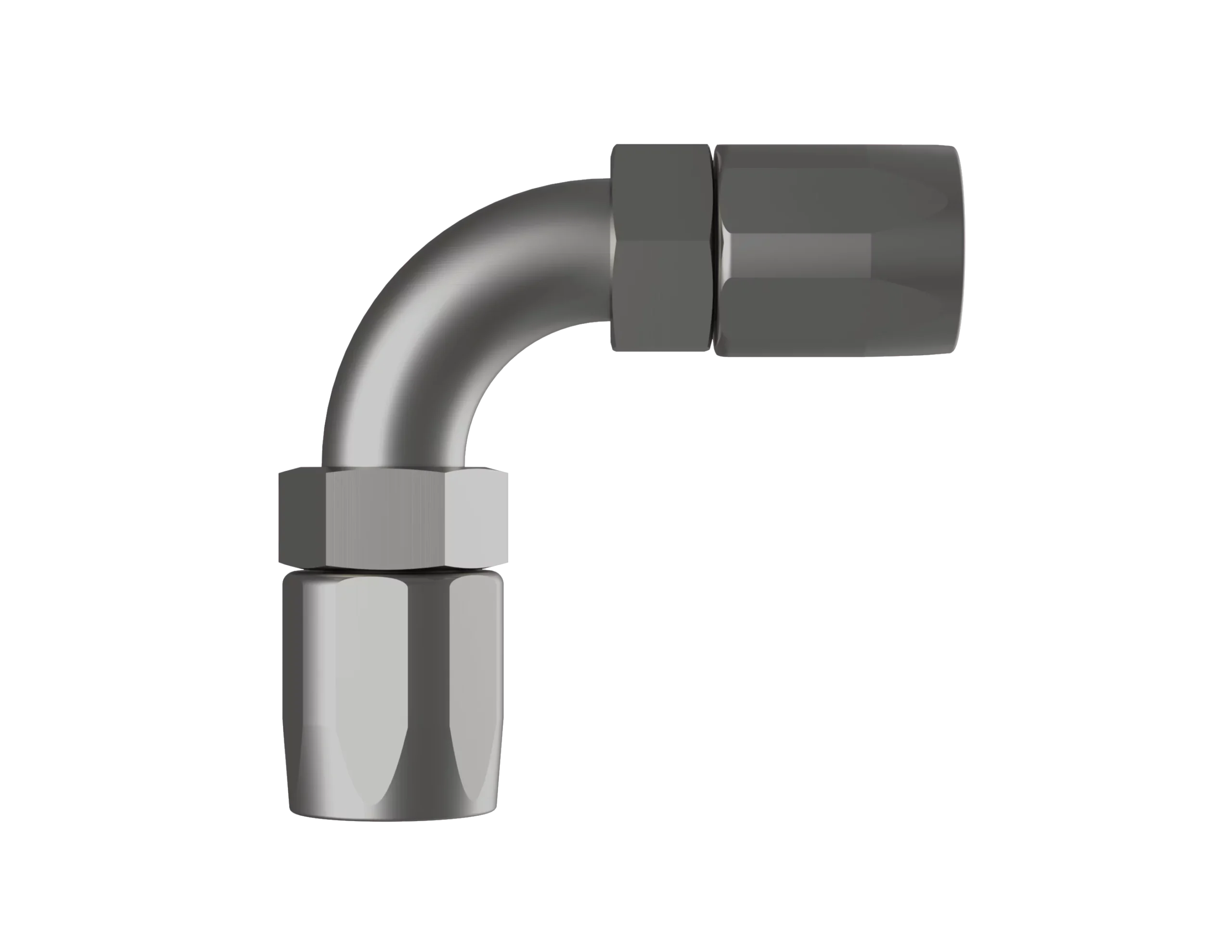

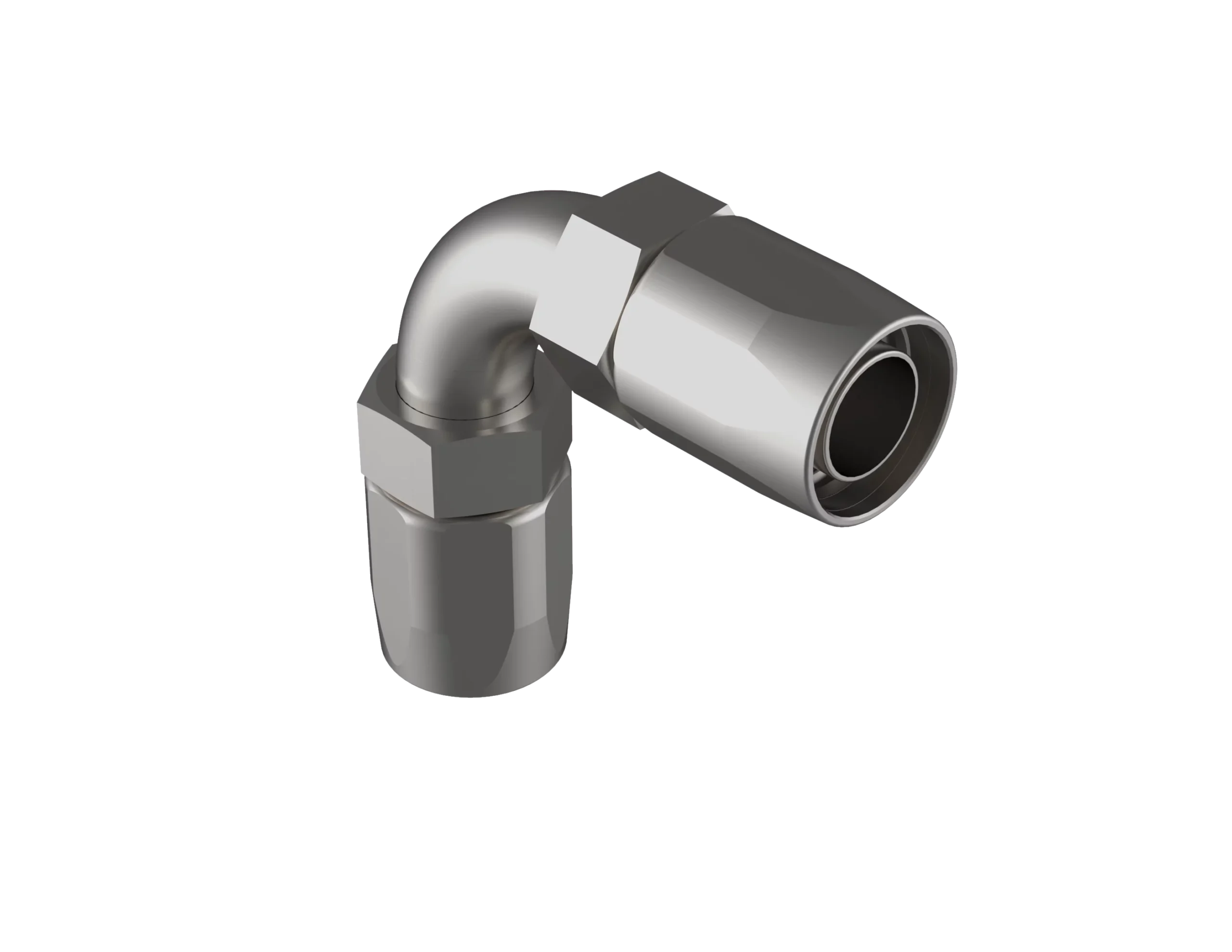

( MIL-DTL-24787/5, Type D, Group VIII, Elbow - 90° Dogleg )

Description:

Equal to Hydrasearch P/N 4-191302,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 4-191302-32
  • IPS Size: 2
  • A: 5.68
  • C: 2.38
  • D: 3.84
  • E: 1.75
  • G: 2.44
  • N: .86
  • R: 2.50
  • S: 2.00
  • V: 2.25
  • Est. Wt. (lbs.): 3.20

Specification Table

Part Number4-191302-32
IPS Size2
A5.68
C2.38
D3.84
E1.75
G2.44
N.86
R2.50
S2.00
V2.25
Est. Wt. (lbs.)3.20

Components Table

DescriptionReq’d per Ass’yBase No.16163232Material
Elbow115-419037-1632Monel
Socket24-1212-1632Monel
