4-191301-3/8-10
4-191301-3/8-10
Print
Download PDF

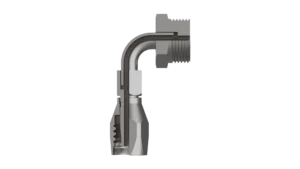

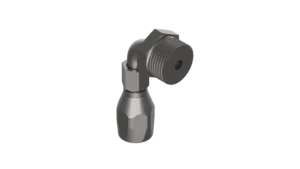

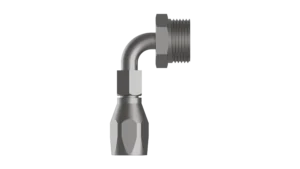

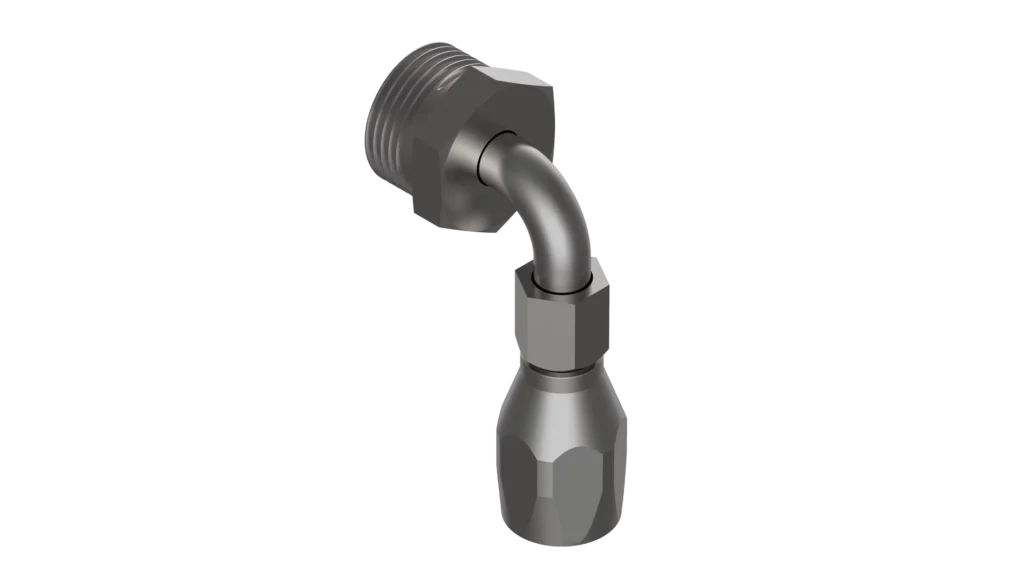

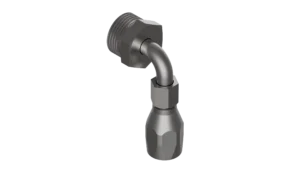

( MIL-DTL-24787/3, Type CL, Group VIII, End Fitting - 90° )
Description:
Equal to Aeroquip P/N 4-191301,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 4-191301-3/8-10 |
|---|---|
| IPS Size | 3/8 |
| T Thread CL-3A | 1-3/8”-12 |
| A | 3.57 |
| C | 1.44 |
| D | 2.28 |
| E | .46 |
| G | 1.12 |
| H | 1.99 |
| M | .62 |
| N | .70 |
| R | 1.00 |
| W | .81 |
| Est. Wt. (lbs.) | .83 |
Specification Image
Components Table
| Description | Req’d per Ass’y | Base No. | 1/8-6 | 1/4-8 | 3/8-10 | 1/2-12 | Material |
| Elbow | 1 | 4-186301- | 1/8-6 | 1/4-8 | 3/8-10 | 1/2-12 | Monel |
| Socket | 1 | 4-1210- | 6 | 8 | 10 | 12 | Monel |
