( MIL-DTL-24787/3, Type CL, Group VIII, End Fitting - 90° )
Description:
Equal to Hydrasearch P/N 4-191301,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 4-191301-3/4-16 |
|---|---|
| IPS Size | 3/4 |
| T Thread CL-3A | 2”-12 |
| A | 3.93 |
| C | 2.12 |
| D | 2.66 |
| E | .82 |
| G | 1.44 |
| H | 2.68 |
| M | .62 |
| N | .70 |
| R | 1.50 |
| W | 1.38 |
| Est. Wt. (lbs.) | 2.01 |

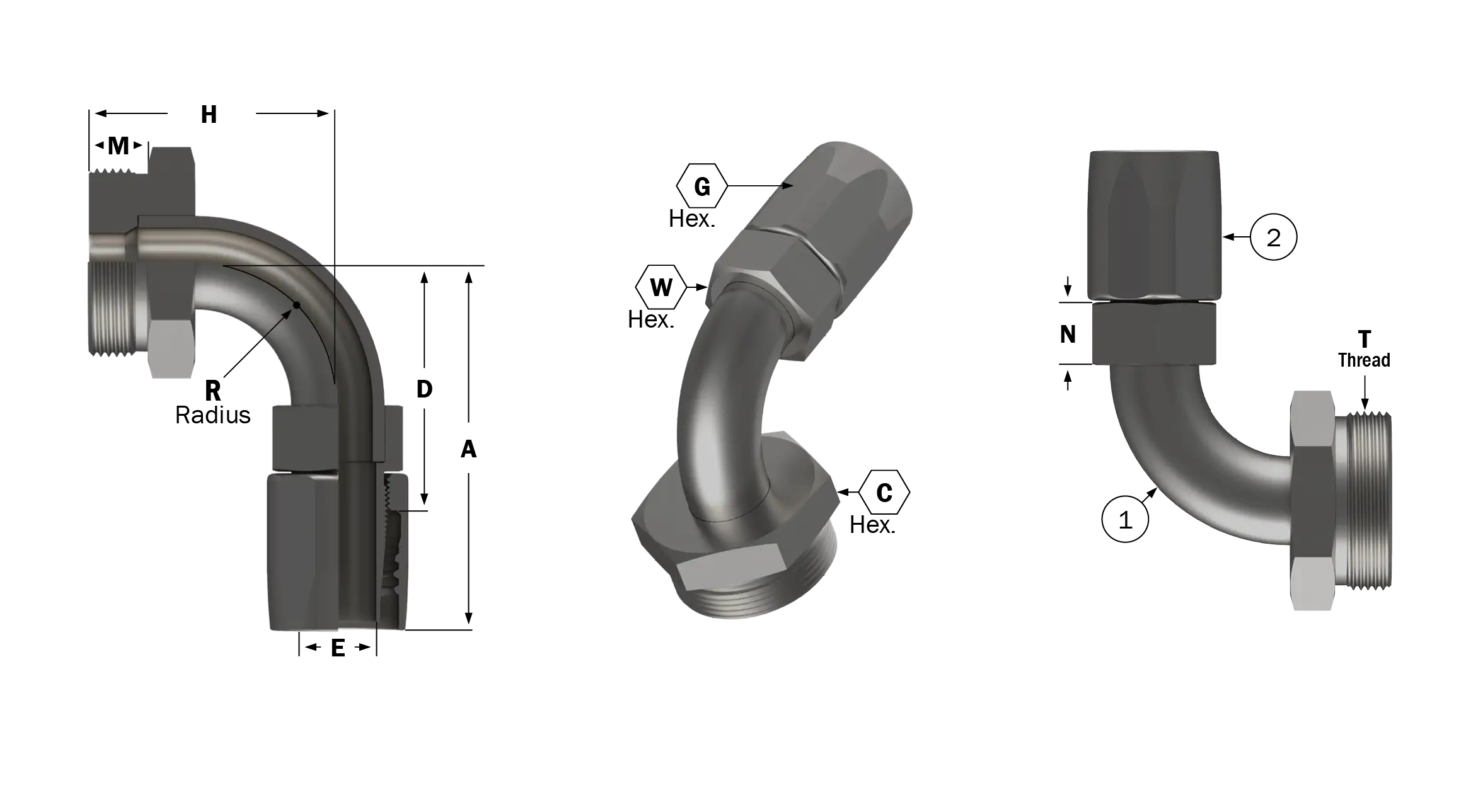

Specification Image
Components Table
| Description | Req’d per Ass’y | Base No. | 3/4-16 | 1-20 | 1.25-24 | 1.5-32 | Material |
| Elbow | 1 | 4-186301- | 3/4-16 | 1-20 | 1.25-24 | 1.5-32 | Copper Nickel & Monel |
| Socket | 1 | 4-1212- | 16 | 20 | 24 | 32 | Monel |
