| Approx Od In | 2.219 |
|---|

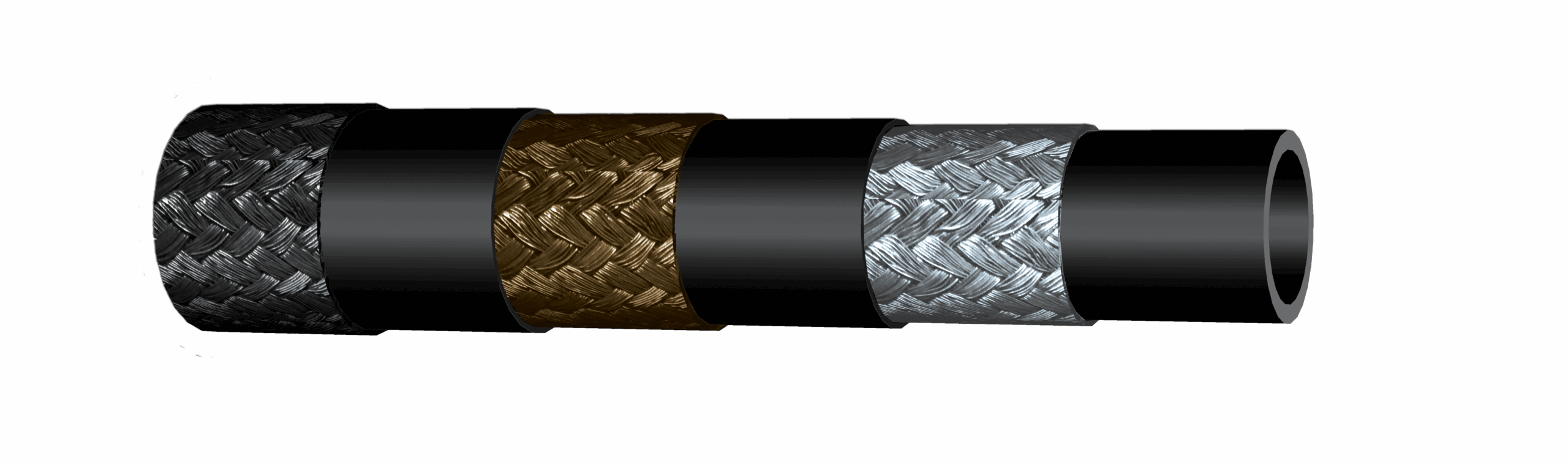

| Construction | A. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton |
|---|
| Hose Size | 2 |
|---|
| Identification | Black Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin |
|---|
| Max Operating Pressure PSI | 350 |
|---|
| Mil Spec | Mil-Dtl-8794 |
|---|
| Min Bend Radius | 13.25 |
|---|
| Min Burst Pressure | 1 |
|---|
| Min Hose Id | 1.813 |
|---|
| Operating Systems | A. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids |
|---|
| Proof Test Pressure Psi | 700 |
|---|
| Weight Per Ft Lbs | 0.75 |
|---|
| Notes | Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. |
|---|
