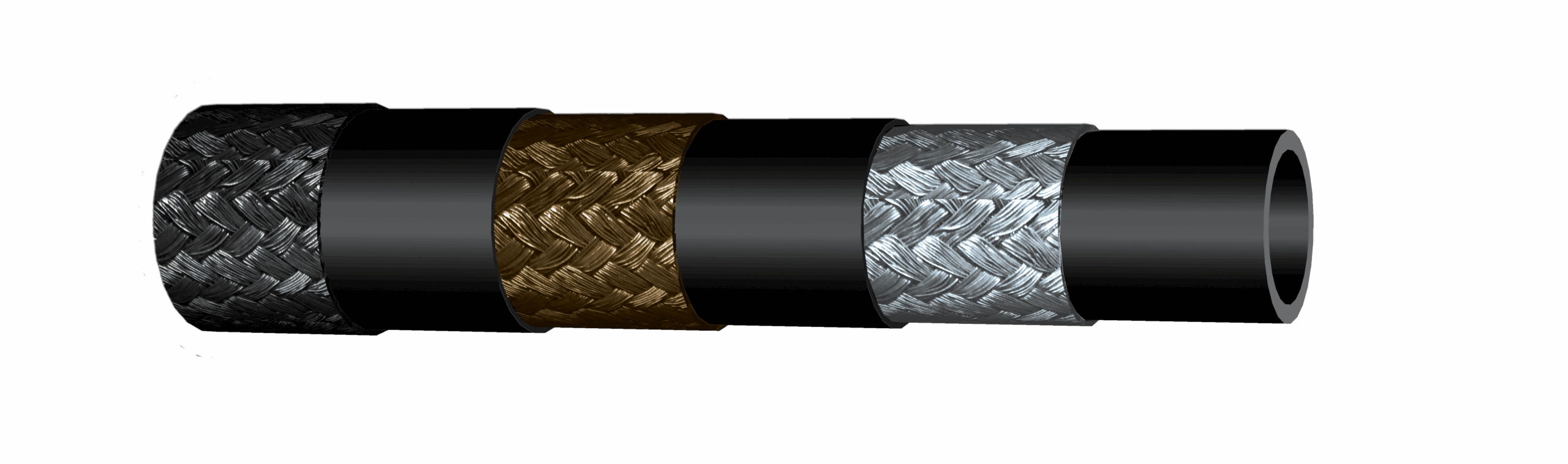

3H-8794-24 – Medium Pressure Hoses

Print Icon Print Download Icon Download PDF

Specification

  • Approx Od In: 1.750
  • Construction: A. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton
  • Hose Size: 1-1/2
  • Identification: Black Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin
  • Max Operating Pressure PSI: 500
  • Mil Spec: Mil-Dtl-8794
  • Min Bend Radius : 11.00
  • Min Burst Pressure: 2
  • Min Hose Id: 1.375
  • NSN No.: 4720-00-289-9199
  • Operating Systems: A. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids
  • Proof Test Pressure Psi: 1
  • Weight Per Ft Lbs: 0.62

Specification Table

Approx Od In1.750
ConstructionA. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton
Hose Size1-1/2
IdentificationBlack Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin
Max Operating Pressure PSI500
Mil SpecMil-Dtl-8794
Min Bend Radius 11.00
Min Burst Pressure2
Min Hose Id1.375
NSN No.4720-00-289-9199
Operating SystemsA. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids
Proof Test Pressure Psi1
Weight Per Ft Lbs0.62
