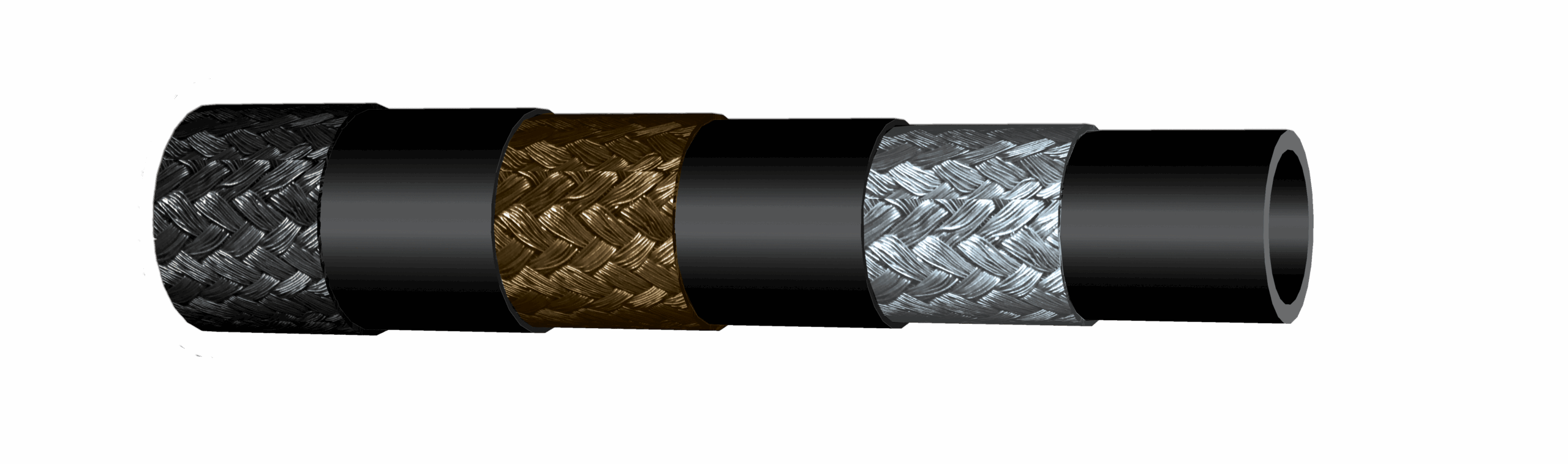

medium pressure hose 3h 8794 031 8 scaled
medium pressure hose 3h 8794 031 8 scaled
3H-8794-16

3H-8794-16 – Medium Pressure Hoses

Print Icon Print Download Icon Download PDF

Specification

  • Approx Od In: 1.234
  • Construction: A. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton
  • Hose Size: 1
  • Identification: Black Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin
  • Max Operating Pressure PSI: 800
  • Mil Spec: Mil-Dtl-8794
  • Min Bend Radius : 7.375
  • Min Burst Pressure: 3
  • Min Hose Id: 0.875
  • NSN No.: 4720-00-595-1088
  • Operating Systems: A. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids
  • Proof Test Pressure Psi: 1
  • Weight Per Ft Lbs: 0.43

Specification Table

Approx Od In1.234
ConstructionA. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton
Hose Size1
IdentificationBlack Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin
Max Operating Pressure PSI800
Mil SpecMil-Dtl-8794
Min Bend Radius 7.375
Min Burst Pressure3
Min Hose Id0.875
NSN No.4720-00-595-1088
Operating SystemsA. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids
Proof Test Pressure Psi1
Weight Per Ft Lbs0.43
