3H-8794-04

3H-8794-04 – Medium Pressure Hoses

Print Icon Print Download Icon Download PDF

Specification

  • Approx Od In: 0.516

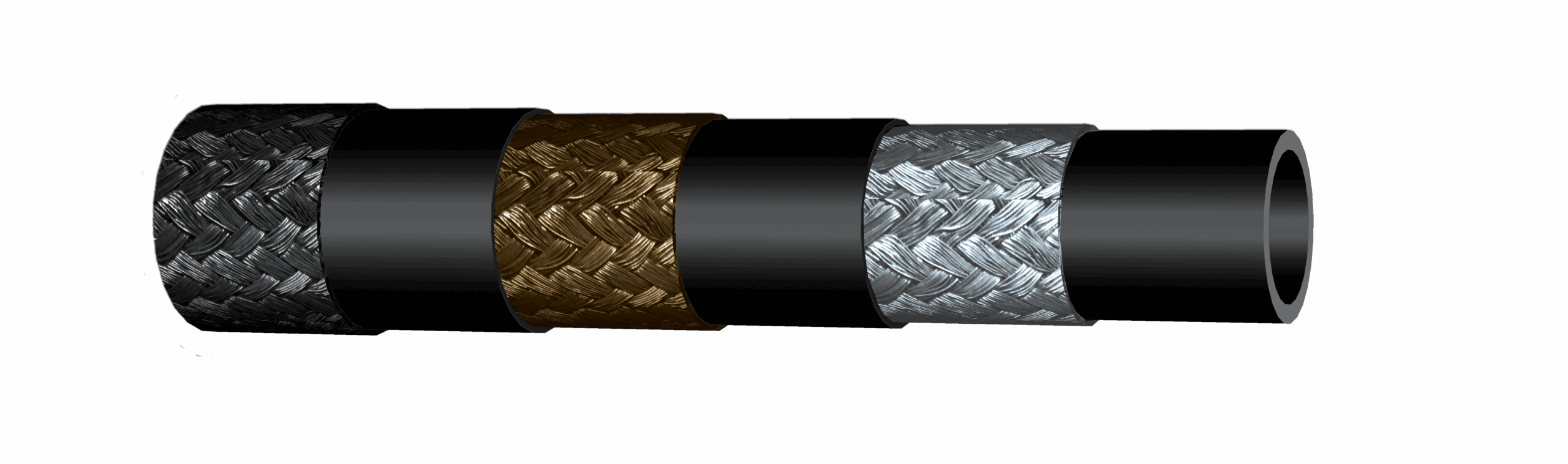

  • Construction: A. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton
  • Hose Size: 1/4
  • Identification: Black Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin
  • Max Operating Pressure PSI: 3
  • Mil Spec: Mil-Dtl-8794
  • Min Bend Radius : 3.000
  • Min Burst Pressure: 12
  • Min Hose Id: 0.188
  • NSN No.: 4720-00-639-9907
  • Operating Systems: A. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids
  • Proof Test Pressure Psi: 6
  • Weight Per Ft Lbs: 0.16

Specification Table

Approx Od In0.516
ConstructionA. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton
Hose Size1/4
IdentificationBlack Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin
Max Operating Pressure PSI3
Mil SpecMil-Dtl-8794
Min Bend Radius 3.000
Min Burst Pressure12
Min Hose Id0.188
NSN No.4720-00-639-9907
Operating SystemsA. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids
Proof Test Pressure Psi6
Weight Per Ft Lbs0.16
