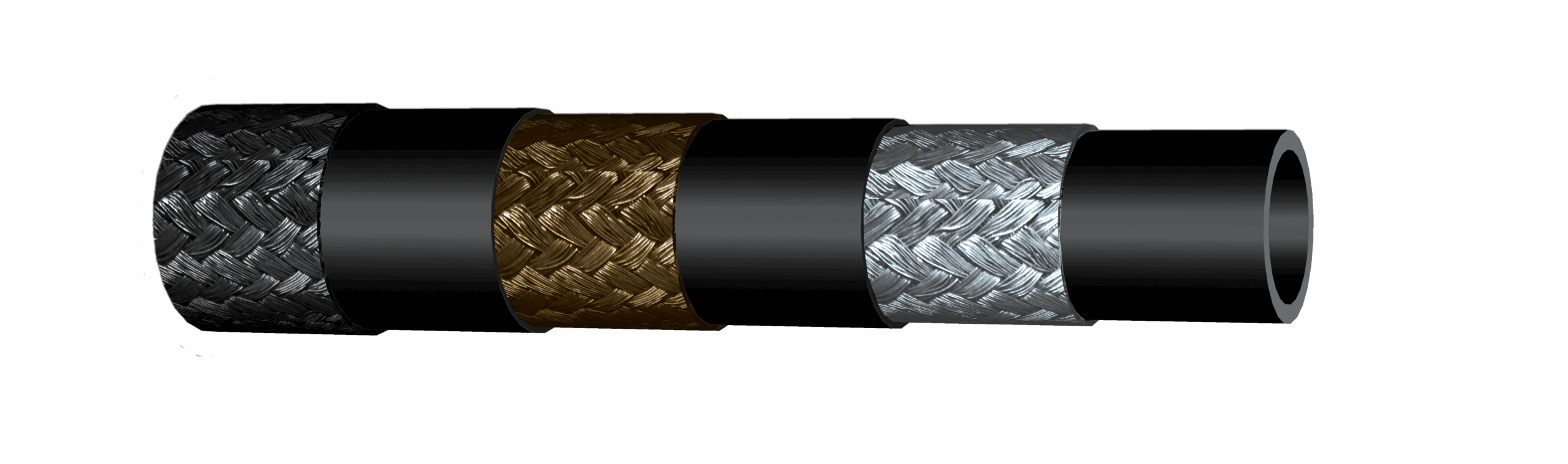

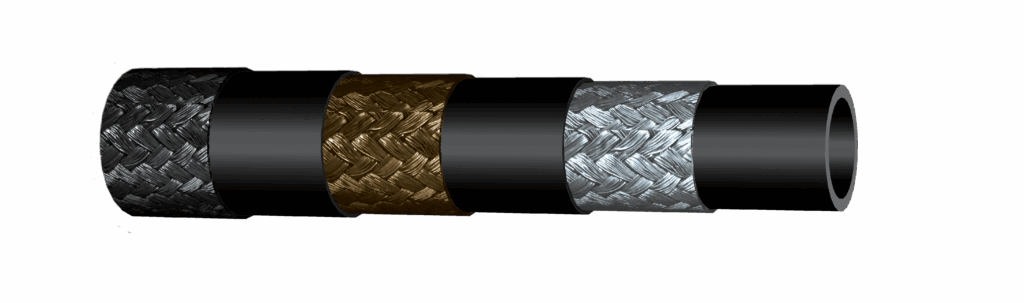

3H-8794-03 – Medium Pressure Hoses

Print Icon Print Download Icon Download PDF

Specification

  • Approx Od In: 0.453
  • Construction: A. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton
  • Hose Size: 3/16
  • Identification: Black Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin
  • Max Operating Pressure PSI: 3
  • Mil Spec: Mil-Dtl-8794
  • Min Bend Radius : 3.000
  • Min Burst Pressure: 12
  • Min Hose Id: 0.125
  • Operating Systems: A. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids
  • Proof Test Pressure Psi: 6
  • Weight Per Ft Lbs: 0.12
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

Approx Od In0.453
ConstructionA. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton
Hose Size3/16
IdentificationBlack Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin
Max Operating Pressure PSI3
Mil SpecMil-Dtl-8794
Min Bend Radius 3.000
Min Burst Pressure12
Min Hose Id0.125
Operating SystemsA. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids
Proof Test Pressure Psi6
Weight Per Ft Lbs0.12
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
