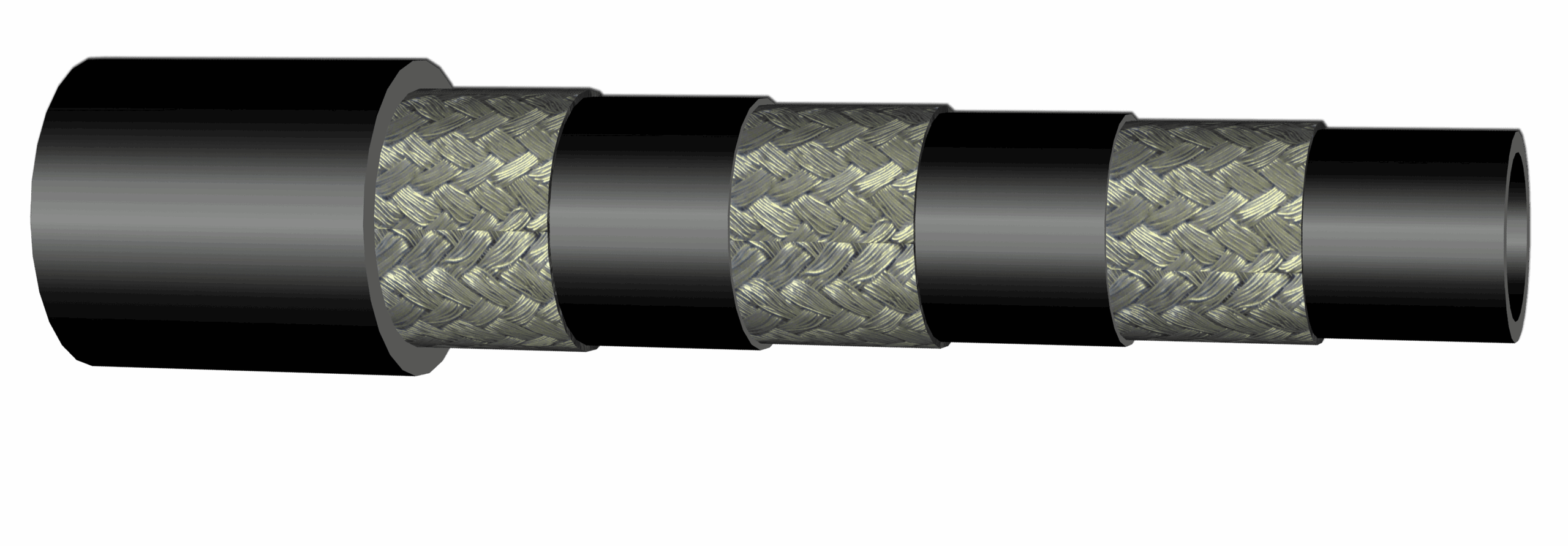

high pressure hose assembly iaw mil dtl 87881 5 scaled
high pressure hose assembly iaw mil dtl 87881 5 scaled
3H-8788-12

3H-8788-12 – High Pressure Hoses

Print Icon Print Download Icon Download PDF

Specification

  • Approx Od In: 1.219
  • Construction: A. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Sizes 4-12 Are Double Wire Braided. Size 16 Is Triple Wire Braided. C. Outer Cover: Oil And Fuel Resistant Synt
  • Hose Id: 0.688
  • Hose Size: 3/4
  • Identification: Black Cover With Yellow Lay Line Indicating The Specification Pin
  • Max Operating Pressure PSI: 3
  • Mil Spec: Mil-Dtl-8788
  • Min Bend Radius : 7.750
  • Min Burst Pressure: 12
  • Operating Systems: A. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +160°F. D. Internal Fluids
  • Proof Test Pressure Psi: 6
  • Weight Per Ft Lbs: 0.688
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

Approx Od In1.219
ConstructionA. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Sizes 4-12 Are Double Wire Braided. Size 16 Is Triple Wire Braided. C. Outer Cover: Oil And Fuel Resistant Synt
Hose Id0.688
Hose Size3/4
IdentificationBlack Cover With Yellow Lay Line Indicating The Specification Pin
Max Operating Pressure PSI3
Mil SpecMil-Dtl-8788
Min Bend Radius 7.750
Min Burst Pressure12
Operating SystemsA. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +160°F. D. Internal Fluids
Proof Test Pressure Psi6
Weight Per Ft Lbs0.688
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
