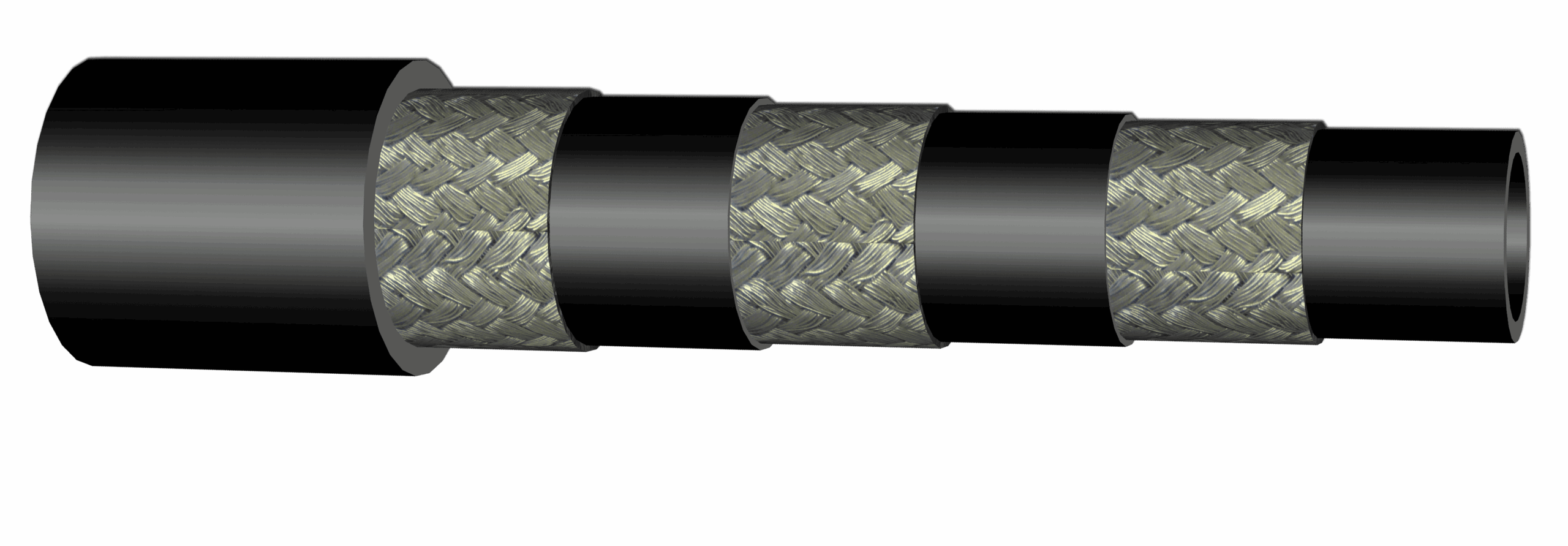

high pressure hose assembly iaw mil dtl 87881 1 scaled
high pressure hose assembly iaw mil dtl 87881 1 scaled
3H-8788-05

3H-8788-05 – High Pressure Hoses

Print Icon Print Download Icon Download PDF

Specification

  • Approx Od In: 0.703
  • Construction: A. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Sizes 4-12 Are Double Wire Braided. Size 16 Is Triple Wire Braided. C. Outer Cover: Oil And Fuel Resistant Synt
  • Hose Id: 0.281
  • Hose Size: 5/16
  • Identification: Black Cover With Yellow Lay Line Indicating The Specification Pin
  • Max Operating Pressure PSI: 3
  • Mil Spec: Mil-Dtl-8788
  • Min Bend Radius : 3.375
  • Min Burst Pressure: 14
  • Operating Systems: A. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +160°F. D. Internal Fluids
  • Proof Test Pressure Psi: 7
  • Weight Lbs Per Ft: 0.281
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

Approx Od In0.703
ConstructionA. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Sizes 4-12 Are Double Wire Braided. Size 16 Is Triple Wire Braided. C. Outer Cover: Oil And Fuel Resistant Synt
Hose Id0.281
Hose Size5/16
IdentificationBlack Cover With Yellow Lay Line Indicating The Specification Pin
Max Operating Pressure PSI3
Mil SpecMil-Dtl-8788
Min Bend Radius 3.375
Min Burst Pressure14
Operating SystemsA. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +160°F. D. Internal Fluids
Proof Test Pressure Psi7
Weight Lbs Per Ft0.281
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
