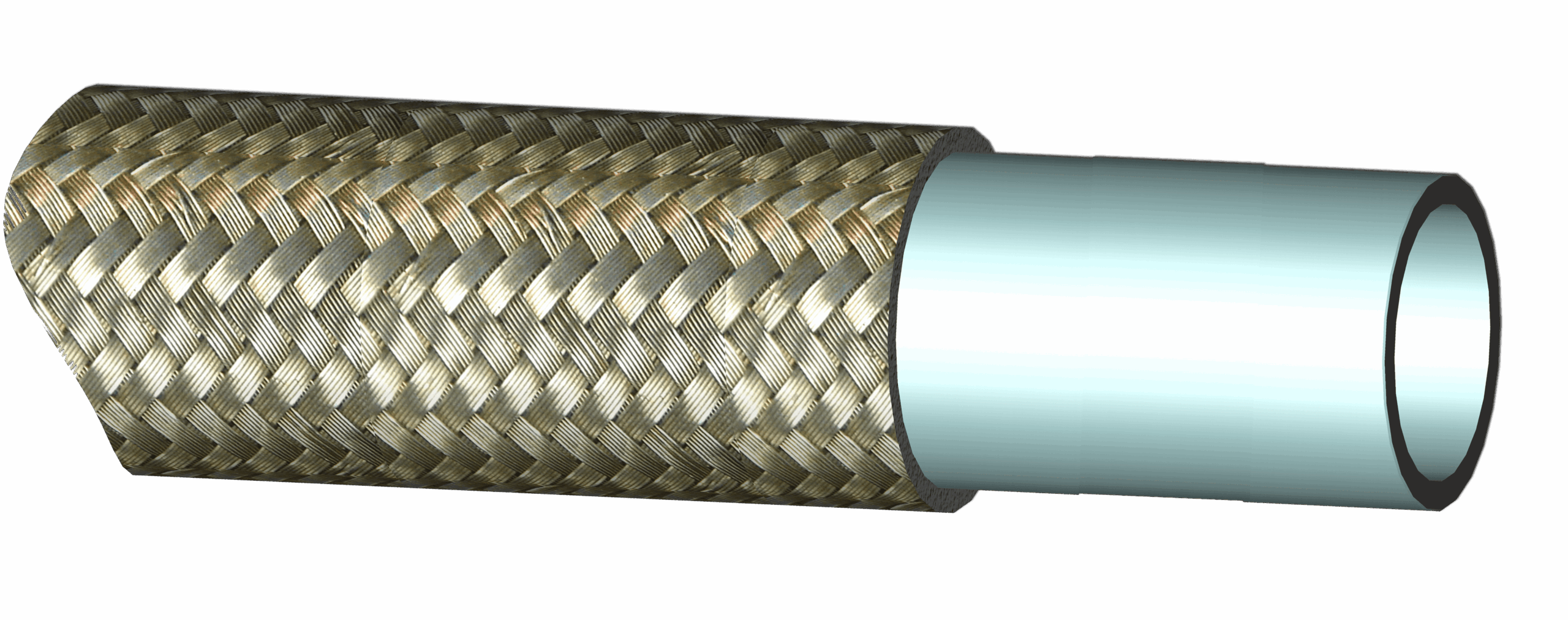

medium pressure ptfe hose assembly section iaw mil dtl 272671 5 scaled
medium pressure ptfe hose assembly section iaw mil dtl 272671 5 scaled
3H-379-12

3H-379-12 – Medium Pressure TFE Hoses

Print Icon Print Download Icon Download PDF

Specification

  • Approx Weight Per In Lbs: 0.0197
  • Hose Size: 3/4
  • Max Operating Pressure PSI: 1
  • Mil Spec: Mil-Dtl-27267
  • Min Bend Radius : 6.50
  • Min Burst Pressure: 5
  • Nominal Hose Id In: 0.625
  • Nominal Hose Od In: 0.789
  • NSN No.: 4720-00-973-5484
  • Proof Test Pressure Psi: 2
  • Size No: -12

Specification Table

Approx Weight Per In Lbs0.0197
Hose Size3/4
Max Operating Pressure PSI1
Mil SpecMil-Dtl-27267
Min Bend Radius 6.50
Min Burst Pressure5
Nominal Hose Id In0.625
Nominal Hose Od In0.789
NSN No.4720-00-973-5484
Proof Test Pressure Psi2
Size No-12
