| Application | Aircraft Power Plant And Airframe Oil And Fuel Lines. Hydraulic Applications Must Have Hydrasearch Approval. |
|---|

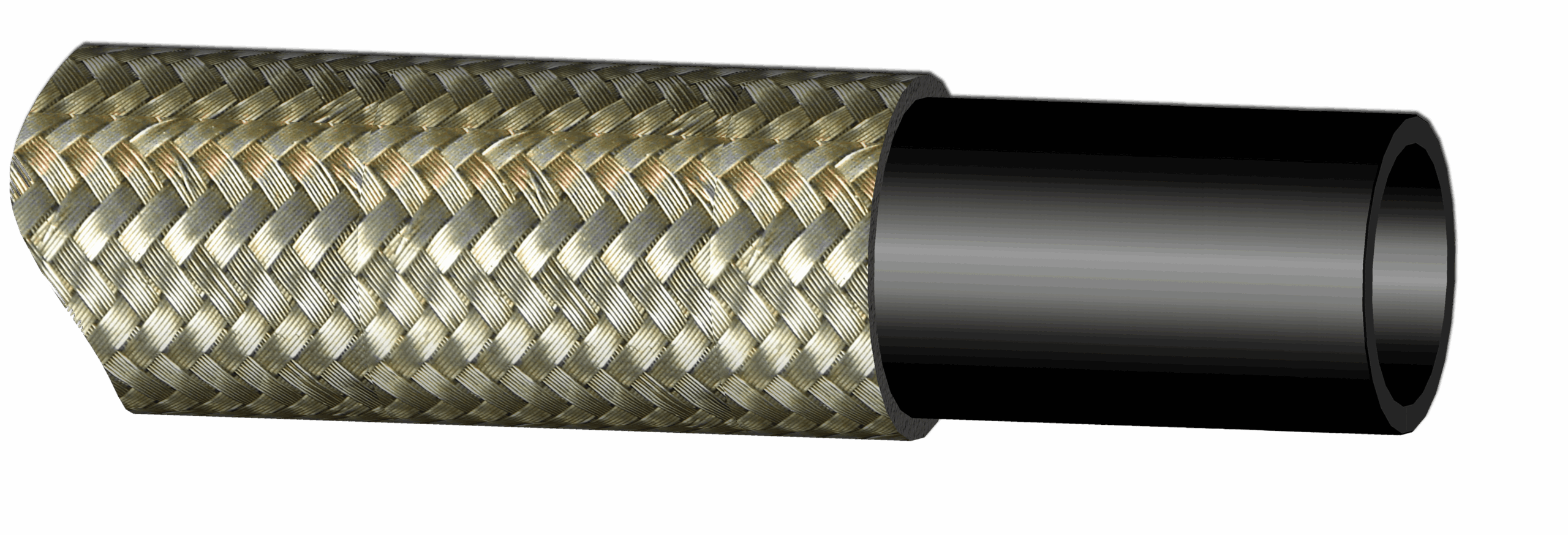

| Construction | A. Inner Tube: Synthetic Rubber Or Copolymer. B. Reinforcement: Stainless Steel Wire Braid (Partial Inner Braid). C. Outer Cover: Full Coverage |
|---|
| Hose Id | 1.125 |
|---|
| Hose Od In | 1.437 |
|---|
| Hose Size | 1-1/4 |
|---|
| Identification | Stainless Steel Wire Braid Outer Cover Band With The Specification Pin |
|---|
| Max Operating Pressure PSI | 500 |
|---|
| Mil Hose Part No | M83797/1-20-Xxxx |
|---|
| Mil Spec | Mil-Dtl-83797 |
|---|
| Min Bend Radius | 8.00 |
|---|
| Min Burst Pressure | 2 |
|---|
| Operating Systems | A. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids |
|---|
| Proof Test Pressure Psi | 1 |
|---|
| Weight Lbs Per In | 0.051 |
|---|
| Notes | Mil Hose Part No.: Xxxx – The First Three Digits Indicate Length In Inches. The Fourth Digit Indicates Eighths Of An Inch. Dimensional Information Is For Reference Only. Variations From T |
|---|
