38B0100006D0000

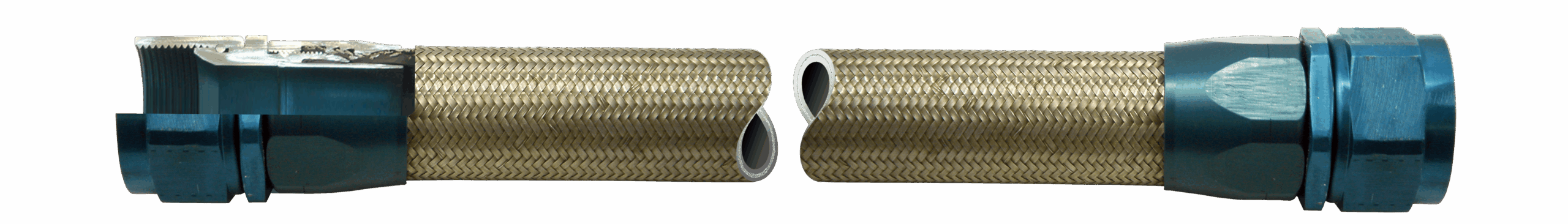

38B0100006D0000 – Lightweight Medium Pressure Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Finish: Aluminum Alloy
  • Fitting Mil Spec: Mil-Dtl-83798
  • Hose Assembly Mil Spec: Mil-Dtl-83796
  • Hose Mil Spec: Mil-Dtl-83797
  • Hose Size: 3/8
  • Material: AluminumAluminum And Steel Are To Be In Accordance With Table I Of Mil-Dtl-83798.
  • NSN No.: 9/16"-18
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

FinishAluminum Alloy
Fitting Mil SpecMil-Dtl-83798
Hose Assembly Mil SpecMil-Dtl-83796
Hose Mil SpecMil-Dtl-83797
Hose Size3/8
MaterialAluminumAluminum And Steel Are To Be In Accordance With Table I Of Mil-Dtl-83798.
NSN No.9/16"-18
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
