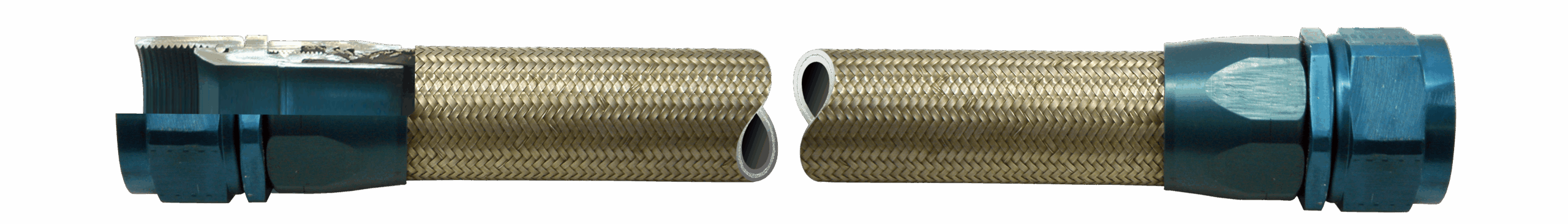

38B0100003F0000 – Lightweight Medium Pressure Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Finish: Aluminum Alloy
  • Fitting Mil Spec: Mil-Dtl-83798
  • Hose Assembly Mil Spec: Mil-Dtl-83796
  • Hose Mil Spec: Mil-Dtl-83797
  • Hose Size: 3/16
  • Material: Steel Insert Assemblies With Aluminum Sockets.Aluminum And Steel Are To Be In Accordance With Table I Of Mil-Dtl-83798.
  • Thread Size - T: 3/8"-24
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

FinishAluminum Alloy
Fitting Mil SpecMil-Dtl-83798
Hose Assembly Mil SpecMil-Dtl-83796
Hose Mil SpecMil-Dtl-83797
Hose Size3/16
MaterialSteel Insert Assemblies With Aluminum Sockets.Aluminum And Steel Are To Be In Accordance With Table I Of Mil-Dtl-83798.
Thread Size - T3/8"-24
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
