375-190911-3/4-16
375-190911-3/4-16
Print
Download PDF

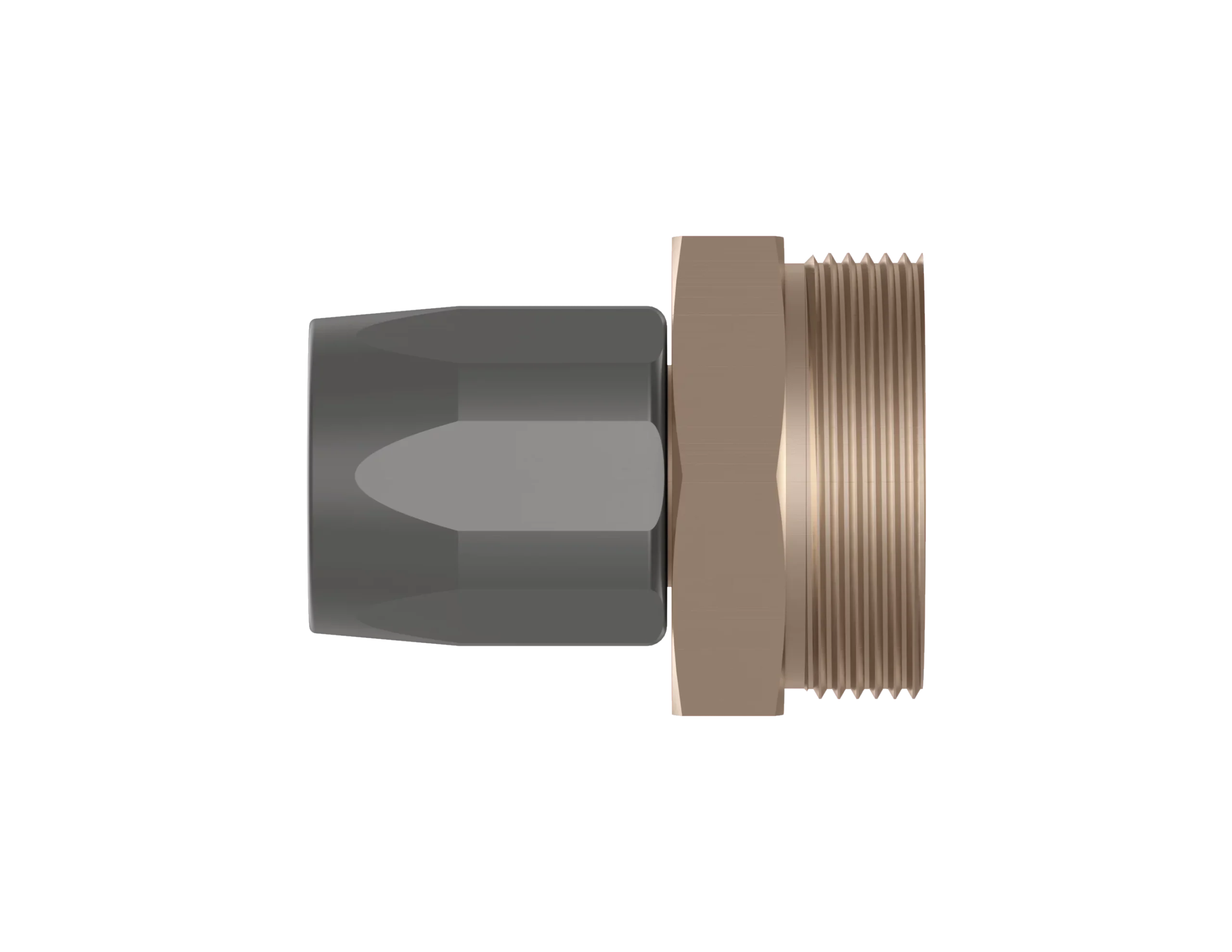

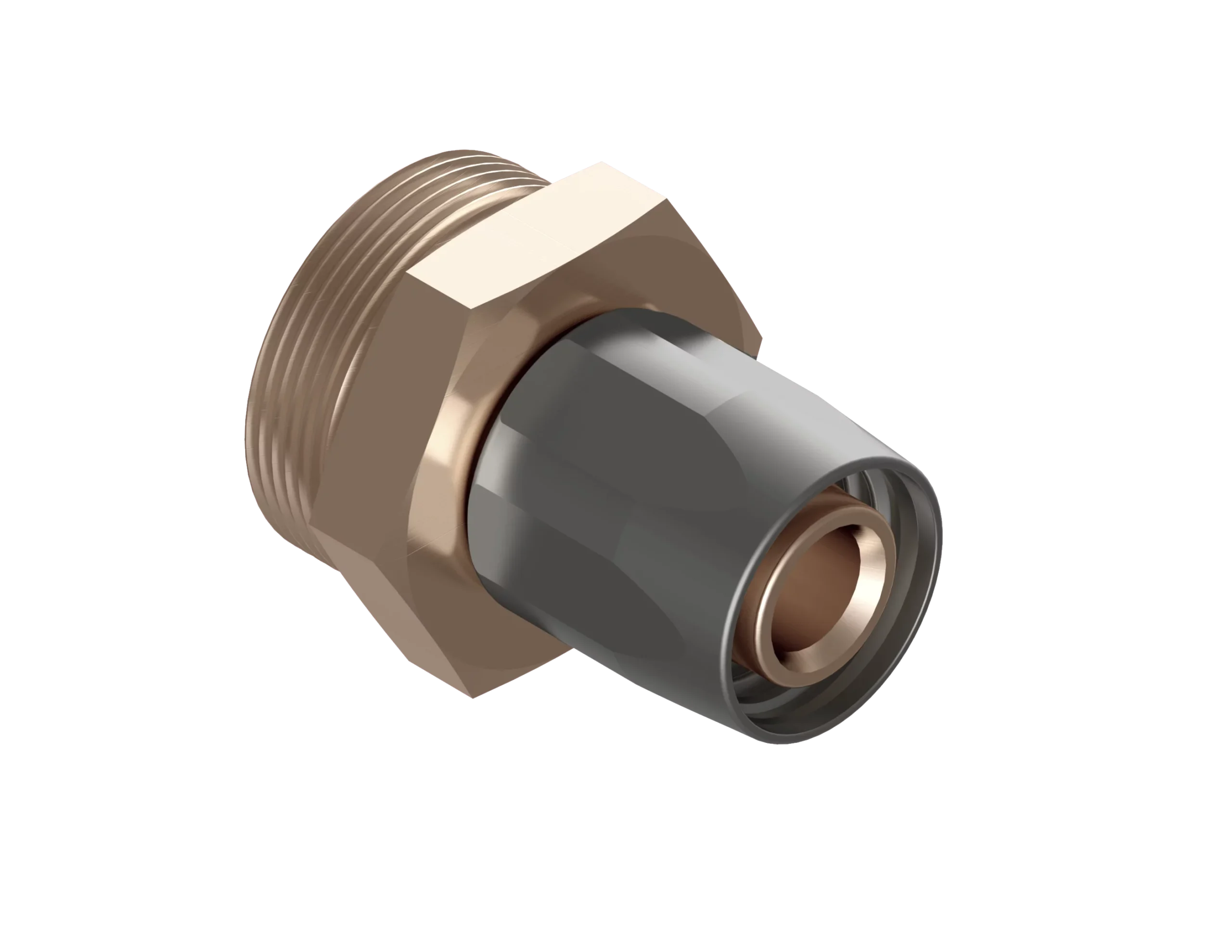

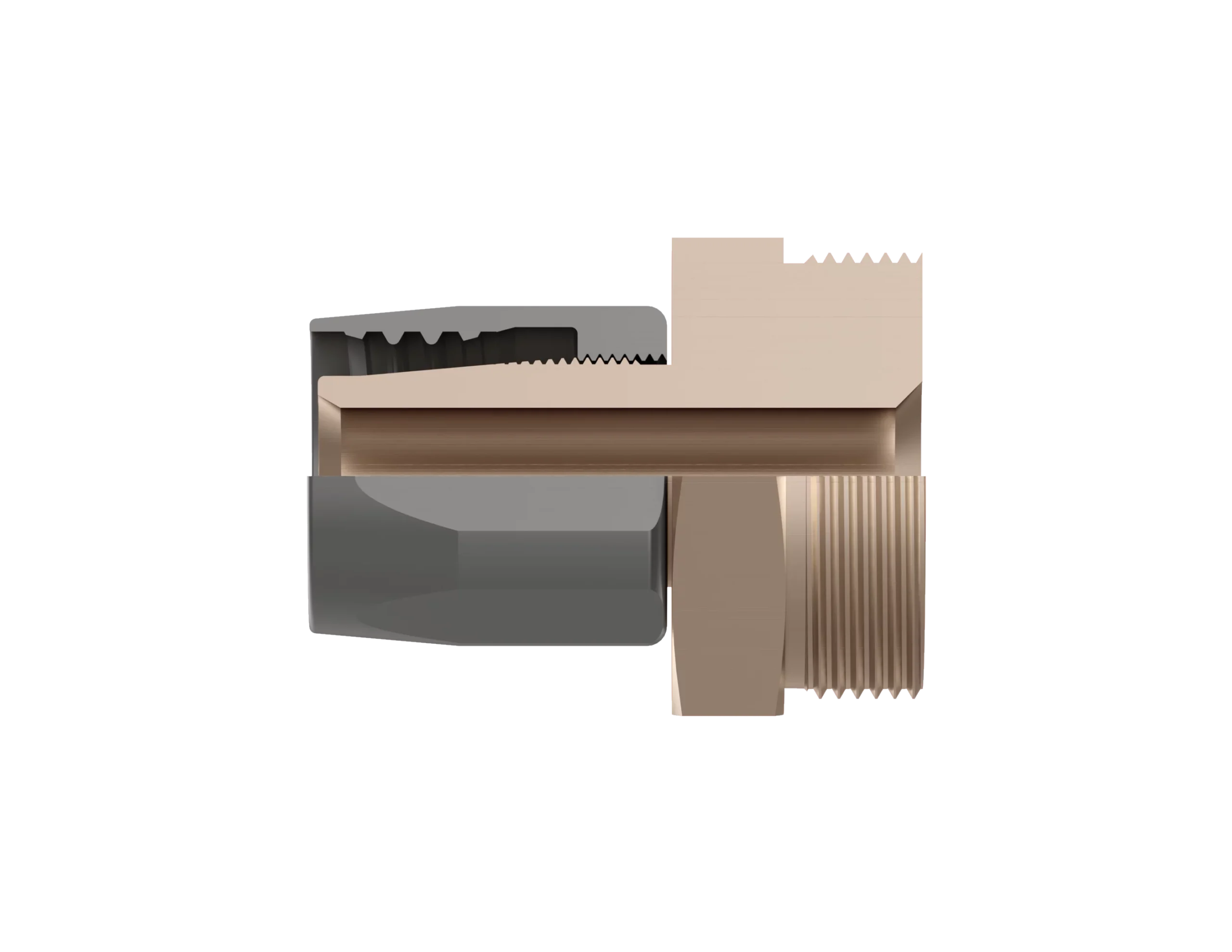

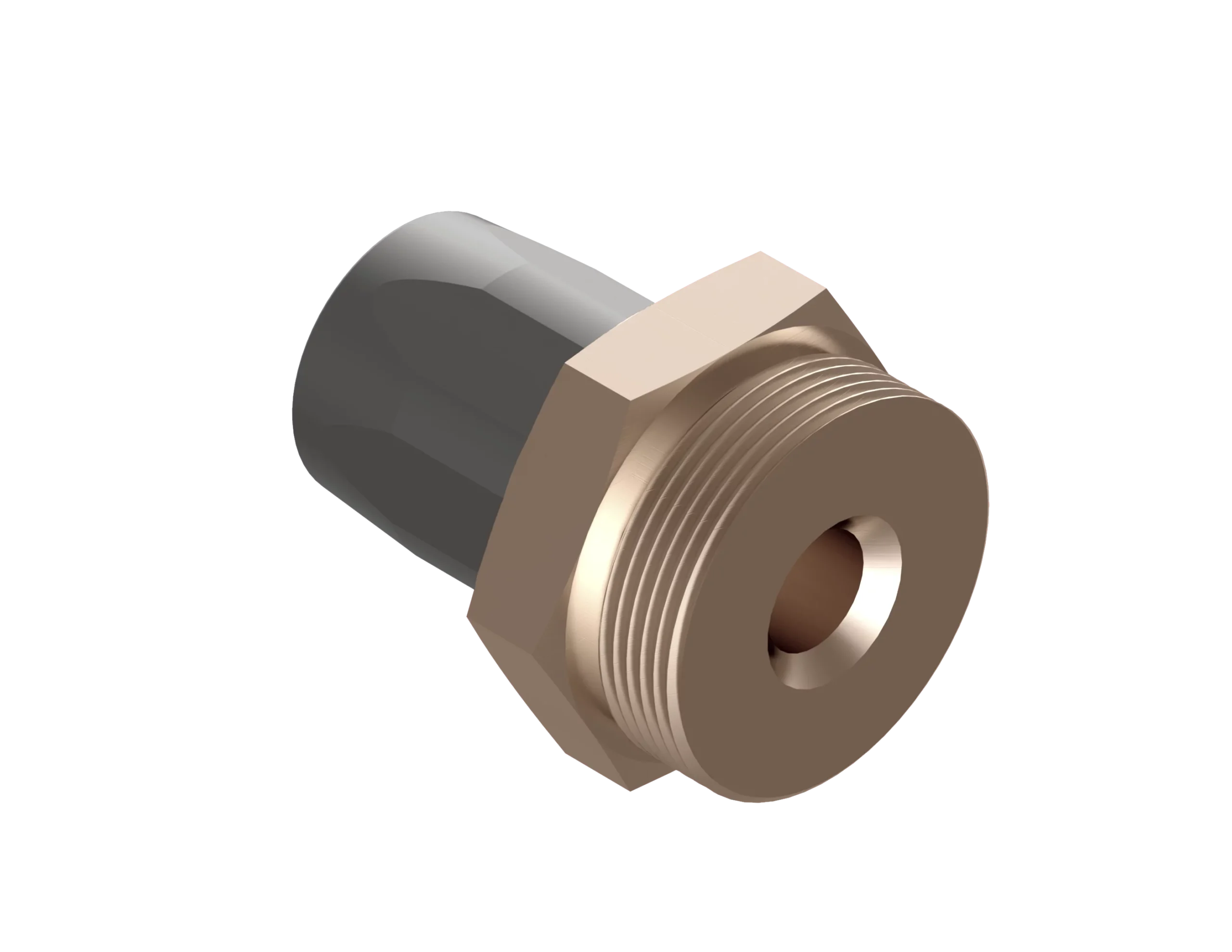

( MIL-DTL-24787/3, Type C, Group VIII, End Fitting - Straight )
Description:
Equal to Hydrasearch P/N 375-190911,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification

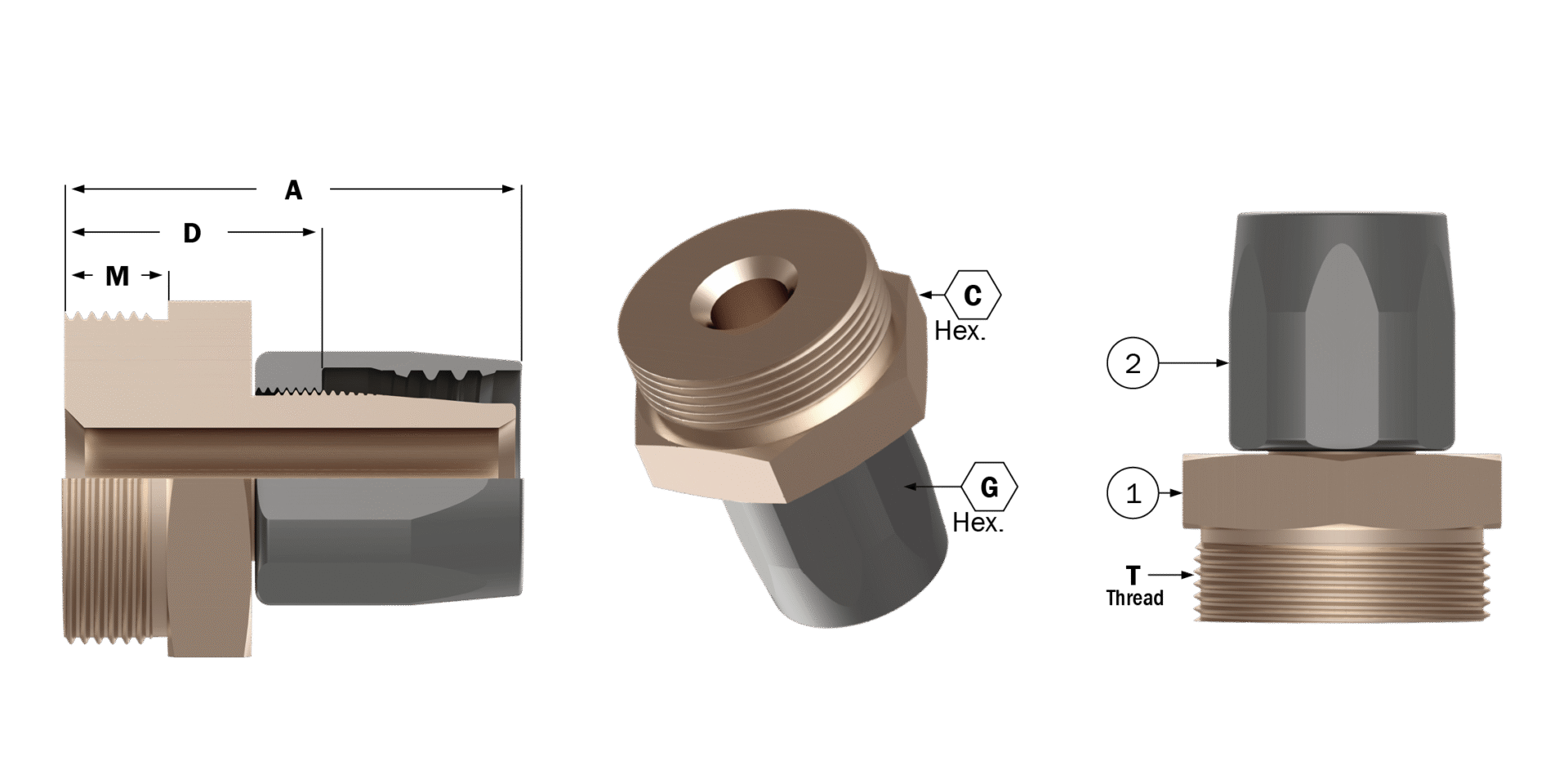

Specification Table
| Part Number | 375-190911-3/4-16 |
|---|---|
| IPS Size | 3/4 |
| T Thread CL-2A | 2”-12 |
| A | 2.80 |
| C | 2.12 |
| D | 1.53 |
| G | 1.44 |
| M | .62 |
| Est. Wt. (lbs.) | 1.54 |
Components Table
| Description | Req’d per Ass’y | Base No. | 3/4-16 | 1-20 | 1.25-24 | 1.5-32 | Material |
| Nipple | 1 | 188-220779- | 3/4-16 | 1-20 | 1.25-24 | 1.5-32 | Aluminum. Bronze |
| Socket | 1 | 4-1212- | 16 | 20 | 24 | 32 | Monel |
