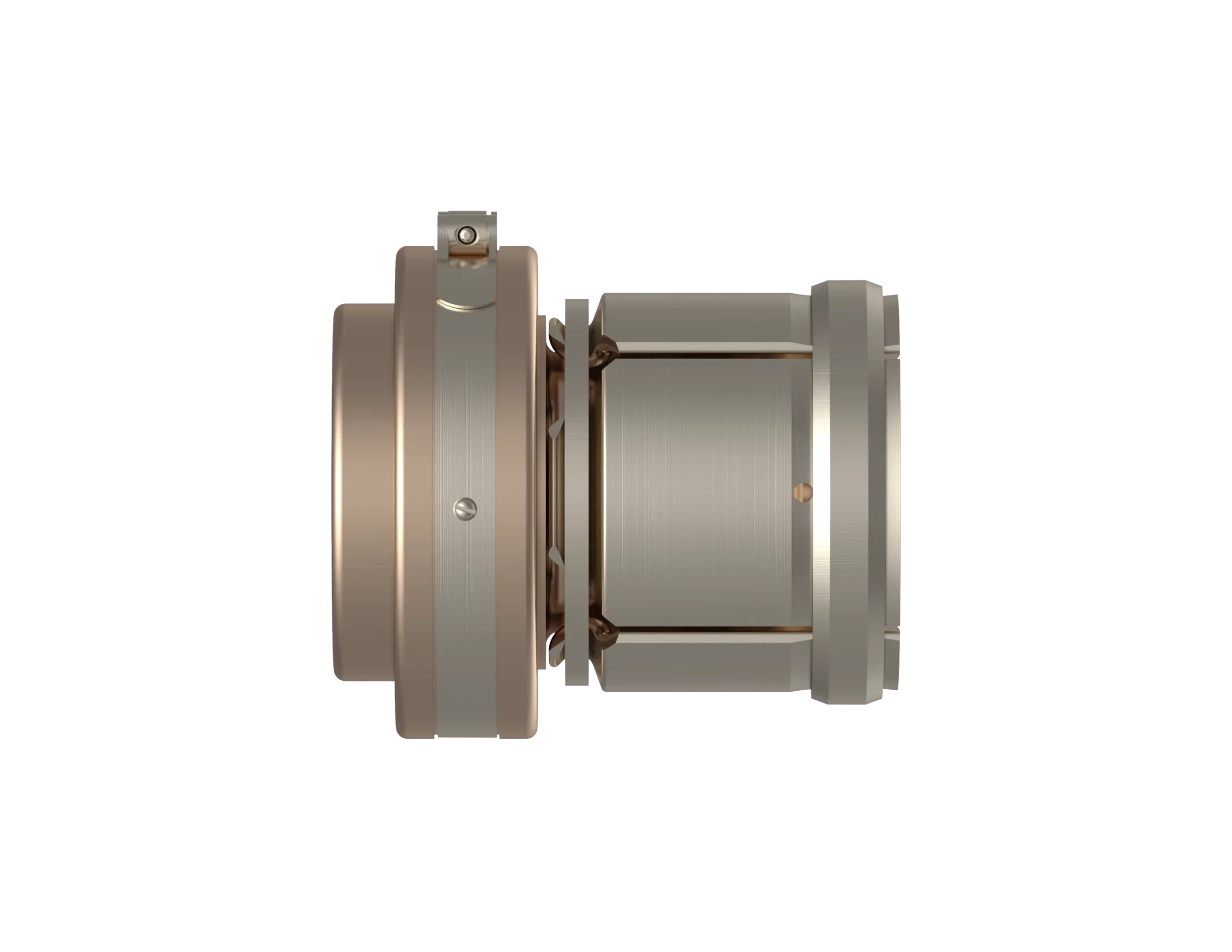

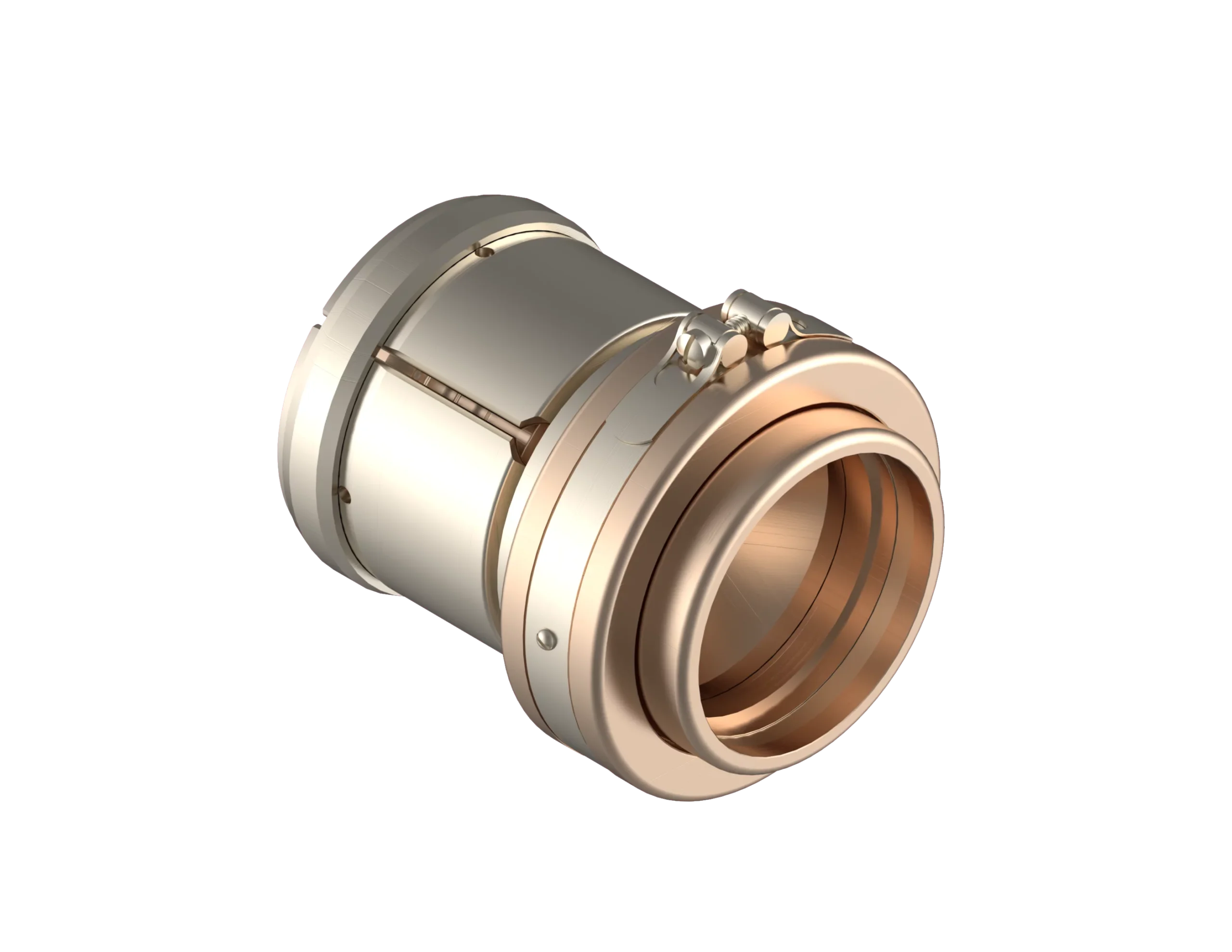

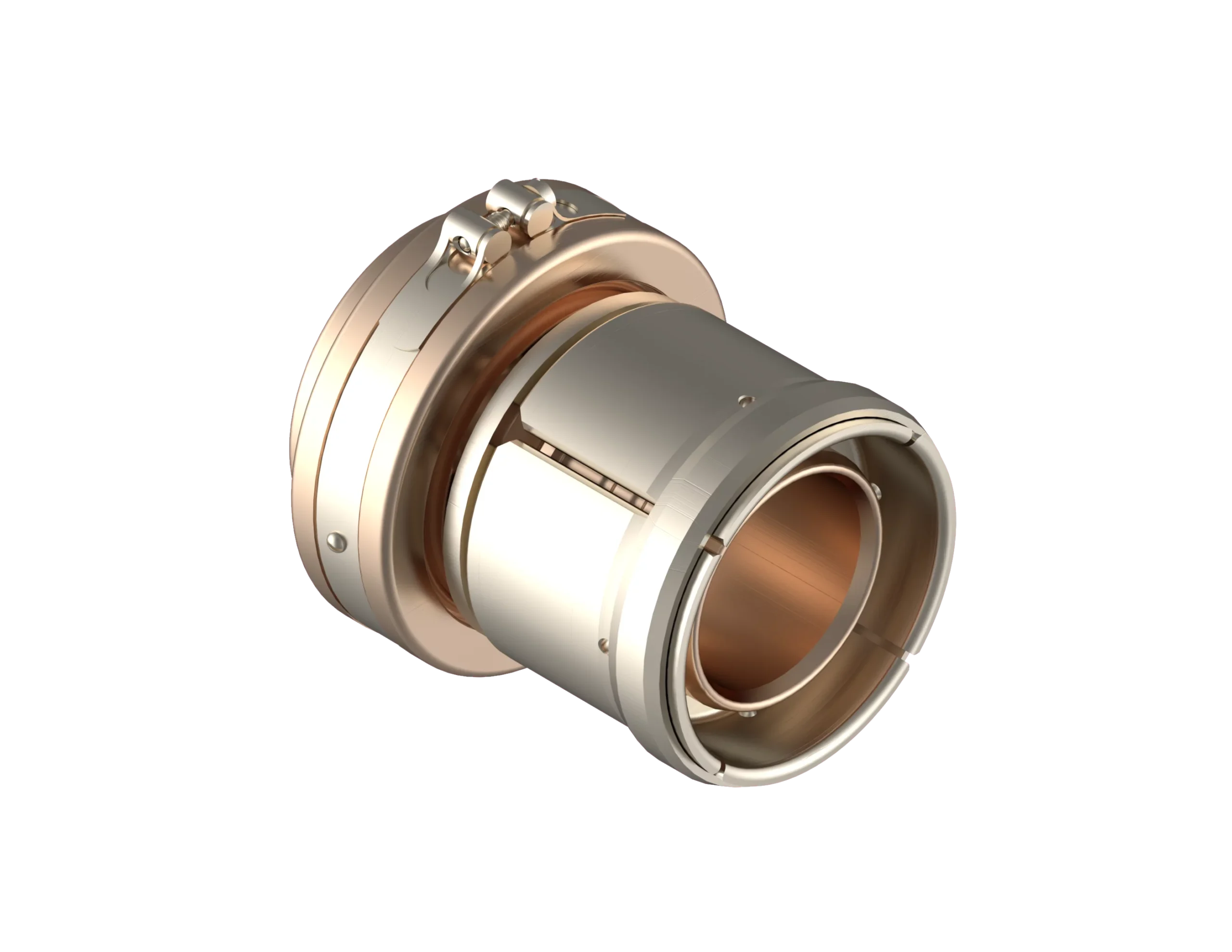

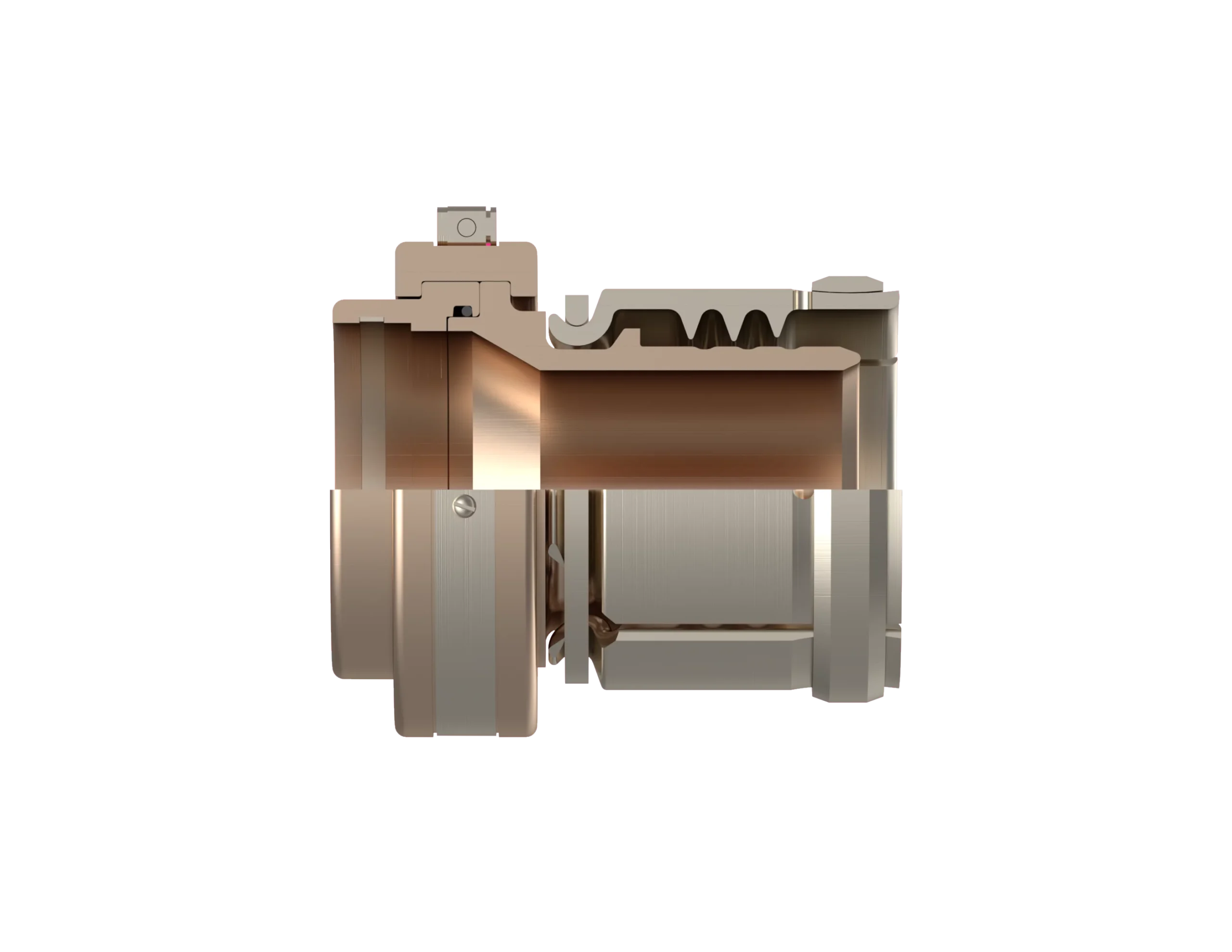

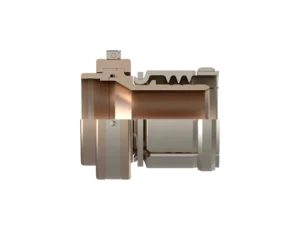

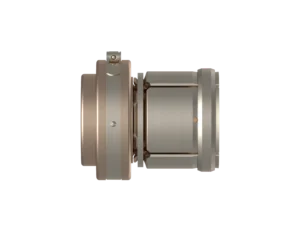

( MIL-DTL-24787/4, Type E, Group IV , End Fitting - Straight )

Description:

Equal to Hydrasearch P/N 375-190781 & FC9073-375,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: 375-190781-56-64
  • IPS Size: 3.5
  • A: 3.16
  • B: 2.47
  • C: 3.69
  • D: .88
  • E: .39
  • F: 5.56
  • G: 4.00
  • H: 3.45
  • K: 5.44
  • M: 3.35
  • Est. Wt. (lbs.): 14.48

Specification Table

Part Number375-190781-56-64
IPS Size3.5
A3.16
B2.47
C3.69
D.88
E.39
F5.56
G4.00
H3.45
K5.44
M3.35
Est. Wt. (lbs.)14.48

Components Table

DescriptionReq’d per Ass’yBase No.32-4040-484856-6464Material
Tailpiece1 188-500063- FF5001-188-- 32- 4048 -56 -64 -Aluminum. Bronze
Nipple1 188-1239-32-4040-4848-4856-6464-64 Aluminum. Bronze
Clamp Assy.1 900758-22.5 33.54Aluminum. Bronze
Socket Assy.1 4-1205- 4048486464Monel
Ring1 4-21004-4048486464Monel
Grip Segment44-1205-1-4048486464Monel
Band1 4-21023-4048486464Monel
