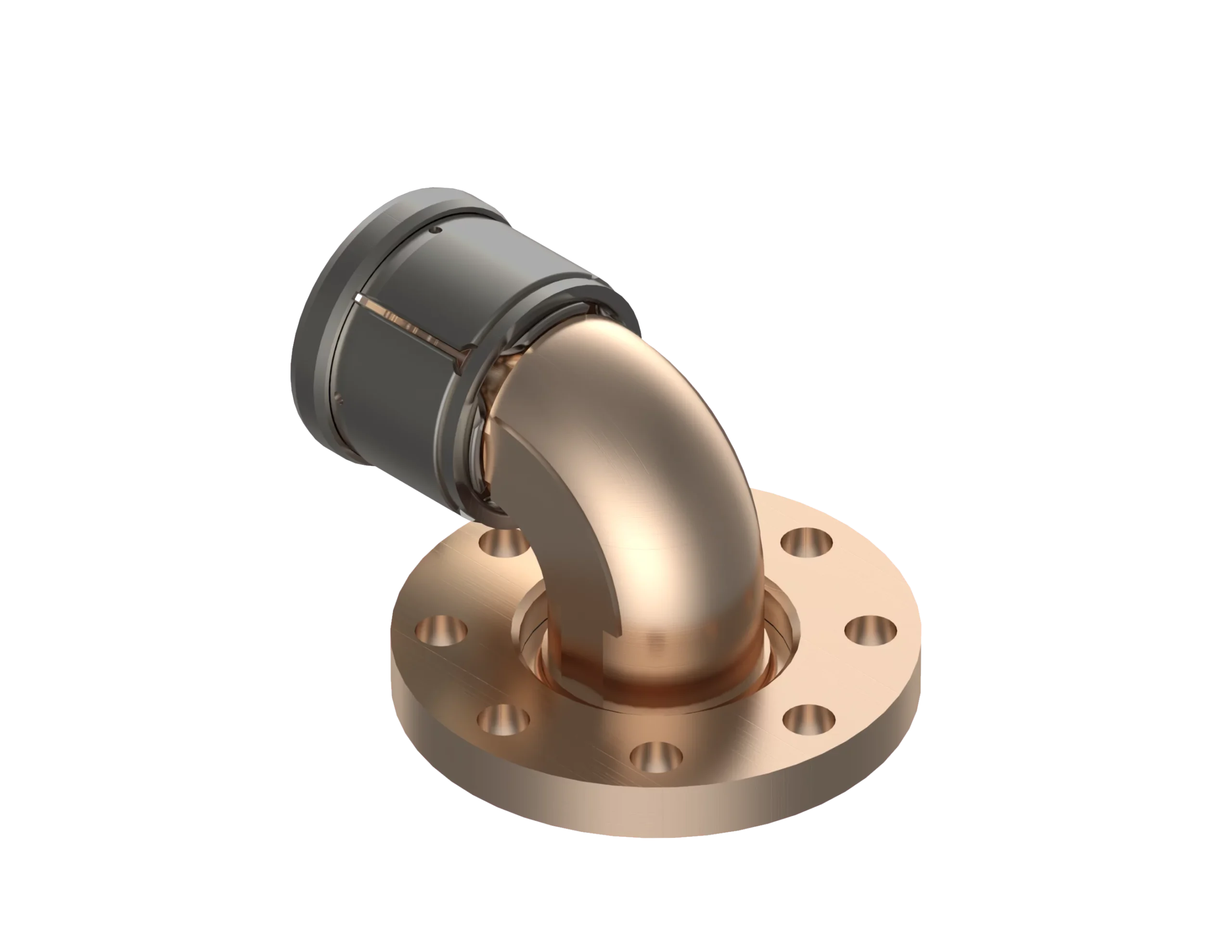

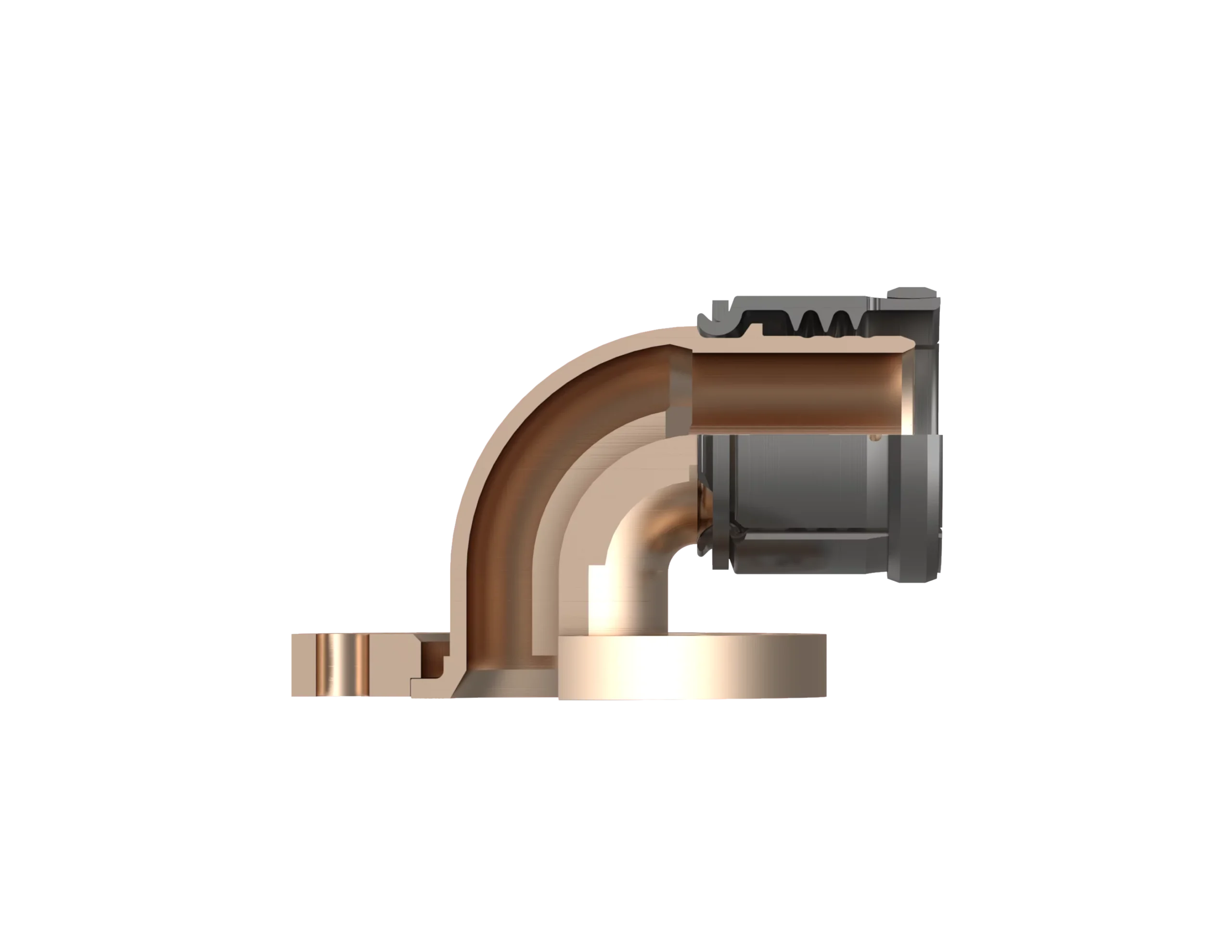

( MIL-DTL-24787/1, Type FL, Group IV, Class V, 150lb, End Fitting - 90° )

Description:

Equal to Hydrasearch P/N 375-190769,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: 375-190769-40-48
  • IPS Size: 2.5
  • No. of Bolt Holes: 4
  • A: 5.96
  • D: 3.08
  • E: 2.50
  • F: 3.50
  • H: 4.00
  • J: 7.00
  • K: 3.78
  • L: 5.50
  • M: .75
  • N: .50
  • Q: 4.50
  • R: 2.09
  • S: 2.71
  • V: 3.69
  • Est. Wt. (lbs.): 13.43

Specification Table

Part Number375-190769-40-48
IPS Size2.5
No. of Bolt Holes4
A5.96
D3.08
E2.50
F3.50
H4.00
J7.00
K3.78
L5.50
M.75
N.50
Q4.50
R2.09
S2.71
V3.69
Est. Wt. (lbs.)13.43

Components Table

DescriptionReq’d per Ass’yBase No.32-404040-484856-6464Material
Swivel Flange1188-74021-32-4040-4040-4848-4856-6464-64Aluminum. Bronze
Elbow1188-185212-4040-4040-4848-4856-6464-64Aluminum. Bronze
Socket Assy.14-1205-404048486464Monel
Grip Segment44-1205-1-404048486464Monel
Ring14-21004-404048486464Monel
Band14-21023-404048486464Monel
