375-190124-1-24
375-190124-1-24
Print
Download PDF

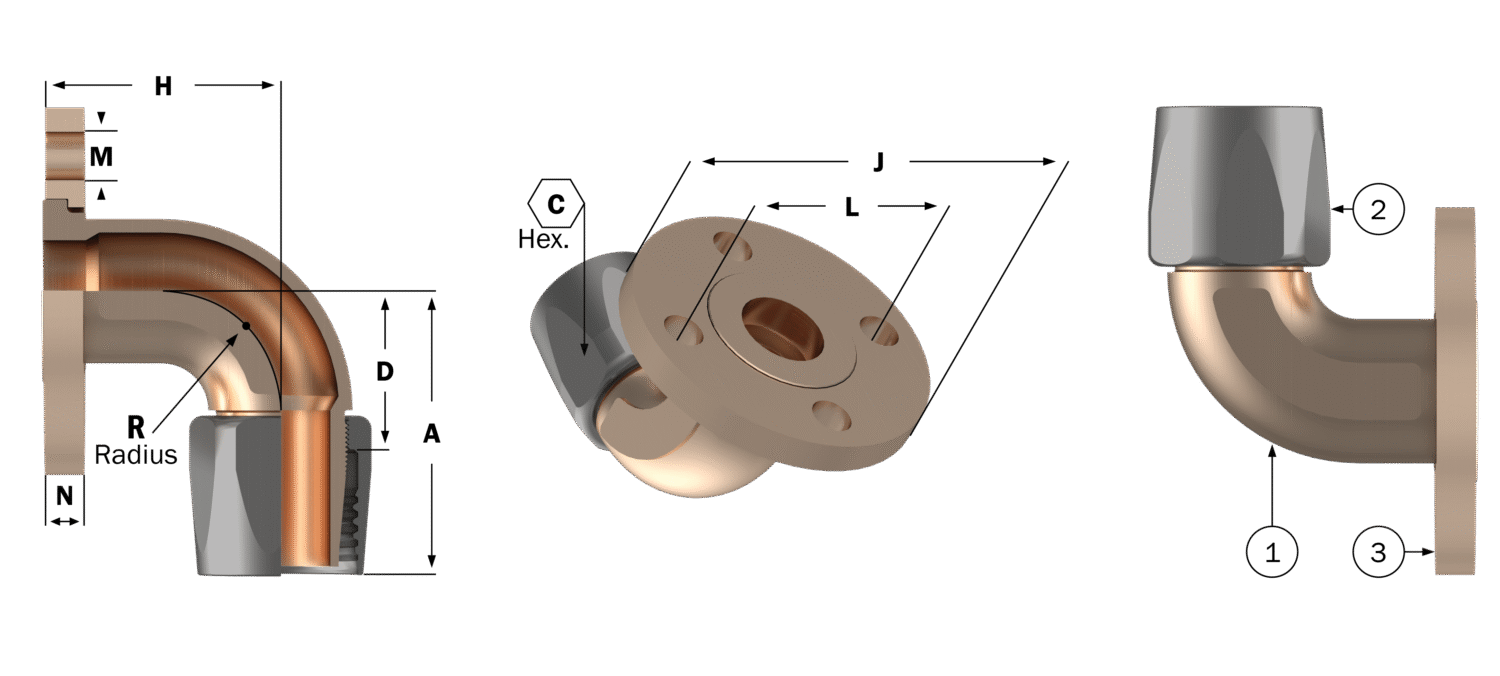

( MIL-DTL-24787/1, Type FL, Group VIII, Class V, 150lb, End Fitting - 90° )
Description:
Equal to Hydrasearch P/N 375-190124,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 375-190124-1-24 |
|---|---|
| IPS Size | 1 |
| No. of Bolt Holes | 4 |
| A | 3.24 |
| C | 1.94 |
| D | 1.78 |
| H | 2.75 |
| J | 4.25 |
| L | 3.12 |
| M | .62 |
| N | .44 |
| R | 1.38 |
| Est. Wt. (lbs.) | 3.22 |
Components Table
| Description | Req’d per Ass’y | Base No. | 1/2-16 | 3/4-20 | 1-24 | 1.25-32 | 1.5-32 | 2-32 | Material |
| Elbow | 1 | 188-185029- | 1/2-16 | 3/4-20 | 1-24 | 1.25-32 | 1.5-32 | 2-32 | Aluminum. Bronze |
| Socket | 1 | 1-1212- | 16 | 20 | 24 | 32 | 32 | 32 | Monel |
| Flange | 1 | 188-74021- | 1/2-16 | 3/4-20 | 1-24 | 1.25-32 | 1.5-32 | 2-32 | Aluminum. Bronze |
