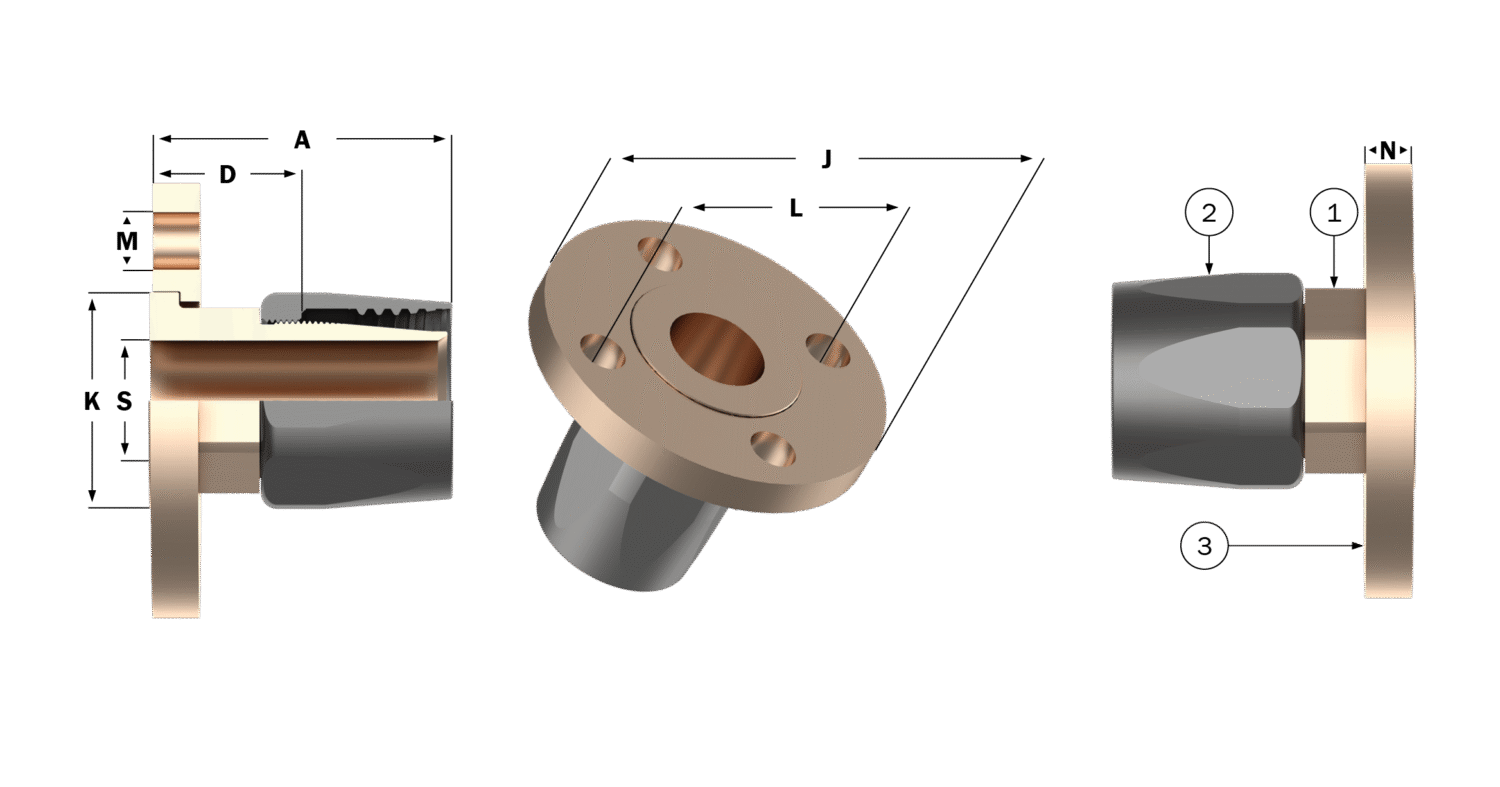

( 150lb, End Fitting - Straight )
Description:
Equal to Hydrasearch P/N 375-190109,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 375-190109-2-32 |
|---|---|
| IPS Size | 2 |
| No. of Bolt Holes | 4 |
| A | 3.51 |
| D | 1.66 |
| J | 6.00 |
| K | 2.74 |
| L | 4.75 |
| M | .75 |
| N | .44 |
| S | 1.77 |
| Est. Wt. (lbs.) | 5.38 |
Components Table
| Description | Req’d per Ass’y | Base No. | 3/4-20 | 1-24 | 1.25-32 | 1.5-32 | 2-32 | Material |
| Nipple | 1 | 188-185109- | 3/4-20 | 1-24 | 1.25-32 | 1.5-32 | 2-32 | Aluminum. Bronze |
| Socket | 1 | 4-1212- | 20 | 24 | 32 | 32 | 32 | Monel |
| Flange | 1 | 188-74021- | 3/4-20 | 1-24 | 1.25-32 | 1.5-32 | 2-32 | Aluminum. Bronze |
