375-190093-24
375-190093-24
Print
Download PDF

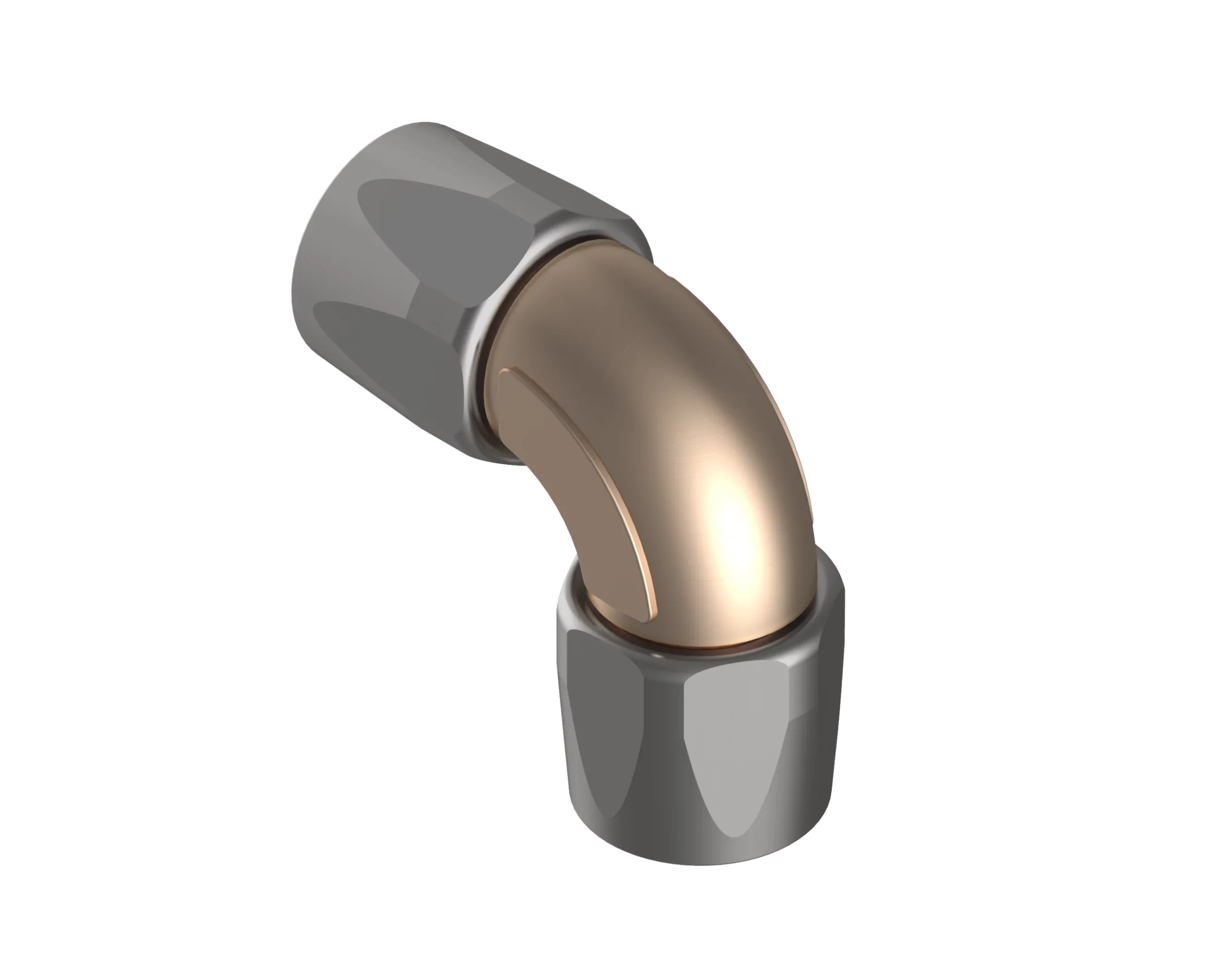

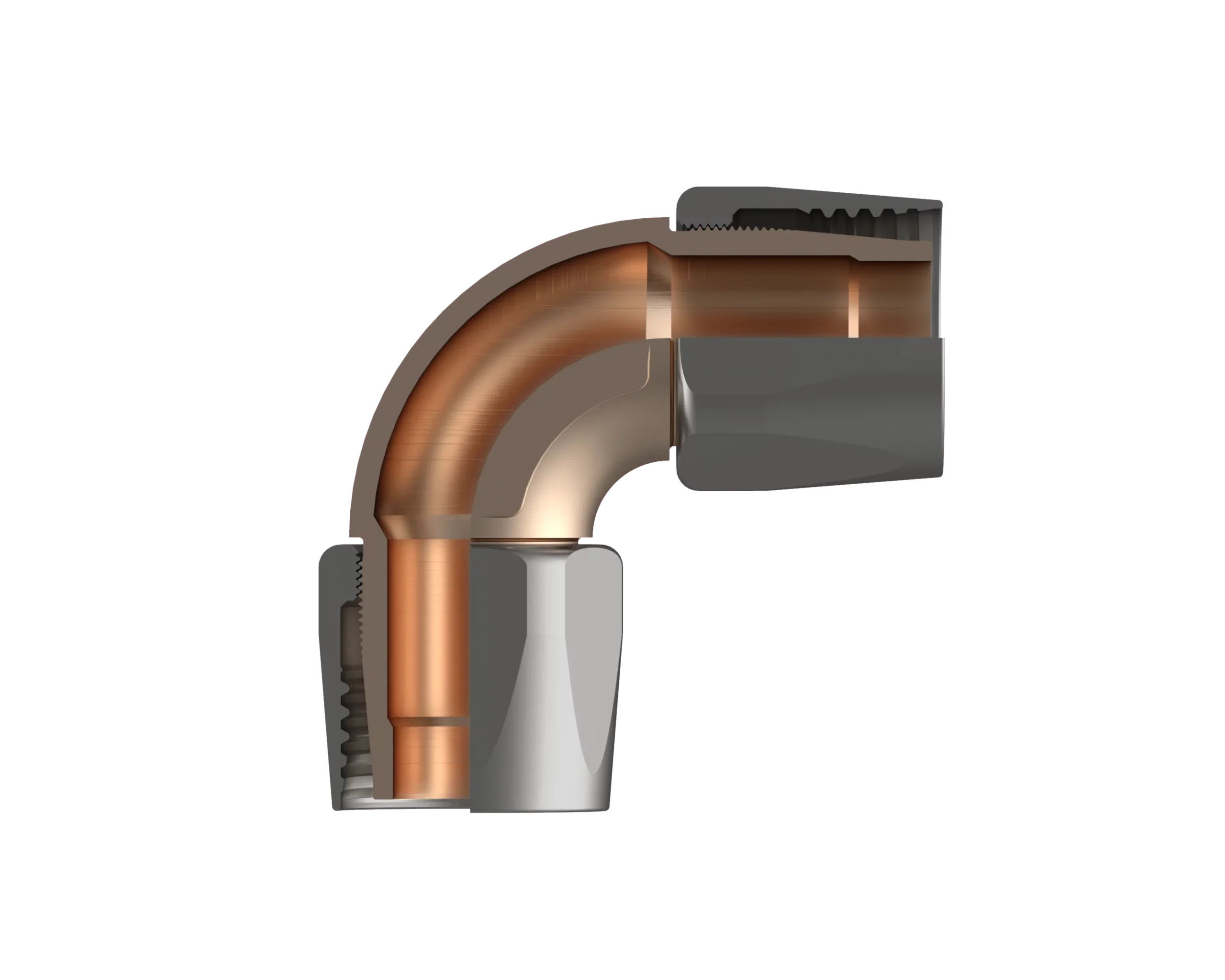

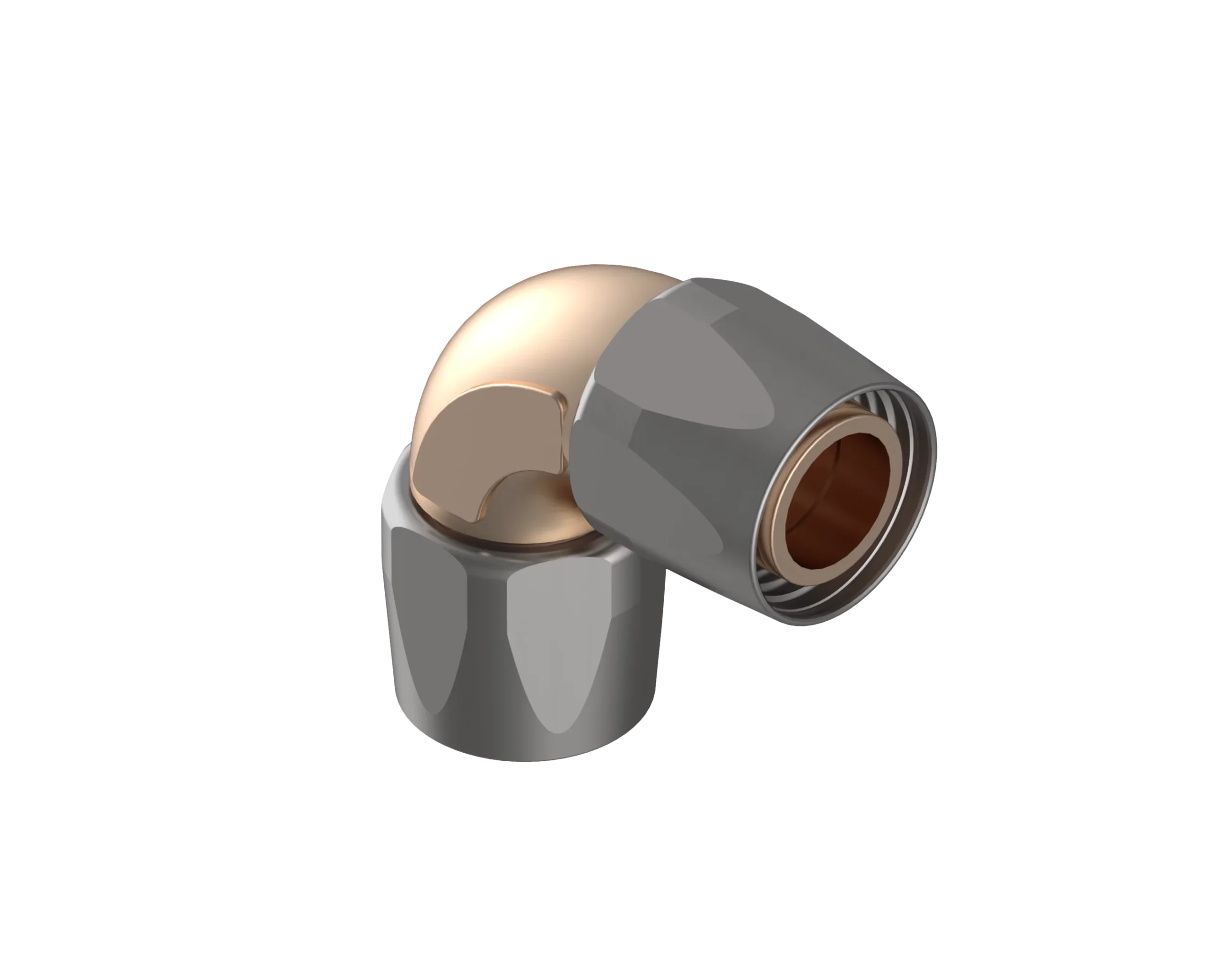

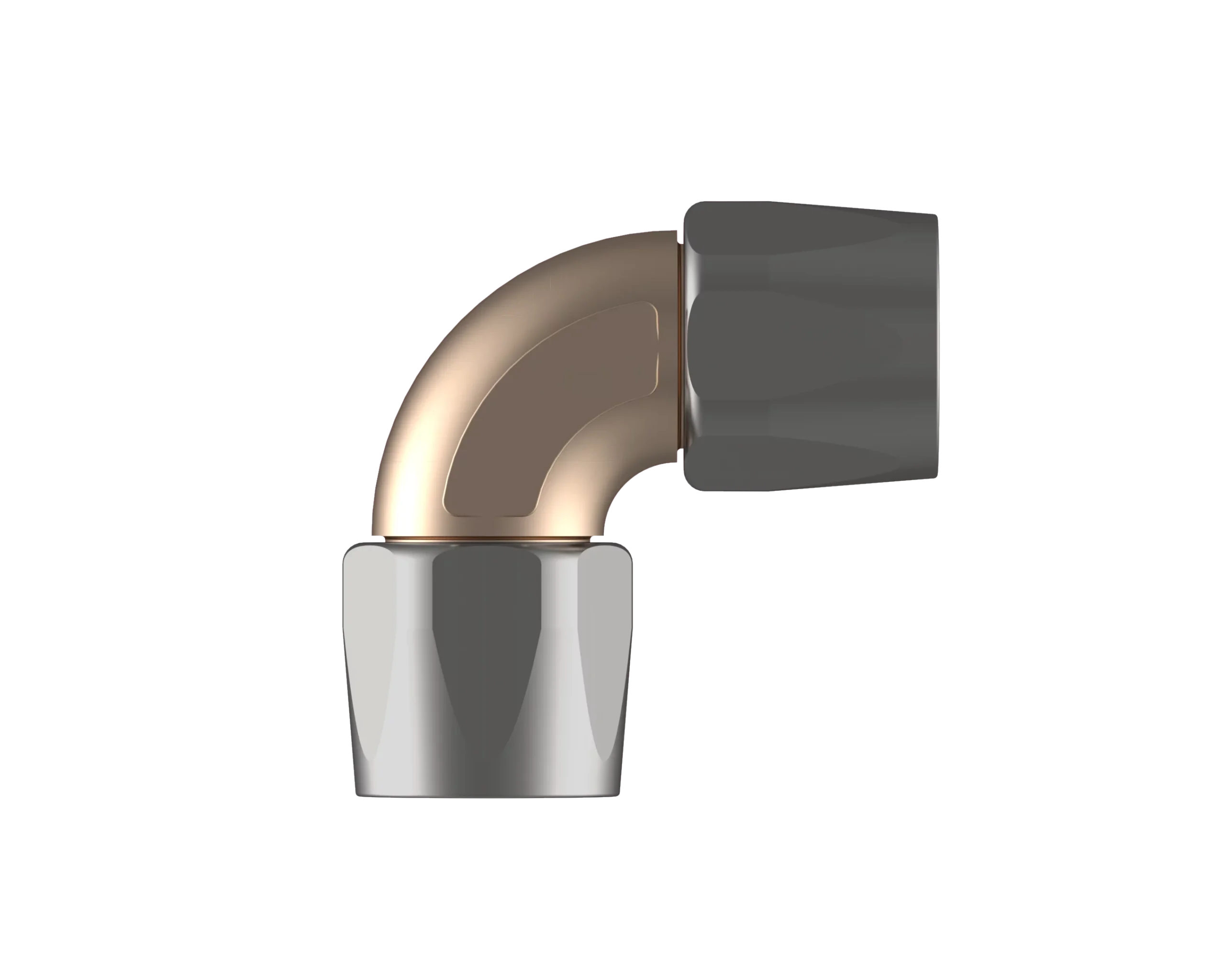

( MIL-DTL-24787/5, Type D, Group VIII, Elbow - 90° Dogleg )
Description:
Equal to Hydrasearch P/N 375-190093,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 375-190093-24 |
|---|---|
| IPS Size | 1.5 |
| A | 3.24 |
| D | 1.78 |
| E | 1.161 |
| G | 1.94 |
| R | 1.38 |
| V | 1.84 |
| X | 1.69 |
| Est. Wt. (lbs.) | 2.30 |
Components Table
| Description | Req’d per Ass’y | Base No. | -16 | -20 | -24 | -32 | -40 | -48 | Material |
| Elbow | 1 | 188-185093 | 16 | 20 | 24 | 32 | 40 | 48 | Aluminum. Bronze |
| Socket | 2 | 4-1212- | 16 | 20 | 24 | 32 | 40 | 48 | Monel |
