247GN8I-6

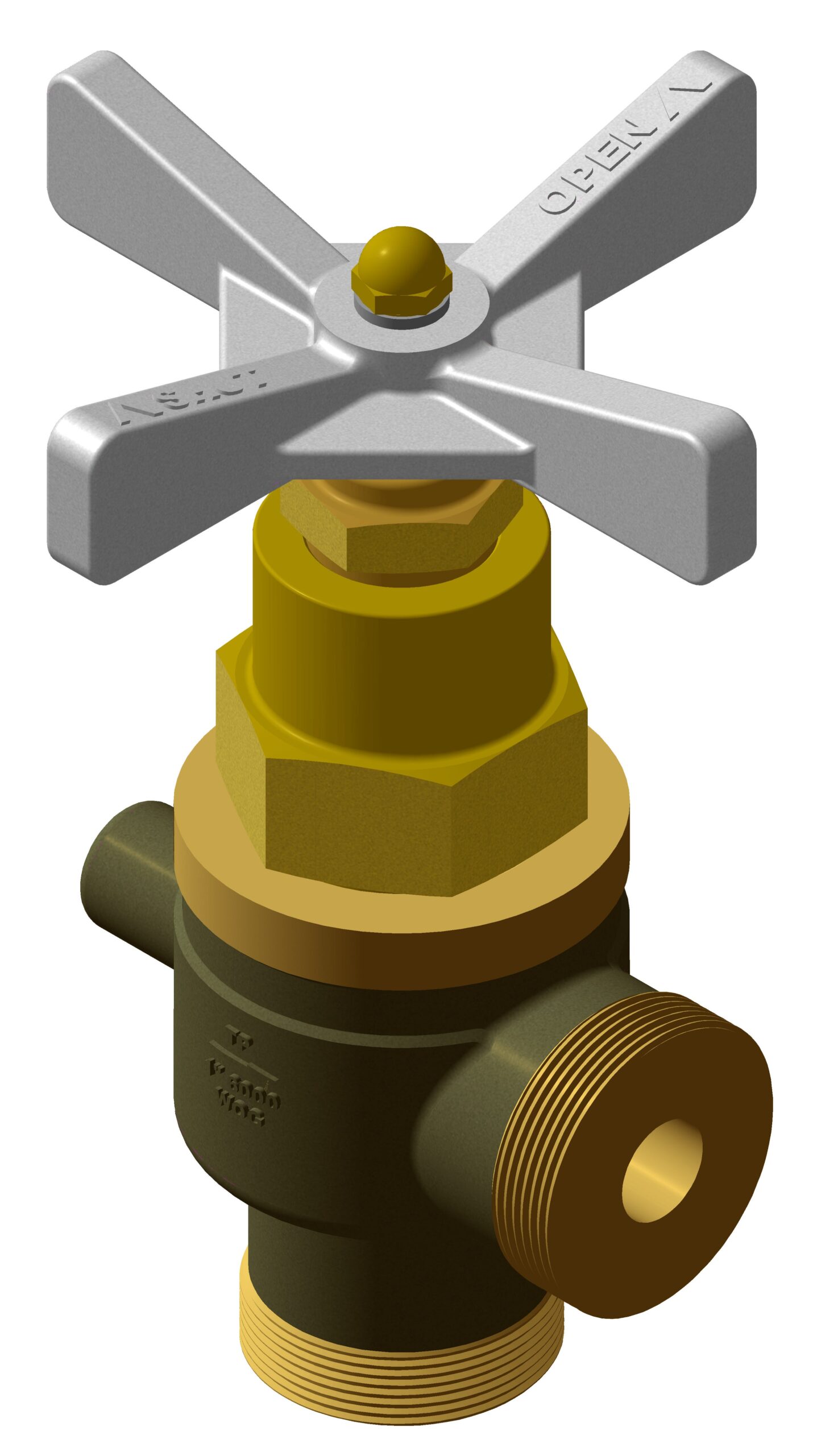

247GN8I-6 – Brass Angle Hose Valve

Print Icon Print Download Icon Download PDF

Specification

  • Approx Dimension B Closed In: 6-29/32''
  • Approx Dimension B Open In: 7-17/32''
  • Approx Dimension D In: 9''
  • C: 3''
  • Material: Bronze Body
  • References: Technical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
  • Thread Size E: 2-3/4"-12''

Specification Table

Approx Dimension B Closed In6-29/32''
Approx Dimension B Open In7-17/32''
Approx Dimension D In9''
C3''
MaterialBronze Body
ReferencesTechnical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
Thread Size E2-3/4"-12''
