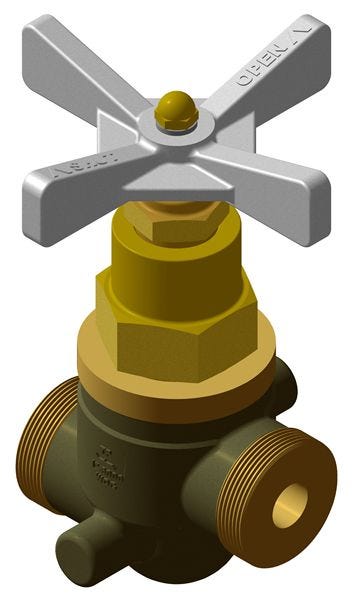

6gp82 whole iso
6gp82 whole iso6gp81-half-side-100x100-1-26gpw70-6gnw70-6gscw70drawing_1-100x100
247GN81-3

247GN81-3 – Brass Angle Hose Valve

Print Icon Print Download Icon Download PDF

Specification

  • Approx Dimension B Closed In: 5-11/16''
  • Approx Dimension B Open In: 6-7/32''
  • Approx Dimension D In: 4-1/2''
  • C: 1-3/4''
  • Material: Bronze Body
  • References: Technical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
  • Thread Size E: 1-3/4"-12''

Specification Table

Approx Dimension B Closed In5-11/16''
Approx Dimension B Open In6-7/32''
Approx Dimension D In4-1/2''
C1-3/4''
MaterialBronze Body
ReferencesTechnical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
Thread Size E1-3/4"-12''
