23-411-20
23-411-20
Print
Download PDF

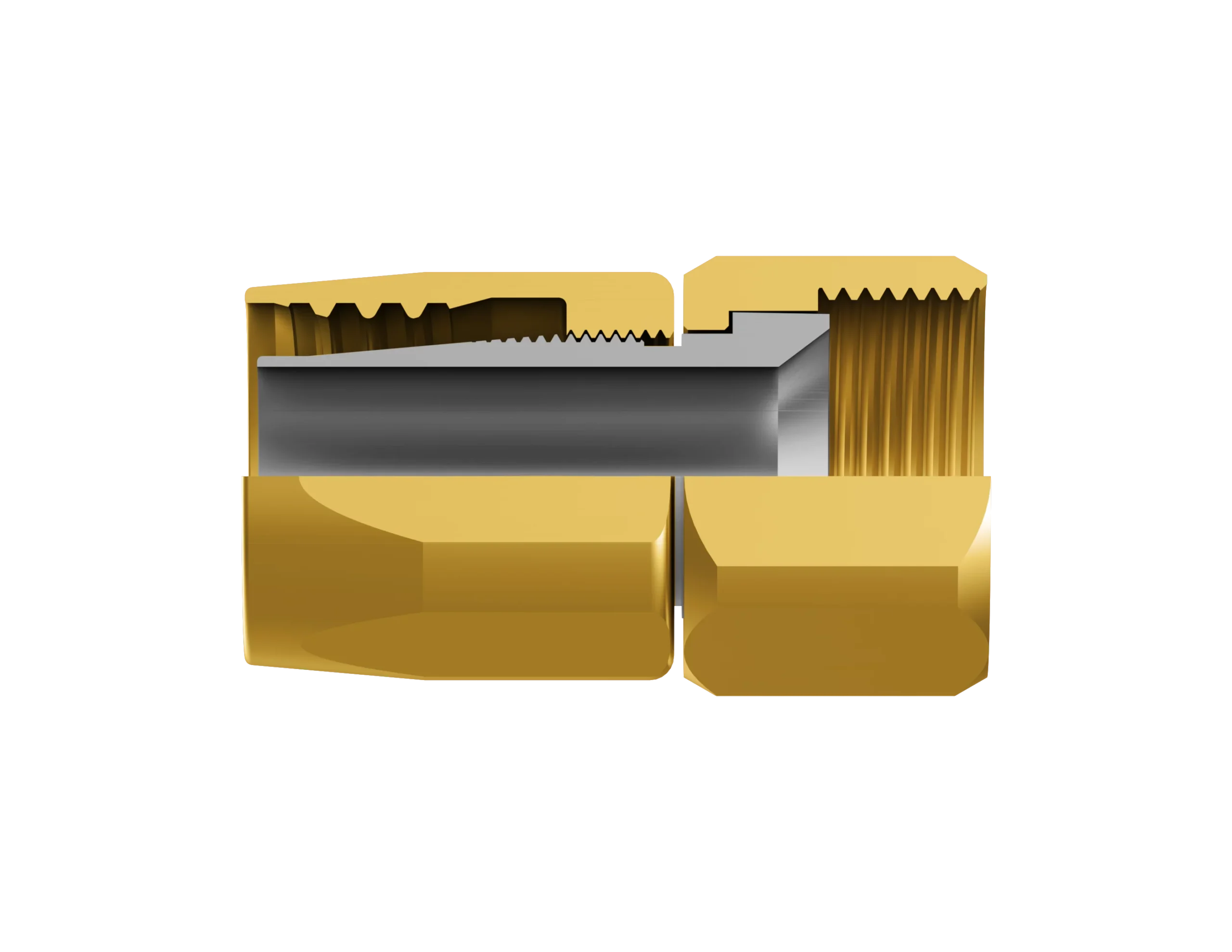

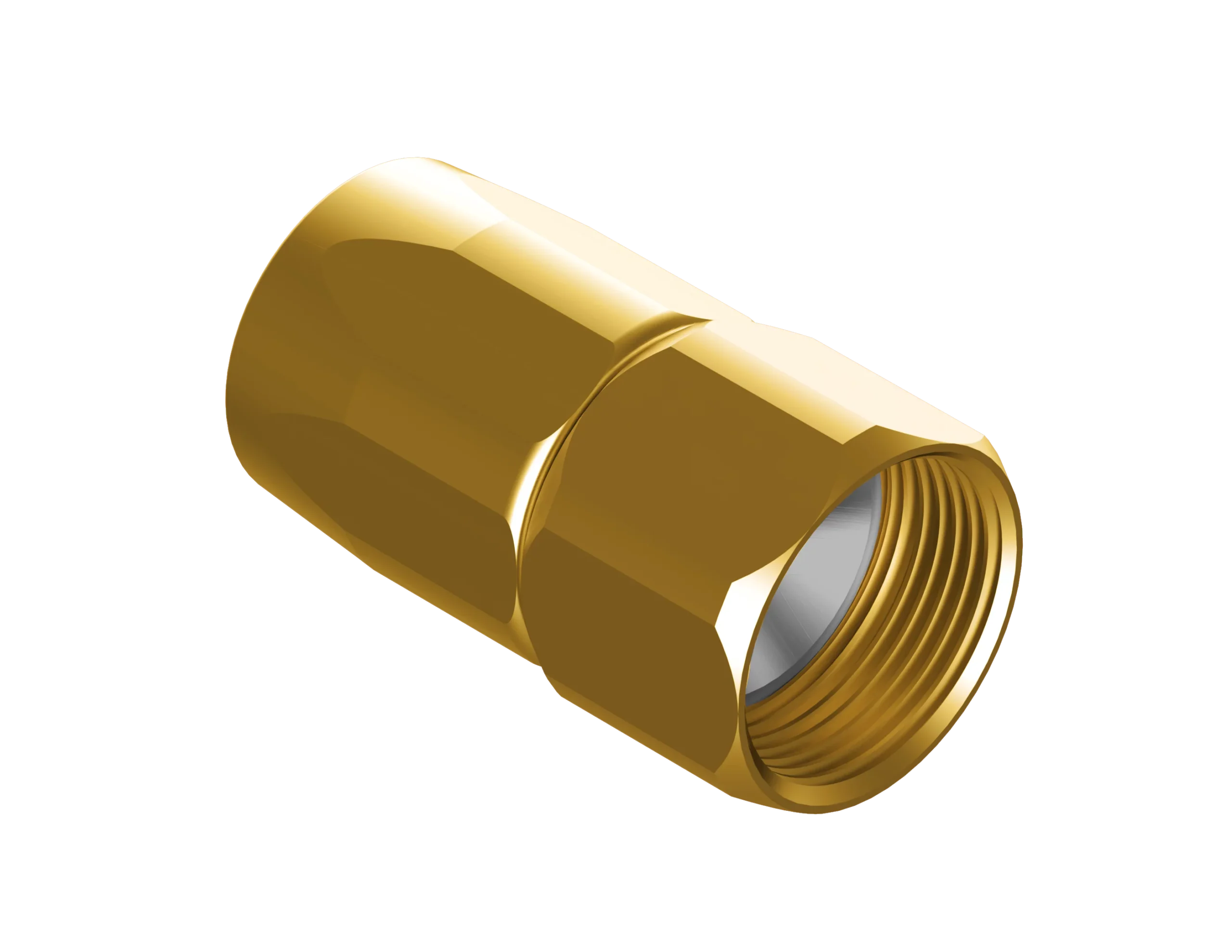

( End Fitting - Straight )
Description:
Equal to Hydrasearch P/N 23-411,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 23-411-20 |
|---|---|
| Hose Size | 1.25 |
| T Thread CL-2A | 1-5/8”-12 |
| A | - |
| B | - |
| C | - |
| D | - |
| E | - |
| G | - |
| M | - |
| V | - |
| Est. Wt. (lbs.) | 1.30 |
Components Table
| Description | Req’d per Ass’y | Base No. | -16 | -20 | -24 | -32 | Material |
| Nipple | 1 | 4-1251- | 16 | 20 | 24 | 32 | Monel |
| Socket | 1 | - | 16 | 20 | 24 | 32 | Brass |
| Nut | 1 | - | 16 | 20 | 24 | 32 | Brass |
