181-00001-10D – Low Pressure Connector Sockets

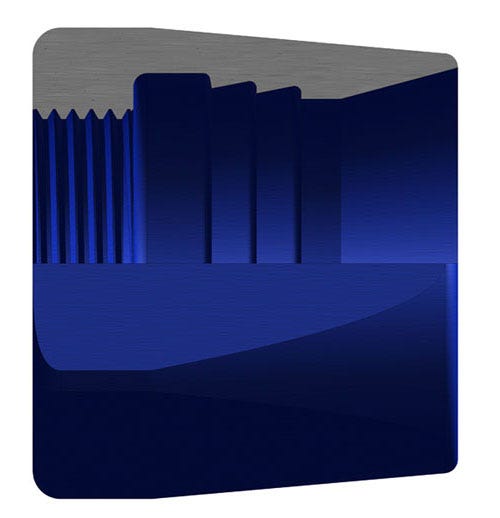

181-00001-10D – Low Pressure Connector Socketslowpressurecomponent-socket181-00001-10d-cutside
181-00001-10D

181-00001-10D – Low Pressure Connector Sockets

Print Icon Print Download Icon Download PDF

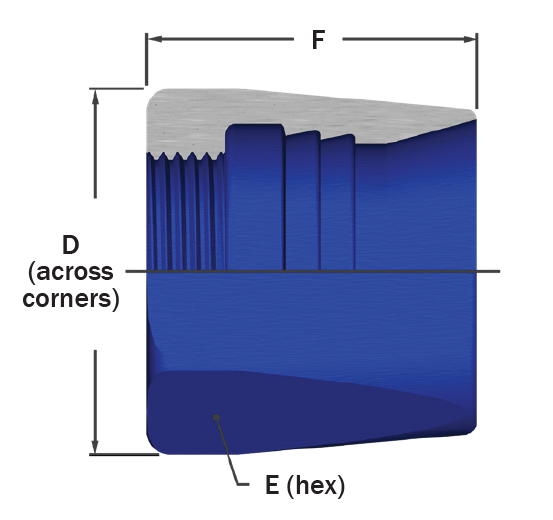

Specification

  • D: '1.053
  • E: '0.938
  • F: '0.950
  • Size in: '10
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Colors May Vary Due To Current Mil-S

Specification Table

D'1.053
E'0.938
F'0.950
Size in'10
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Colors May Vary Due To Current Mil-S
