181-00001-08D

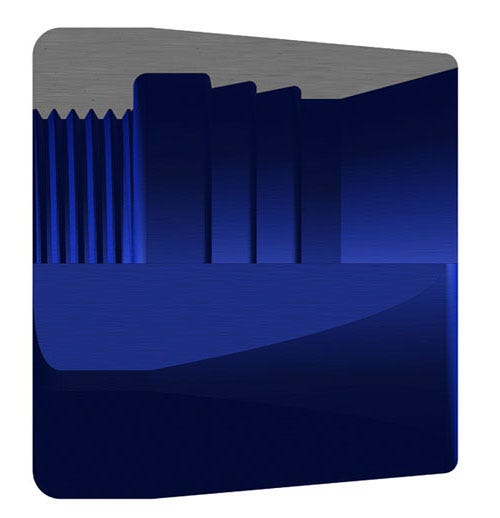

181-00001-08D – Low Pressure Connector Sockets

Print Icon Print Download Icon Download PDF

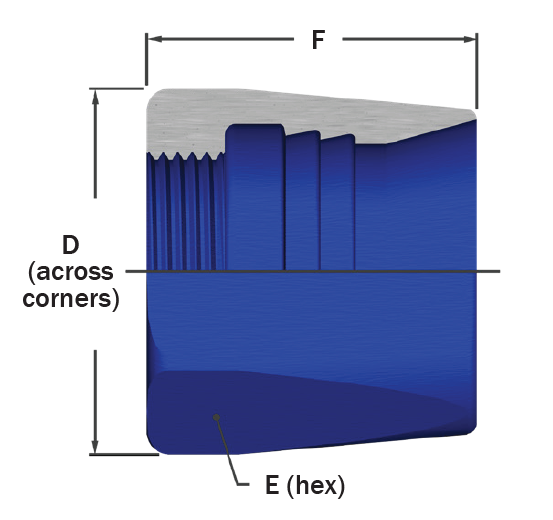

Specification

  • D: 0.983''
  • E: 0.875''
  • F: 0.800''
  • Size in: -08''
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Colors May Vary Due To Current Mil-S

Specification Table

D0.983''
E0.875''
F0.800''
Size in-08''
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Colors May Vary Due To Current Mil-S
